CAN 1 to CAN 4, D-Sub 9-pin

A CAN bus is connected to a 9-pin D-Sub port.
The assignment of the CAN pins relies upon the used CAN
transceiver module:
Transceiver Module
PCAN-Transceiver
TJA1041 (default)
PCAN-Transceiver
PCA82C251
PCAN-Transceiver
MAX3057-ISO
PCAN-Transceiver
TH8056
PCAN-Transceiver
TJA1055

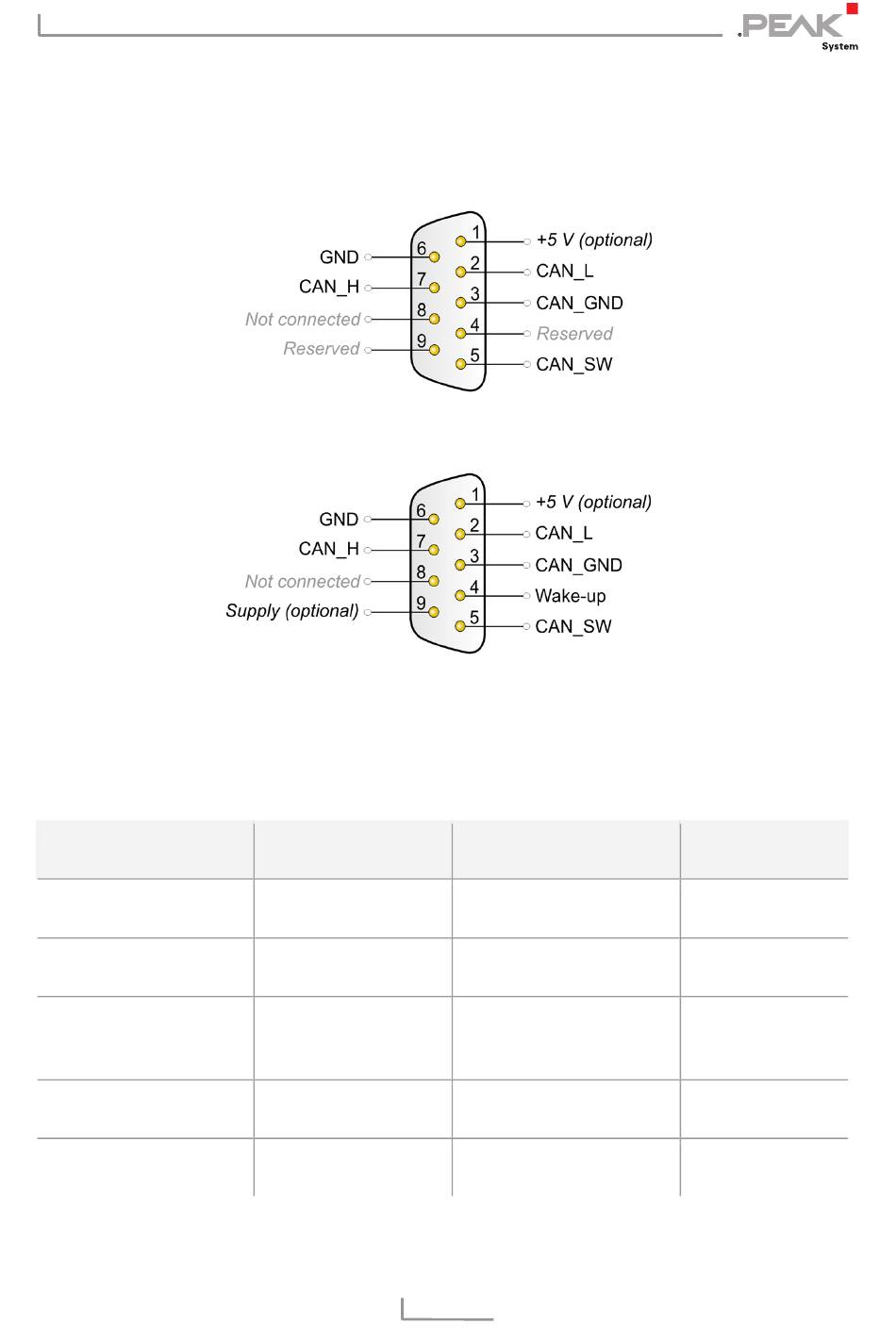

Pin assignment of the ports CAN 1 and CAN 2
Pin assignment of the ports CAN 3 and CAN 4
Transmission
Standard
High-speed CAN
ISO 11898-2
High-speed CAN
ISO 11898-2
High-speed CAN
ISO 11898-2
Single-wire CAN
SAE J2411
Low-speed CAN
ISO 11898-3
Special Function
Wake-up via CAN
none
Galvanic isolation of
the CAN connection
up to 300 V
Wake-up via CAN
Wake-up via CAN
10
Used CAN
Lines
CAN_L, CAN_H
CAN_L, CAN_H
CAN_L, CAN_H
CAN_SW
CAN_L, CAN_H
