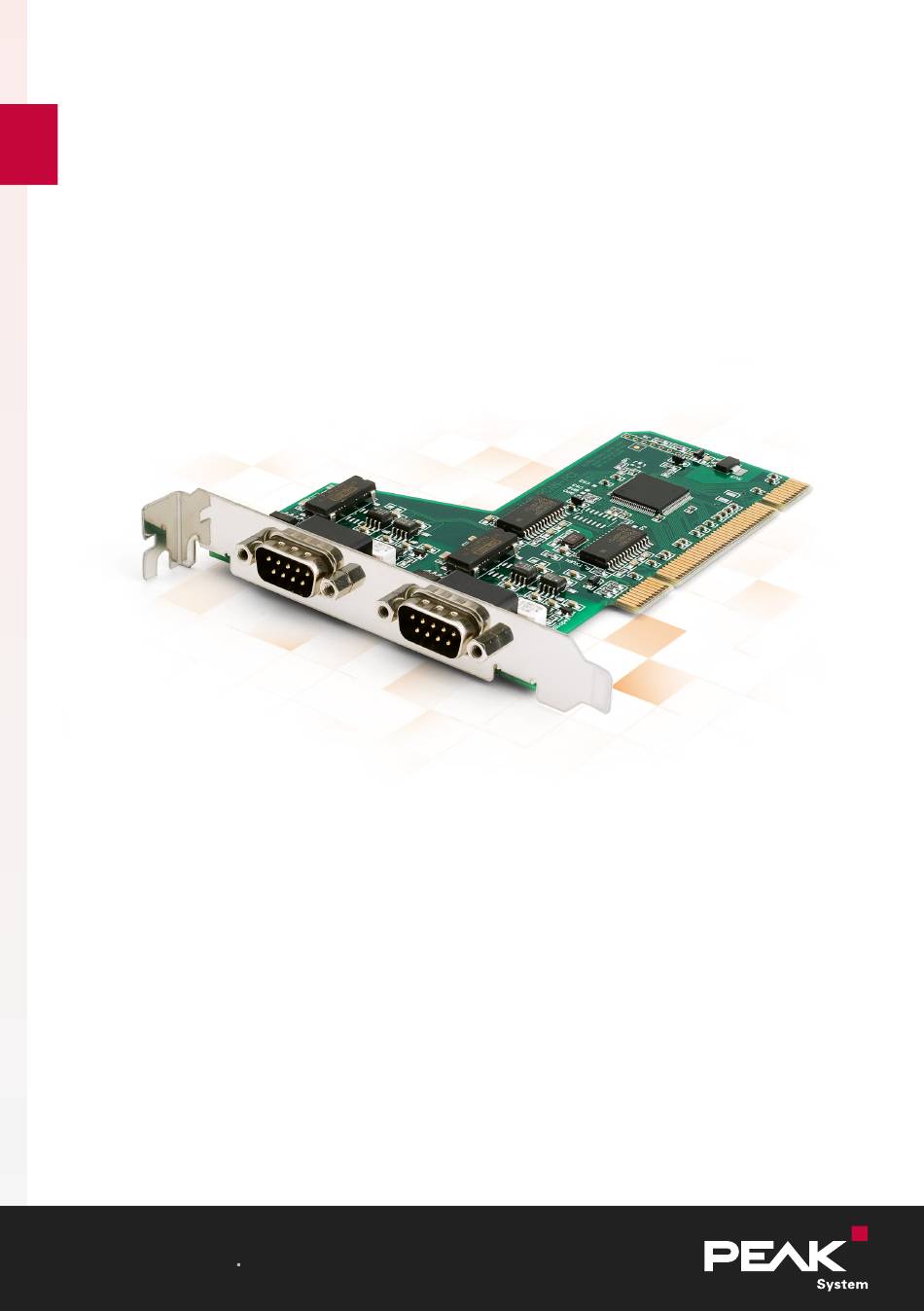

PCAN-PCI
User Manual
User Manual 3.1.0 © 2023 PEAK-System Technik GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCAN-PCI and is the answer not in the manual?

Questions and answers

Related Manuals for Peak PCAN-PCI

Summary of Contents for Peak PCAN-PCI

  • Page 1 PCAN-PCI User Manual User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 2: Imprint

    Imprint PCAN is a registered trademark of PEAK-System Technik GmbH. CiA® is a registered community trade mark of CAN in Automation e.V. All other product names in this document may be the trademarks or registered trademarks of their respective companies.

  • Page 3: Table Of Contents

    1.3 Scope of Supply 2 Setting 2.1 Voltage Supply of External Devices 3 Installation 3.1 Install Device Driver Setup 3.2 Installing the PCAN-PCI card 3.3 Check Operational Readiness 4 Connecting the CAN Bus 4.1 Connection over D-Sub connector 4.2 Cabling 4.3 Example Application under Windows...
  • Page 4 7 Technical Specifications Appendix A CE Certificate Appendix B UKCA Certificate Appendix C Dimension Drawing Appendix D Quick Reference Appendix E Linux Appendix F Disposal Contents PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 5: Introduction

    Introduction The plug-in card PCAN-PCI enables the connection of a PC with PCI slots to CAN networks. The card is available as a single or dual channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 500 V between the PC and the CAN sides.

  • Page 6: Properties At A Glance

    Galvanic isolation on the CAN connection up to 500 V, separate for each ■ CAN channel (only for IPEH-002066 and IPEH-002067) Extended operating temperature range from -40 to +85 °C (-40 to +185 °F) ■ 1   Introduction PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 7: System Requirements

    CAN monitor PCAN-View for Windows ■ Programming interface PCAN-Basic for developing applications with CAN ■ connection Programming interfaces for standardized protocols from the automotive sector ■ Manual in PDF format ■ 1   Introduction PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 8: Setting

    Set the solder bridge(s) corresponding to the desired settings. The following figure shows the solder field positions on the quad channel card. The table below contains the possible settings. 2   Setting PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...
  • Page 9 CAN 2 LJ22 Attention! The voltage supply for external devices is not protected separately. Therefore, turn off the computer before you connect and disconnect CAN cables or peripheral systems. 2   Setting PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 10: Installation

    Installation This chapter covers the software setup for the PCAN-PCI card in Windows and the installation of the card in the computer. Note: For installation on Linux, see Appendix E Linux. Install the driver before you install the CAN interface.

  • Page 11: Installing The Pcan-Pci Card

    Windows detects the new hardware and completes the driver installation. 3.3 Check Operational Readiness 1. Open the Windows Start menu. 2. Type Peak Settings and press |Enter|. The window PEAK Settings appears. 3. Select CAN Hardware. The connected CAN interface is displayed.

  • Page 12: Connecting The Can Bus

    The pin assignment of the D-Sub connector corresponds to the specification CiA® 106: Assignment D-Sub plug +5 V (optional) CAN_Low CAN_GND None None CAN_GND CAN_High None +5 V (optional) 4   Connecting the CAN Bus PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 13: Cabling

    The termination prevents interfering signal reflections and ensures the proper operation of the transceivers of the connected CAN nodes (CAN interfaces, control devices). The CAN interface PCAN-PCI does not have an internal termination. Use the CAN interface on a terminated CAN bus. 4.2.2 Example of a Connection This example shows a connection between the PCAN Interface and a control unit (ECU).

  • Page 14: Example Application Under Windows

    4.3 Example Application under Windows As an example application for accessing the CAN interface, run the CAN monitor PCAN-View from the Windows Start menu. 4   Connecting the CAN Bus PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 15: Can Monitor Pcan-View

    In the following the initialization of a CAN interface is described as an example. Detailed information about using PCAN-View can be found in the program window under the menu item Help. 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 16: Initialize Can-Interface

    Depending on the CAN-Interface the Connect dialog is displayed with or without settings for CAN FD. CAN FD CAN interface List entry in Available Hardware USB Interface, 1-channel see example above USB Interface, 2-channel PCIe Interface, 2-channel 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...
  • Page 17 3. Enter the bit rate(s) and other settings according to the connected CAN bus. 4. Confirm the entries with OK. The main window appears and displays the Receive / Transmit tab. 5. For initializing another channel or CAN-Interface, open another instance of PCAN-View. 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 18: Transmit Can Message

    4. To send the message manually, select the menu command Transmit > Send or press the |space| bar. The manual transmission process is performed additionally for periodically transmitted CAN messages. 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 19: Additional Tabs

    5.3.1 Trace Tab The tracer (data logger) records the communication of the CAN bus in linear or ring buffer mode. The trace data can be saved to a file. 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...
  • Page 20 Depending on the CAN interface, a hardware ID can be determined to distinguish several interfaces of the same type. For interfaces with CAN FD a transmission according to "ISO" or "Non-ISO" can be set as default of the hardware. 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...
  • Page 21 5.3.3 Bus Load Tab The Bus Load tab displays the current bus load, its time history and statistical information of the connected CAN channel. 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...
  • Page 22 You can destroy CAN frames with the error generator by one of two methods: once after activation ■ repeatedly at specific intervals related to a CAN ID ■ 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...
  • Page 23 4. Determine the Number of Frames to destroy. 5. Confirm the entries with Apply to activate the error generator. 6. Stop destroying further CAN frames with Disable. 5   CAN Monitor PCAN-View PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 24: Api Pcan-Basic

    The programming interface (API) PCAN-Basic provides basic functions for the connection of own programs to the CAN and CAN FD Interfaces of PEAK-System. PCAN-Basic is the interface between the program and the device driver. In Windows operating systems this is a DLL (Dynamic Link Library) and in Linux operating systems an SO (Dynamic Shared Object).

  • Page 25: Features Of Pcan-Basic

    Use of a single DLL for all supported hardware types ■ Use of up to 16 channels for each hardware type (depending on the PEAK CAN ■ interface used) Simple switching between channels of a PEAK CAN interface ■...

  • Page 26: Principle Description Of The Api

    To end the communication the function CAN_Uninitialize is called in order to release the reserved resources for the CAN channel, among others. In addition the CAN channel is marked as "Free" and is available to other applications. 6   API PCAN-Basic PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 27: Technical Specifications

    PCAN-PCI opto: up to 500 V, separate for each connection PCAN-PCI: D-Sub pin 1 / pin 9; 5 V, max. 100 mA Supplying external devices PCAN-PCI opto: D-Sub pin 1 / pin 9; 5 V, max. 50 mA not assigned at delivery Internal termination none...
  • Page 28 Relative humidity 15 to 90 %, not condensing Conformity RoHS EU Directive 2011/65/EU (RoHS 2) + 2015/863/EU DIN EN IEC 63000:2019-05 EU Directive 2014/30/EU DIN EN 55032:2022-08 DIN EN 55035:2018-04 7   Technical Specifications PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 29: Appendix Ace Certificate

    German version of EN 55032:2015 + AC:2016 + A11:2020 + A1:2020 DIN EN 55035:2018-04 Electromagnetic compatibility of multimedia equipment - Immunity requirements (CISPR 35:2016, modified); German version of EN 55035:2017 Darmstadt, 29 August 2023 Uwe Wilhelm, Managing Director Appendix A CE Certificate PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 30: Appendix B Ukca Certificate

    German version of EN 55032:2015 + AC:2016 + A11:2020 + A1:2020 DIN EN 55035:2018-04 Electromagnetic compatibility of multimedia equipment - Immunity requirements (CISPR 35:2016, modified); German version of EN 55035:2017 Darmstadt, 29 August 2023 Uwe Wilhelm, Managing Director Appendix B UKCA Certificate PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 31: Appendix C Dimension Drawing

    Appendix C Dimension Drawing PCAN-PCI Dual Channel Appendix C Dimension Drawing PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

  • Page 32: Appendix D Quick Reference

    The new hardware is detected at the next Windows start and the driver is initialized. Check the operational readiness. Open the Windows Start menu. Type Peak Settings and press |Enter|. The window PEAK settings appears. The connected CAN interface is displayed under CAN Hardware.

  • Page 33: Appendix E Linux

    Appendix E Linux Depending on the Kernel version, device drivers for the CAN interfaces from PEAK- System are already included in the operating system. The PCAN interfaces are handled as network devices (SocketCAN, netdev). You can find the documentation for SocketCAN under: https://www.kernel.org/doc/Documentation/networking/can.txt...

  • Page 34: Appendix F Disposal

    Appendix F Disposal The product must not be disposed of in household waste. Dispose of the product properly in accordance with local regulations. Appendix F Disposal PCAN-PCI User Manual 3.1.0 © 2023 PEAK-System Technik GmbH...

This manual is also suitable for:

Ipeh-002064Ipeh-002065Ipeh-002066Ipeh-002067
