Toyota CQ-LS8180A Service Manual

Specifications*
General
Power Supply
Current Consumption
Power Output
AM Radio
Frequency Range
<CQ-LS8180A>
<CQ-LS8181A>
Usable Sensitivity
FM Stereo Radio
Frequency Range
<CQ-LS8180A>
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 3.0A
20W×4
531 - 1,602 kHz
530 - 1,620 kHz
25dB/µV (S/N 20dB)
87.5 - 108.0MHz
CQ-LS8180A
CQ-LS8181A

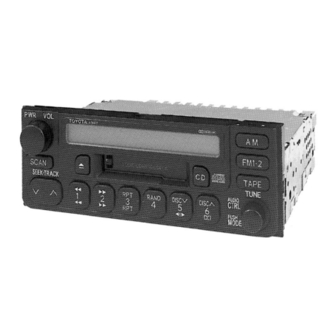

AM/FM MPX Electronic Tuning Radio
with Stereo Cassette Tape Player
PART No. (CQ-LS8180A) : 86120-33460
(CQ-LS8181A) : 86120-33440
ID CODE (CQ-LS8180A) : 57412
(CQ-LS8181A) : 57413
VEHICLE : COROLLA, CAMRY, ECHO, RAV4
DESTINATION
(CQ-LS8180A) : Australia, New Zealand,
Middle and Near East, China
(CQ-LS8181A) : Latin America
PRODUCED AFTER : Aug., 2001
<CQ-LS8181A>
Usable Sensitivity
Cassette Player
Wow and Flutter
Signal to Noise Ratio
Dimensions**(W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"Dolby" and the double-D symbol
Laboratories Licensing Corporation.
87.9 - 108.0MHz
6dB/µV (S/N 30dB)
0.09% (WRMS)
More than 42dB
178×70×165mm
1.3kg
are trade marks of Dolby
