Specification*
General
Power Supply
Current Consumption
Power Output
AM Radio
Frequency Range
Usable Sensitivity
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 2.0A
17W×4ch
530 - 1,620kHz
25dB(µV) (S/N 20dB)

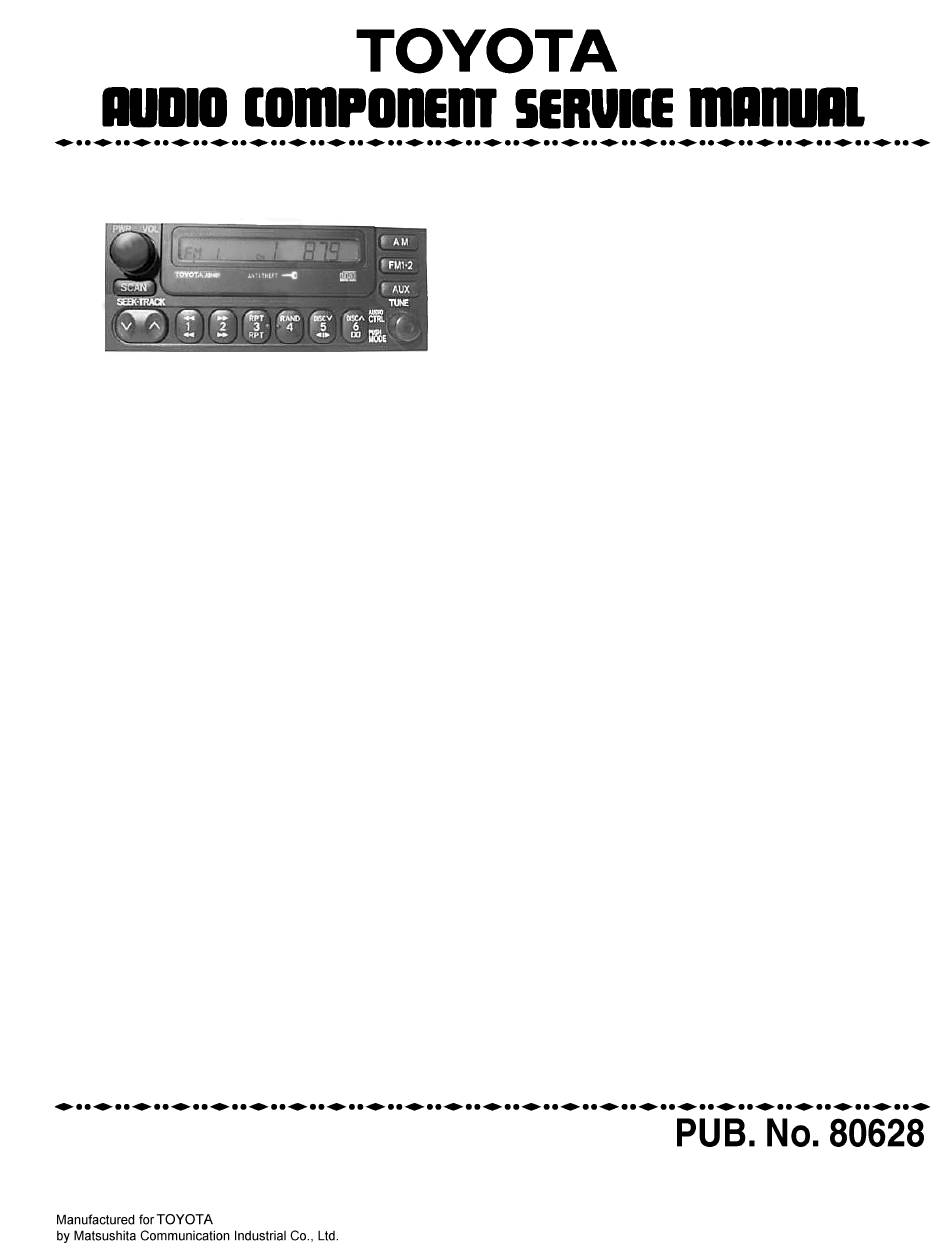

AUTOMOTIVE ELECTRONICS
CR-LS7160K
AM/FM MPX Electronic Tuning Radio
PART No. : 08600-12800
ID CODE : 72400
VEHICLE : COROLLA
DESTINATION : Brazil
PRODUCED AFTER : May, 2002
FM Stereo Radio
Frequency Range
Usable Sensitivity
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
87.9 - 108.0MHz
6dB/µV (S/N 30dB)
178×70×165mm
0.9kg
I0
Advertisement
Table of Contents
Related Manuals for Toyota CR-LS7160K
Summary of Contents for Toyota CR-LS7160K
- Page 1 AUTOMOTIVE ELECTRONICS CR-LS7160K AM/FM MPX Electronic Tuning Radio PART No. : 08600-12800 ID CODE : 72400 VEHICLE : COROLLA DESTINATION : Brazil PRODUCED AFTER : May, 2002 Specification* General FM Stereo Radio Power Supply DC 12V (11V - 16V), Frequency Range 87.9 - 108.0MHz...
-
Page 2: Table Of Contents
CR-LS7160K CONTENTS Page Page 1 FEATUERS 7 REPLACEMENT PARTS LIST 2 REAR VIEW AND CONNECTORS 8 EXPLODED VIEW (Unit) 3 FRONT VIEW AND FUNCTIONS 9 WIRING DIAGRAM 4 BLOCK DIAGRAM 10 SCHEMATIC DIAGRAM 5 TERMINALS DESCRIPTION 11 MEMO 6 PACKAGE AND IC BLOCK DIAGRAM 1 FEATUERS ∙... -
Page 3: Block Diagram
CR-LS7160K 4 BLOCK DIAGRAM... -
Page 4: Terminals Description
CR-LS7160K 5 TERMINALS DESCRIPTION 5.1. Main Block No connection No connection IC601 : C2CBHG000092 No connection MSOUT Not used Port Description No connection No connection BEEP Buzzer output No connection ROM SCK Security ROM data shift clock MS-PL/FF Not used... -
Page 5: Package And Ic Block Diagram
CR-LS7160K 6 PACKAGE AND IC BLOCK DIAGRAM 6.1. Main Block PA150 : YEP0PTA512B0 IC231 : AN7561Z-WLB IC651 : YEAMH12187ER... - Page 6 CR-LS7160K IC451 : YEAMLC72135C IC701 : C0DBZHZ00006 IC201 : C1BB00000284 IC704 : AN8065SE1 IC602 : YEAM93LC46FE...
-
Page 7: Replacement Parts List
CR-LS7160K 7 REPLACEMENT PARTS Ref. Part No. Part Name & Description Remarks LIST CAPACITORs YECUZ1H102KX Ceramic, 1000PF 50WV Notes : F1H1H120A231 Ceramic, 12PF 50WV C101 F1H1A154A007 Ceramic, 0.15µF 10WV 1. Be sure to make your orders of replacement parts C102 YECUZ1E223KX Ceramic, 0.022µF 25WV... - Page 8 CR-LS7160K Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Metal Film, 2.2Ω Ω Ω Ω 1/16W C603 F1H1H101A231 Ceramic, 100PF 50WV R226 D0GF2R2JA002 Chip, 22kΩ Ω Ω Ω 1/10W C604 F1H1H820A231 Ceramic, 82PF 50WV...
- Page 9 CR-LS7160K Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Metal Film, 68kΩ Ω Ω Ω 1/16W R777 D0GF683JA002 D938 MA8100LMTX Diode Metal Film, 68kΩ Ω Ω Ω 1/16W R778 D0GF683JA002 D939 MA8100LMTX Diode Metal Oxid, 68Ω...
- Page 10 CR-LS7160K Ref. Part No. Part Name & Description Remarks COIL L901 YELT03N101JT Coil VARIABLE RESISTORs VR901 K0N130C00003 Variablr resistor VR902 K0N130C00002 Variablr resistor Mechanical Parts MISCELLANEOUS ANT100 YEAA10066 Antenna Receplacle YEFA031440C Upper Cover (4-B) YEFA05662 Bottom Cover (1-B) YEFA07463 Front Plate...
-
Page 11: Exploded View (Unit)
CR-LS7160K 8 EXPLODED VIEW (Unit) -
Page 12: Wiring Diagram
CR-LS7160K 9 WIRING DIAGRAM 9.1. Main Block (Top View) 5 12 [E-6895] [Top View] CR-LS7160K MAIN P.C.B... -
Page 13: Main Block (Bottom View)
CR-LS7160K 9.2. Main Block (Bottom View) [E-6895] [Bottom View] CR-LS7160K MAIN P.C.B... -
Page 14: Display Block
CR-LS7160K 9.3. Display Block [E-8759] [Top View] [E-8759] [Bottom View] CR-LS7160K ESC P.C.B... -
Page 15: Schematic Diagram
CR-LS7160K 10 SCHEMATIC DIAGRAM 10.1. Main Block... - Page 16 CR-LS7160K 10.2. Display Block...
-
Page 17: Memo
CR-LS7160K 11 MEMO... - Page 18 CR-LS7160K...
