Specification*
General
Power Supply
Current Consumption
Power Output
AM Radio
Frequency Range
Usable Sensitivity
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 2.0A
17W×4ch
530 - 1,710kHz
25dB(µV) (S/N 20dB)

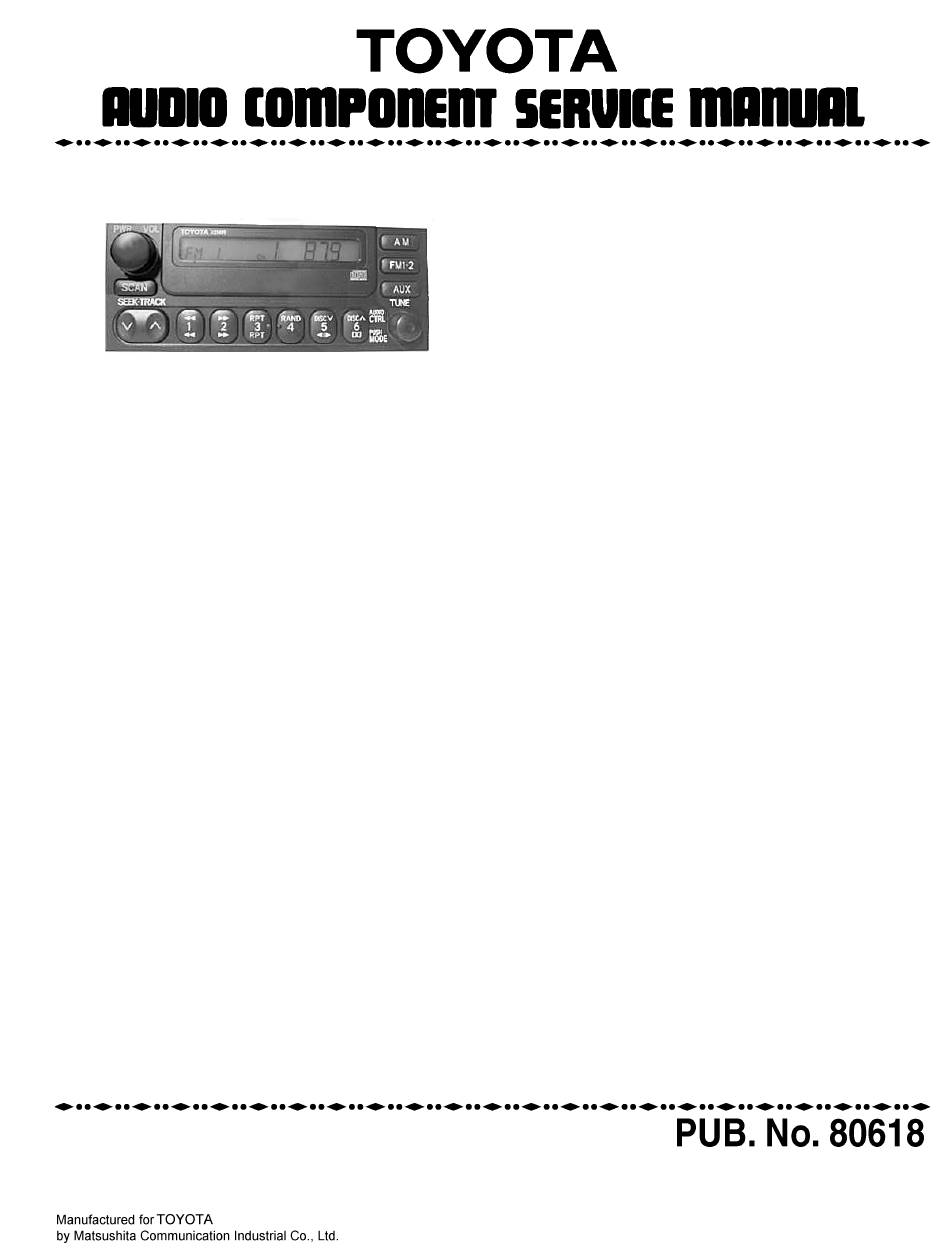

AUTOMOTIVE ELECTRONICS
CR-LT1010X
AM/FM MPX Electronic Tuning Radio
PART No. : 86120-AD010
ID CODE : A51409
VEHICLE : TACOMA
DESTINATION : North America
PRODUCED AFTER : Aug., 2000
FM Stereo Radio
Frequency Range
Usable Sensitivity
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
87.7 - 107.9MHz
6dB/µV (S/N 30dB)
178×70×165mm
0.9kg
I0
