Toyota CQ-VS8180A Service Manual

Specifications*
General
Power Supply
Current Consumption
Power Output
AM Radio
Frequency Range
Usable Sensitivity
FM Stereo Radio
Frequency Range
Usable Sensitivity
SW Radio (SW1)
Frequency Range
Usable Sensitivity
SW Radio (SW2)
Frequency Range
Usable Sensitivity
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 3.0A
20W×4
531 - 1,602 kHz
25dB/µV (S/N 20dB)
87.5 - 108.0MHz
6dB/µV (S/N 30dB)
2.940 - 7.735MHz
27dB/µV
9.500 - 21.975MHz
30dB/µV

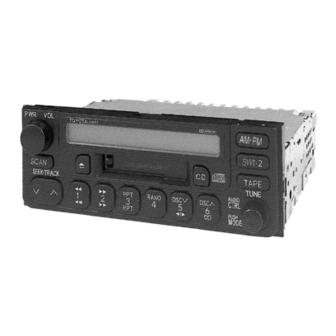

CQ-VS8180A
AM/FM/SW MPX
Radio with Stereo Cassette Tape Player
PART No. : 86120-42070
ID CODE : 57414
VEHICLE : COROLLA, PRONARD, ECHO, RAV4
DESTINATION : Middle and Near East
PRODUCED AFTER : Aug., 2001
Cassette Player
Reproduction System
Tape Speed
Wow and Flutter
Signal to Noise Ratio
Separation
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"Dolby" and the double-D symbol
Laboratories Licensing Corporation.
Electronic Tuning
4-Track, 2-Program Stereo
4.76cm/sec.
0.09% (WRMS)
More than 42dB
More than 30dB
178×70×165mm
1.3kg
are trade marks of Dolby
