44 C 5: G
HAPTER ATEWAY
C
ONFIGURATION

PCs Privileges

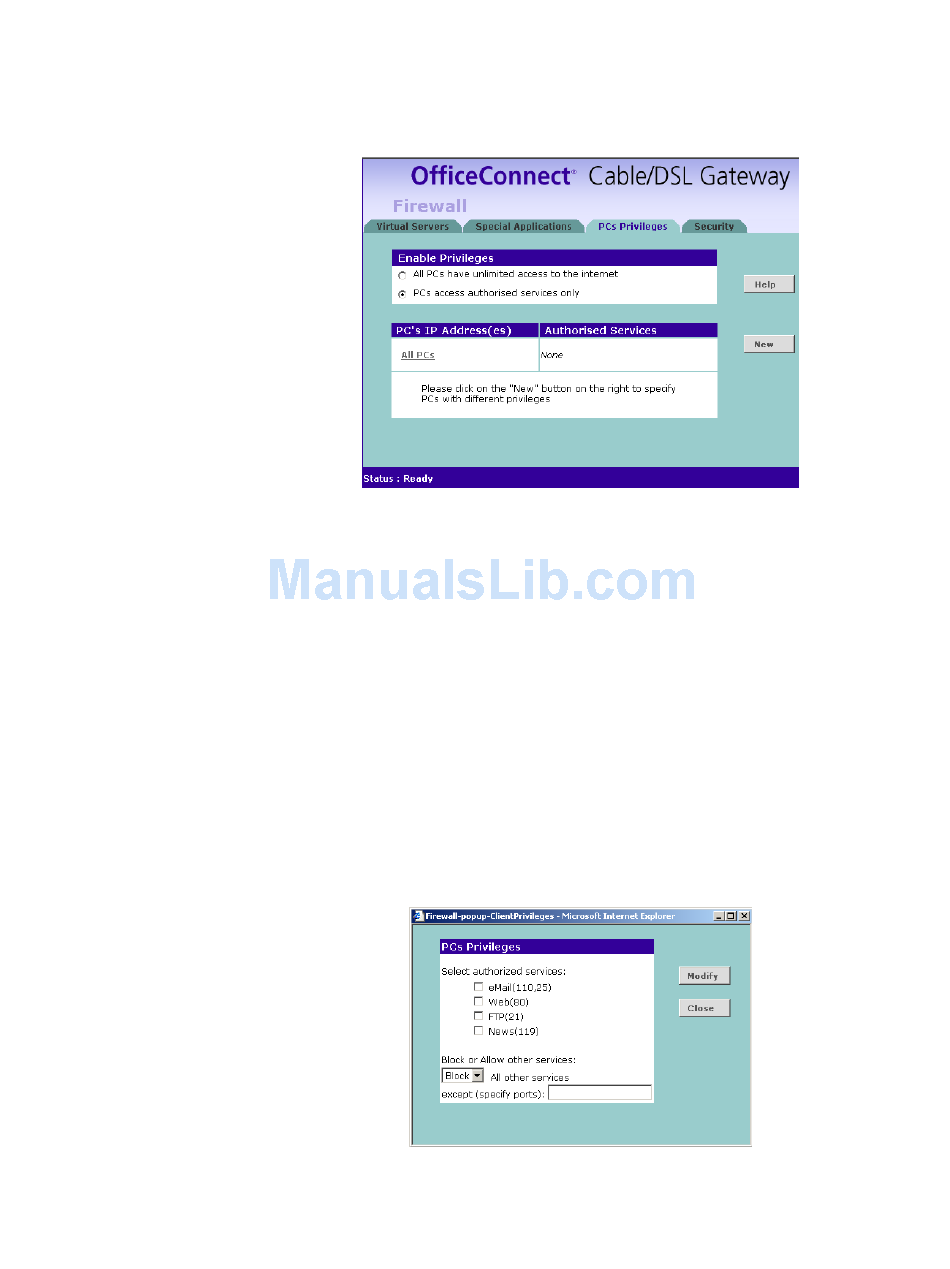

Figure 40 PCs Privileges Screen
Select PCs Privileges to display the PCs Privileges setup screen. (Figure 40)
Access from the local network to the Internet can be controlled on a PC-by-PC
basis. In the default configuration the Gateway will allow all connected PCs
unlimited access to the Internet.
PCs Privileges allows you to assign different access rights for different computers
on your network.
To use access control for all computers:
1 Click in the PCs access authorized services only radio button.
2 Select All PCs to setup the access rights for all computers connected to the
gateway.
3 Select authorized services by clicking in the appropriate check box(es). (Figure 41)
Figure 41 All PCs Setup Screen
4 Access rights allow or deny users access to specified TCP and UDP ports. TCP and
UDP ports correspond to specific Internet services, such as browsing the Internet
or accessing news groups.
