Liko FreeSpan UltraTwin Instruction Manual

Lifting very heavy people requires special techniques
and specially designed lift equipment. Liko's lift system
for lifting over 300 kg / 661 lbs. is called UltraTwin. The
UltraTwin principle is based on the use of two Likorall
lift units working in tandem to lift and position the
patient. For lifting, both units are used, while for posi-
tioning in an upright, semi-seated or prone position,
only one lift unit is used.
FreeSpan UltraTwin is height-adjustable to four posi-
tions, and 8 different rail lengths are available, allowing
a total width of 2 to 5.5 metres.
In this document, the person being transferred is referred to as the patient and the person helping them is referred
to as the caregiver.
Caution triangles are used to warn of situations that demand extra care and attention.
IMPORTANT!
Read the instructions for both the patient lift and the lifting accessories before use. Lifting and transferring a
patient always involves a degree of risk. A complete understanding of the contents of instructions is essential,
and only trained personnel should use the equipment. When in doubt, contact Liko.

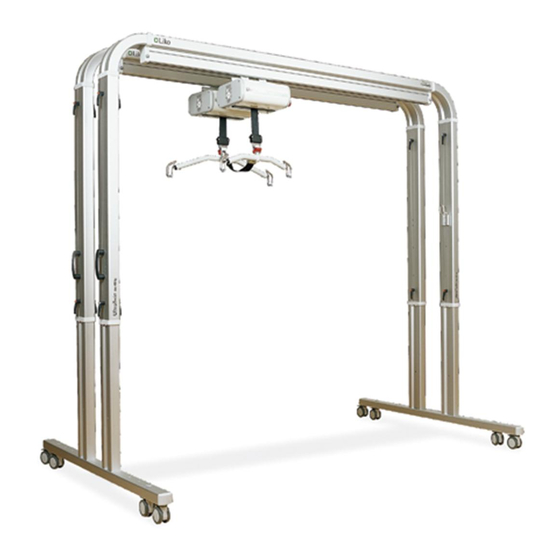

Product Description
To facilitate installation of lift units and/or move the
FreeSpan UltraTwin to another location, the lift system
can be lowered to the transport position (1700 mm /
67 inch.).
FreeSpan UltraTwin has lockable twin castor wheels,
is made of aluminium and is despite its low weight a
very stable lift system.
FreeSpan UltraTwin complies with EN ISO 10535 acc-
ording to the Medical Device Directive MDD 93/42/EEC.
FreeSpan UltraTwin
Instruction Guide
English
7EN130104 Rev. 2
2015-11-02
