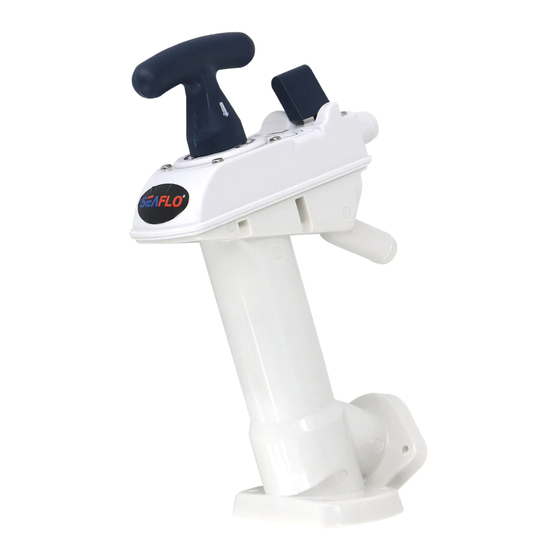

- Page 1 TWIST N’ LOCK’ PUMP This manual toilet pump assembly pairs with any manual marine toilet. It incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left handed or right handed used.
- Page 2 Unscrew and remove the You may install the Twist n' Lock' Pump Assembly to. SEAFLO Compact bowl manually operated marine chopper from the motor shaft. Lift the wearplate and gaskets from the pump body and clean any paper residue which may stick to the wearplate and body.
- Page 3 DISMANTLE THE PUMP ASSEMBLY AS FOLLOWS 1. FIRST USE Remove the 6 screws that secure the valve cover. After periods without use the toilet may benefit from lubrication. Open ( ) the Flush Control (key 24) before lifting off the valve cover assembly and picking up the top Open inlet and outlet seacocks (and secondary valves if fitted).
- Page 4 DIMENSIONALDRAWING EXPLODEDVIEW 415.0mm(16.34ʺ) Seat,lid & hinge set 232.0mm(9.13ʺ) Hinge set Hinge set Bolt assembly Base valve gasket Toilet seal O-ring (plug) With an inner diam- eter of 38mm hose Plug seal insertion Base plug Intake seal Intake elbow Hose 105.5mm(4.15ʺ) Discharge flange Joker valve Discharge elbow...
