3. Pin Definitions

2.
Pin Definitions
2

.1 Pin Layout

Note:
The pin diagram shows the approximate location of pins on the module. For the actual mechanical diagram, please refer
to Figure 7 Physical Dimensions.
2

.2 Pin Description

The ESP32-PICO-V3-ZERO module has 77 pins. See pin definitions in Table 1.
Espressif Systems

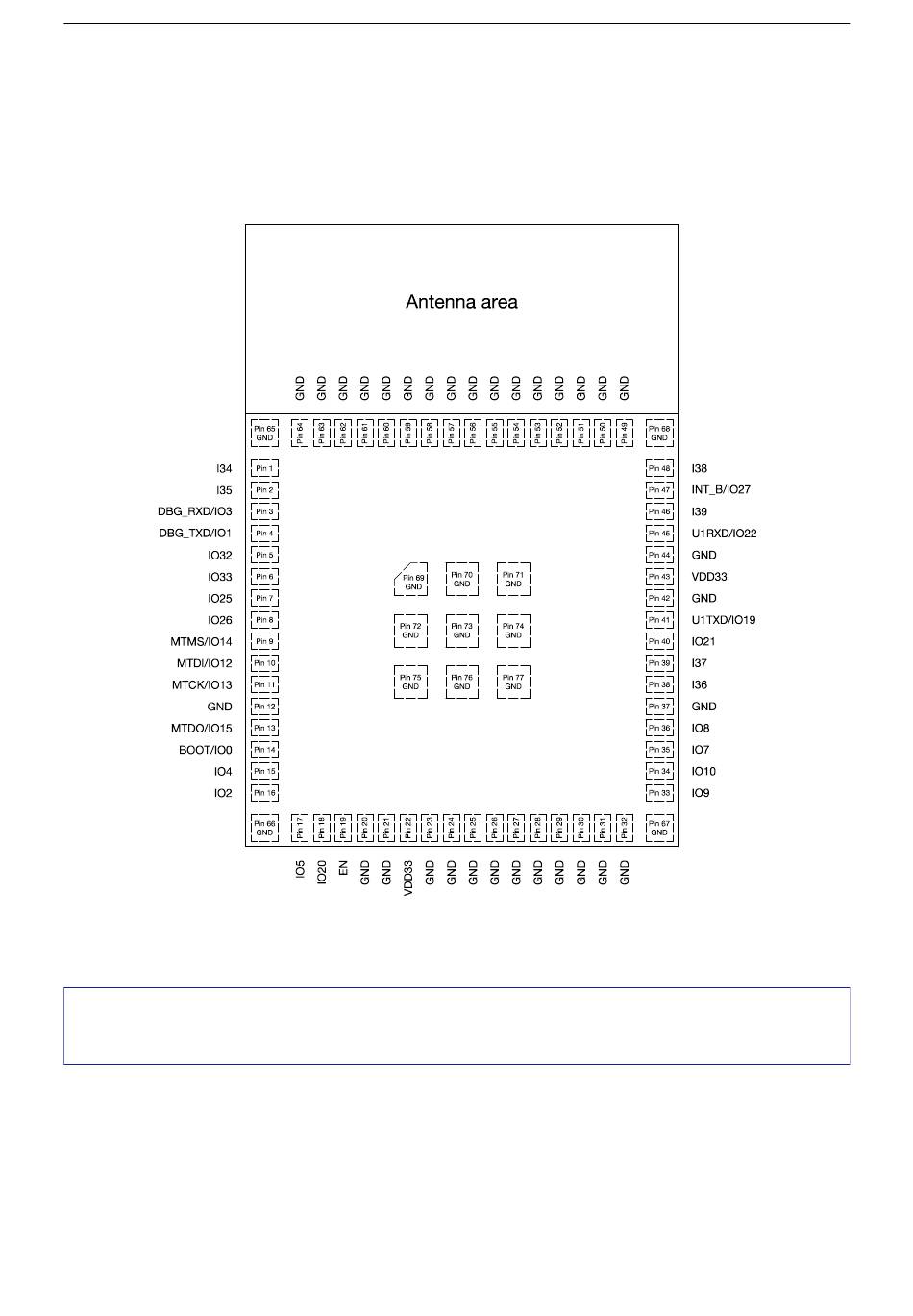

Figure 1: Pin Layout of ESP32-PICO-V3-ZERO (Top View)
