- Page 1 ESP32-PICO-V3-ZERO User Manual Version 1.0 Espressif Systems Copyright © 2020 www.espressif.com...
-
Page 2: About This Document
The Wi-Fi Alliance Member logo is a trademark of the Wi-Fi Alliance. The Bluetooth logo is a registered trademark of Bluetooth SIG. All trade names, trademarks and registered trademarks mentioned in this document are property of their respective owners, and are hereby acknowledged. Copyright © 2020 Espressif Systems (Shanghai) Co., Ltd. All rights reserved. Espressif Systems... -

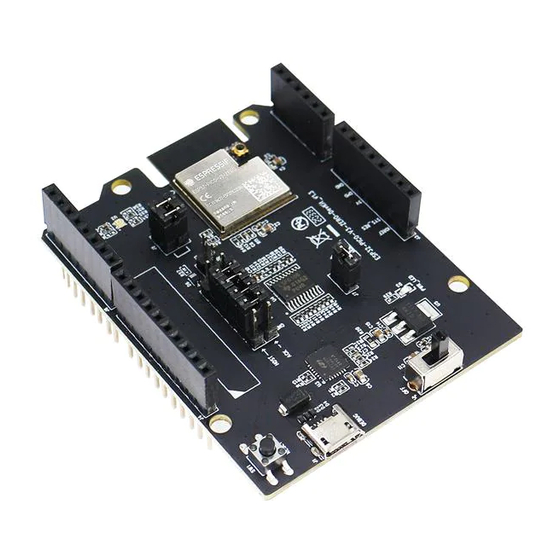

Page 3: Module Overview
TSMC’s 40 nm low-power technology. ESP32-PICO-V3-ZERO integrates all peripheral components seam- lessly, including a crystal oscillator, flash, filter capacitors and RF matching links in one single package. Module assembly and testing are already done at SiP level. As such, ESP32-PICO-V3-ZERO reduces the complexity of supply chain and improves control efficiency. - Page 4 • Cameras for Video Streaming • Smart Agriculture • Over-the-top (OTT) Devices • Audio Applications • Speech Recognition • Health Care Applications • Image Recognition • Wi-Fi-enabled Toys • Mesh Network • Wearable Electronics • Home Automation • Retail & Catering Applications Espressif Systems...
-
Page 5: Pin Definitions
The pin diagram shows the approximate location of pins on the module. For the actual mechanical diagram, please refer to Figure Physical Dimensions. .2 Pin Description The ESP32-PICO-V3-ZERO module has 77 pins. See pin definitions in Table 1. Espressif Systems... - Page 6 Host interrupt, connected to host GPIO, GPIO27 GPIO38 12, 20, 21, 23 Ground 37, 42, 44, 49 Note: 1. IO7/IO8/IO9/IO10/IO20 belong to VDD_SDIO power domain and cannot work when VDD_SDIO power shuts down. Manual. 2. For peripheral pin configurations, please refer to ESP32User Espressif Systems...
- Page 7 Enabling/Disabling Debugging Log Print over U0TXD During Booting Default U0TXD Active U0TXD Silent MTDO Pull-up Timing of SDIO Slave FE Sampling FE Sampling RE Sampling RE Sampling Default FE Output RE Output FE Output RE Output MTDO Pull-up GPIO5 Pull-up Espressif Systems...
- Page 8 • Firmware can configure register bits to change the settings of ”Voltage of Internal LDO (VDD_SDIO)” and ”Timing of SDIO Slave”, after booting. • The operating voltage of ESP32-PICO-V3-ZERO’s integrated external SPI flash is 3.3 V. Therefore, the strapping pin MTDI should hold bit ”0” during the module power-on reset.
-
Page 9: Electrical Characteristics
3.3 DC Characteristics (3.3 V, 25 °C) Table 5: DC Characteristics (3.3 V, 25 °C) Symbol Parameter Unit Pin capacitance High-level input voltage 0.75×VDD +0.3 Low-level input voltage –0.3 0.25×VDD High-level input current Low-level input current High-level output voltage 0.8×VDD Low-level output voltage 0.1×VDD Espressif Systems... - Page 10 • The current consumption measurements are taken with a 3.3 V supply at 25 °C of ambient temperature at the RF port. All transmitters’ measurements are based on a 50% duty cycle. • The current consumption figures for in RX mode are for cases when the peripherals are disabled and the CPU idle. Espressif Systems...
- Page 11 1. Device should operate in the center frequency range allocated by regional regulatory authorities. Target center frequency range is configurable by software. 2. For the modules that use IPEX antennas, the output impedance is 50 Ω. For other modules without IPEX antennas, users do not need to concern about the output impedance. Espressif Systems...
- Page 12 11n, HT20, MCS1 –88 11n, HT20, MCS2 –85 11n, HT20, MCS3 –83 11n, HT20, MCS4 –80 11n, HT20, MCS5 –75 11n, HT20, MCS6 –74 11n, HT20, MCS7 –72 11n, HT40, MCS0 –88 11n, HT40, MCS1 –85 11n, HT40, MCS2 –82 Espressif Systems...
- Page 13 F = F0 + 3 MHz –25 F = F0 – 3 MHz –45 30 MHz 2000 MHz –10 2000 MHz 2400 MHz –27 Out-of-band blocking performance 2500 MHz 3000 MHz –27 3000 MHz 12.5 GHz –10 Intermodulation –36 Espressif Systems...
- Page 14 There are a total of eight power levels from 0 to 7, and the transmit power ranges from –12 dBm to 9 dBm. When the power level rises by 1, the transmit power increases by 3 dB. Power level 4 is used by default and the corresponding transmit power is 0 dBm. Espressif Systems...
- Page 15 When battery is used as the power supply for ESP32 series of chips and modules, a supply voltage supervisor is recom- mended to avoid boot failure due to low voltage. Users are recommended to pull CHIP_PU low if the power supply for ESP32 is below 3.0 V. Espressif Systems...
-
Page 16: Physical Dimensions
5. Physical Dimensions and PCB Layout Physical Dimensions and PCB Layout 5.1 Physical Dimensions ESP32-PICO-V3-ZERO Module Dimensions Unit: mm 0.8±0.1 16±0.15 2.3±0.15 Top view Side view Bottom view Figure4: Physical Dimensions Espressif Systems... - Page 17 As is shown in Figure 9, examples 3 and 4 of the module position on the base board are highly recommended, while examples 1, 2, and 5 are not recommended. Espressif Systems...
-
Page 18: Storage Condition
Cooling zone — Peak Temp. ~ 180℃ Ramp-down rate: -1 ~ -5℃/s Solder — Sn&Ag&Cu Lead-free solder (SAC305) Figure 6: Reflow Profile Note: Solder the module in a single reflow. If the PCBA requires multiple reflows, place the module on the PCB during the final reflow. Espressif Systems... - Page 19 • BLE mode: mac_address + 2 • Ethernet mode: mac_address + 3 In the 1 Kbit eFuse, 256 bits are used for the system (MAC address and chip configuration) and the remaining 768 bits are reserved for customer applications, including flash-encryption and chip-ID. Espressif Systems...
-
Page 20: Learning Resources
ESP32 development projects are freely distributed under Espressif’s MIT license on GitHub. It is established to help developers get started with ESP32 and foster innovation and the growth of general knowledge about the hardware and software surrounding ESP32 devices. Espressif Systems... - Page 21 This is a webpage where users can download ESP32 Flash Download Tools and the zip file ”ESP32 Certifi- cation and Test”. • ESP-IDF This webpage links users to the official IoT development framework for ESP32. • ESP32 Resources This webpage provides the links to all available ESP32 documents, SDK and tools. Espressif Systems...
-
Page 22: Revision History
This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. If the equipment built into a host as a portable usage, the additional RF exposure evaluation may be required as specified by 2.1093. Espressif Systems... - Page 23 Antenna Antenna type: PCB antenna Peak gain: 3dBi 7. Label and compliance information An exterior label on OEM’s end product can use wording such as the following: “Contains Transmitter Module FCC ID: 2AC7Z-ESP32PICOZERO” or “Contains FCC ID: 2AC7Z-ESP32PICOZERO” 8. Information on test modes and additional testing requirements a)The modular transmitter has been fully tested by the module grantee on the required number of channels,modulation types, and modes, it should not be necessary for the host installer to re-test all the available transmitter modes or settings.
