TUBESCA-COMABI SHERPA 2272 Series Operating Instructions

SHERPA 2272/173 to 2272/177 operating instructions
Product compliant with December 2009 standards, i.e. NF P 93-353 for 3 to 6 step versions and NF P 93-352 for the 7 step version
4
3
2
1
3 (without stabilizers)
4 (with stabilisers)
5 (with stabilisers)
6 (with stabilisers)
7 (with stabilisers)
1. Product description
Lightweight Individual Mobile Platforms and Individual Mobile Platforms are designed for finishing and equipment fitting work. These
platforms can be used by just one operator working on the ground.
They are fitted with two non-swivel rollers used for positioning and transporting them.
They are fitted with two independent adjustable stabilizers for the 3 to 7 step models. The stabilizers hold the unit perfectly securely under
the normal operating conditions recommended by the standard.
2. Use

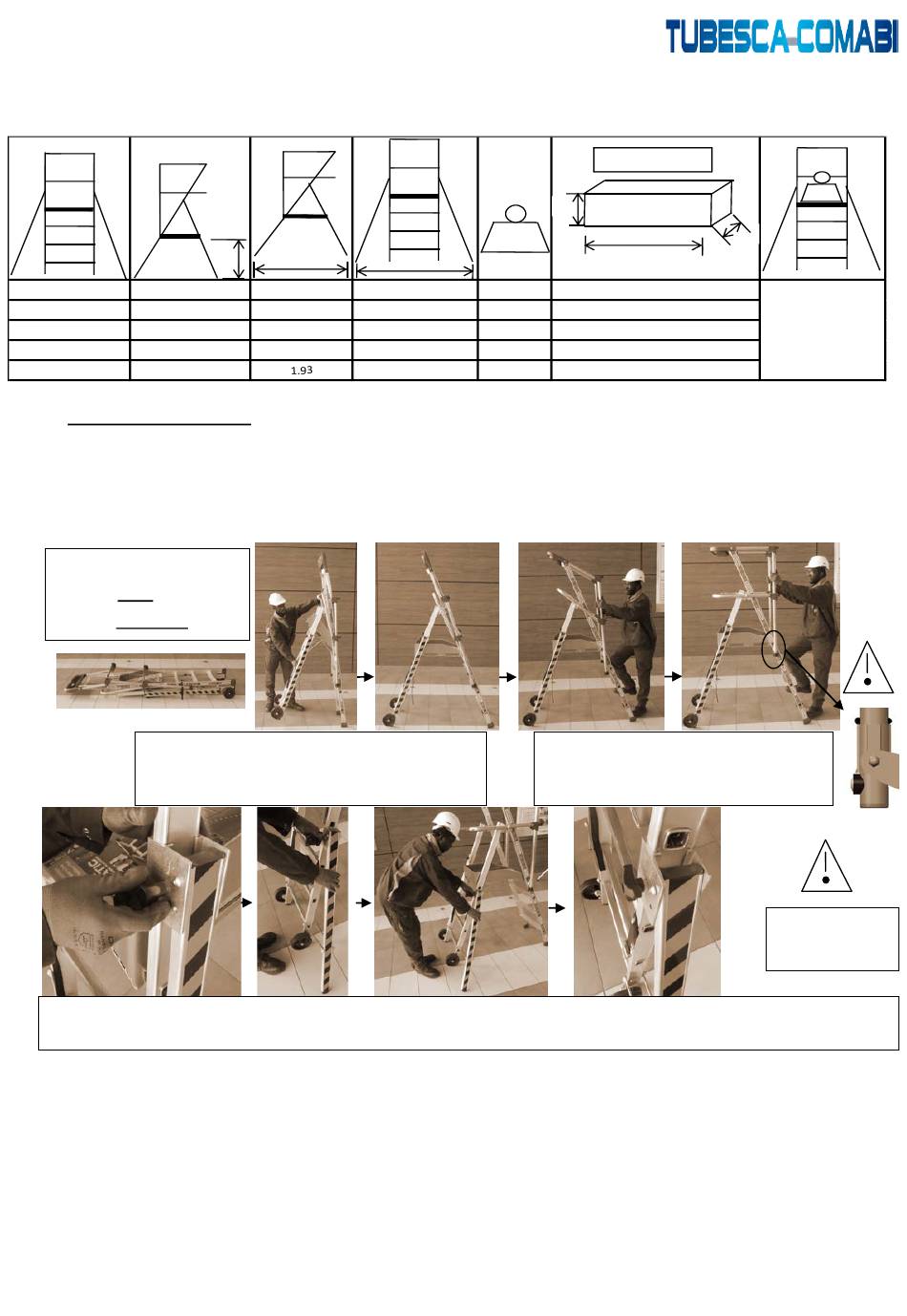

2.1. Assembly
Open up the platform by lowering the floor. The
platform must be against the climbing section, the
section with the steps.
The stabilizer is put in place by unlocking the cam. It is in place once it makes contact with the floor. The cam must then be locked in
position before the unit can be used.
00 of 11/2013
61029_315_ind_
H
L1 (m)
0.73 1.2
0.95 1.39
1.18 1.57
1.42 1.75
1.65
http://www.tubesca-comabi.com/
Ht
Kg
L2 (m)
0.8 16.9
0.66 20.1
0.66 21.8
0.66 23.3
0.66 25.2
Unfold the guardrail. Once it is in position,
the locking pins prevent the guardrail from
folding up.
L x H x W in m
Product folded
Pf
Lg
2.07x0.80x0.32
2.30x0.80x0.32
2.55x0.80x0.32
2.80x0.80x0.32
3.05x0.80x0.32
Kg
150
LOCK THE
CAM
