TUBESCA-COMABI PROFORT X'TEND Operating Instructions

PROFORT X'TEND operating instructions, ref: 02272/750
Product compliant with standard NF P 93-353 of December 2009
4
3
2
1
3 --> 4 --> 5 0.7--> 0.93 --> 1.16

1. Product description

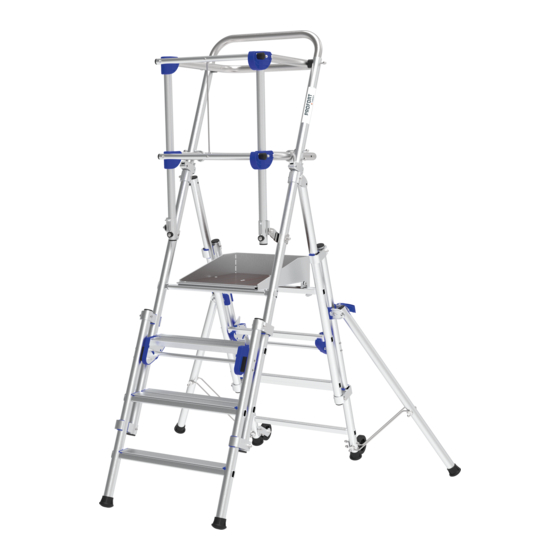

This individual mobile platform for individual use is designed for finishing and equipment fitting work The platform can be used by just one
operator working on the ground.
It is fitted with two non-swivel rollers used for positioning it.
It is equipped with two independent adjustable stabilizers for use in 4 and 5 step versions. The stabilizers hold the unit perfectly securely
under the normal operating conditions recommended by the standard.

2. Use

2.1. Assembly

Put the guardrail in place
by pivoting it
Unlock the hook with your right hand. Take hold of the platform with your left hand and raise so that the hook is lowered
below the bottom step.
00 of 01/2014
61029_321_ind_
H
L1 (m)
1.28-->1.47-->1.65 0.78-->1.57-->1.57
Undo the velcro fastener and unfold the platform by lowering it
THE PIN MUST
THE LOCK MUST
BE 'OUT'
BE CLOSED
http://www.tubesca-comabi.com/
Ht
Kg
L2 (m)
20.5
The stabilizer is put in place by unlocking the cam. It is in place once it
makes contact with the floor. The cam must then be locked in position
before the unit can be used.
L x H x W in m
Product folded
Pf
Lg
1.36x0.49x0.76
Take hold of the two guardrail tubes
LOCK THE CAM
Adjust the size of
the unit step by
step.
Kg
150Kg
PAGE
1/2
