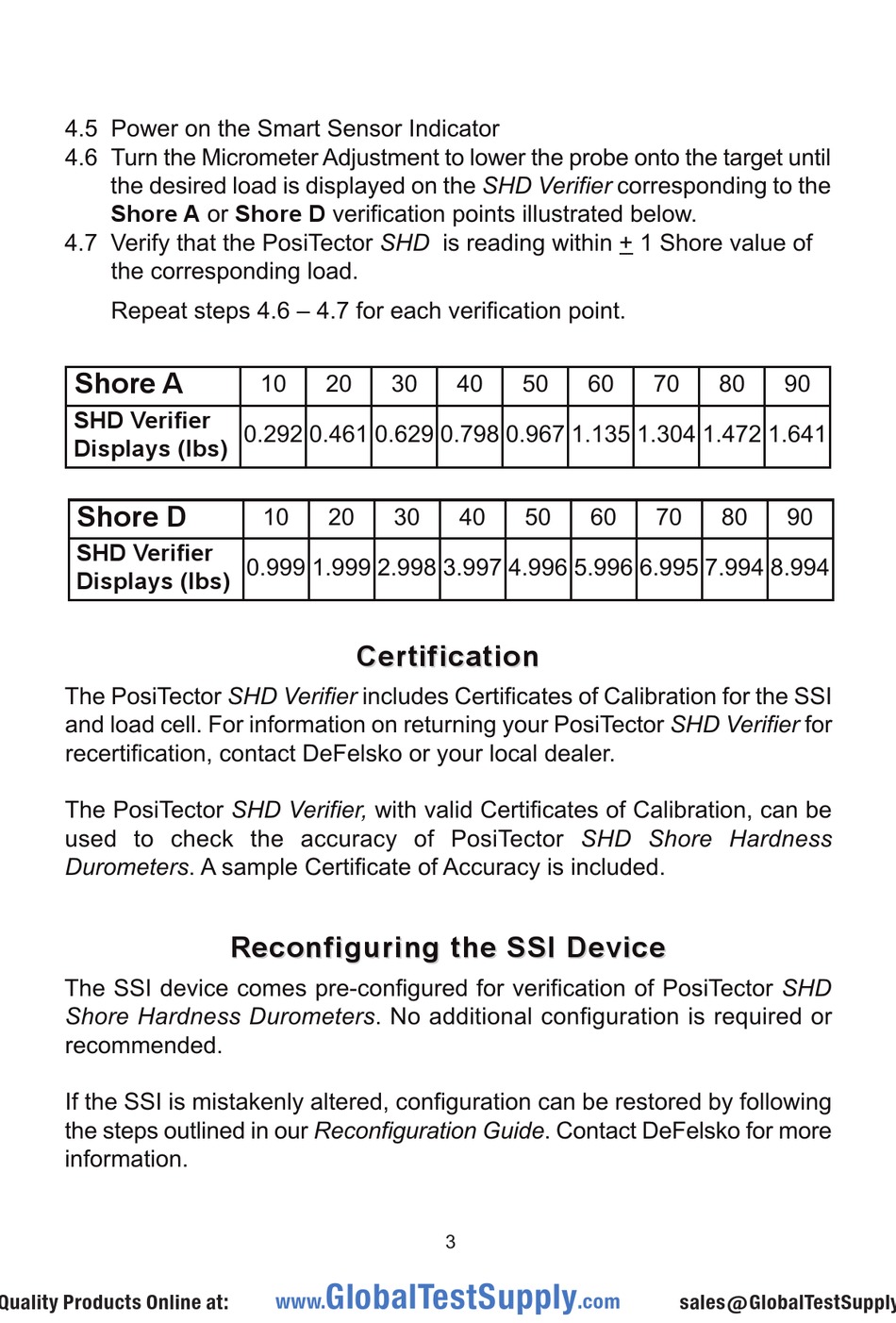

4.5 Power on the Smart Sensor Indicator
4.6 Turn the Micrometer Adjustment to lower the probe onto the target until
the desired load is displayed on the SHD Verifier corresponding to the
Shore A or Shore D verification points illustrated below.
4.7 Verify that the PosiTector SHD is reading within + 1 Shore value of
the corresponding load.
Repeat steps 4.6 – 4.7 for each verification point.
Shore A
SHD Verifier
Displays (lbs)
Shore D
SHD Verifier
Displays (lbs)
The PosiTector SHD Verifier includes Certificates of Calibration for the SSI
and load cell. For information on returning your PosiTector SHD Verifier for
recertification, contact DeFelsko or your local dealer.
The PosiTector SHD Verifier, with valid Certificates of Calibration, can be
used to check the accuracy of PosiTector SHD Shore Hardness
Durometers. A sample Certificate of Accuracy is included.
The SSI device comes pre-configured for verification of PosiTector SHD
Shore Hardness Durometers. No additional configuration is required or
recommended.
If the SSI is mistakenly altered, configuration can be restored by following
the steps outlined in our Reconfiguration Guide. Contact DeFelsko for more
information.
Quality Products Online at:
10 20 30
0.292 0.461 0.629 0.798 0.967 1.135 1.304 1.472 1.641
10 20 30
0.999 1.999 2.998 3.997 4.996 5.996 6.995 7.994 8.994

Certification

Certification

Reconfiguring the SSI Device

Reconfiguring the SSI Device
GlobalTestSupply
www.
40 50 60
40 50 60
3
.com
70 80 90
70 80 90
