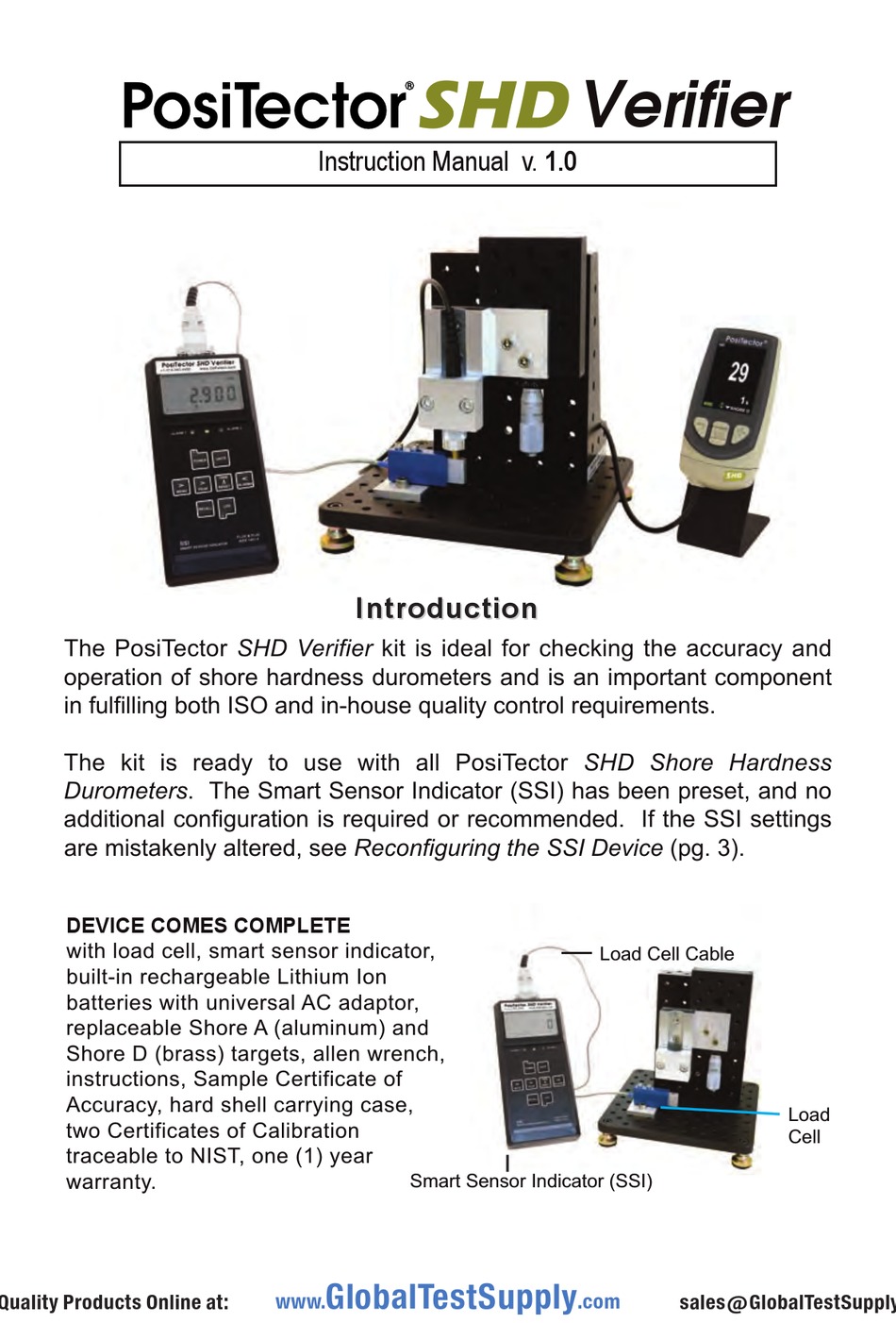

DeFelsko PosiTector SHD Verifier Instruction Manual

The PosiTector SHD Verifier kit is ideal for checking the accuracy and

operation of shore hardness durometers and is an important component

in fulfilling both ISO and in-house quality control requirements.

The kit is ready to use with all PosiTector SHD Shore Hardness

Durometers. The Smart Sensor Indicator (SSI) has been preset, and no

additional configuration is required or recommended. If the SSI settings

are mistakenly altered, see Reconfiguring the SSI Device (pg. 3).

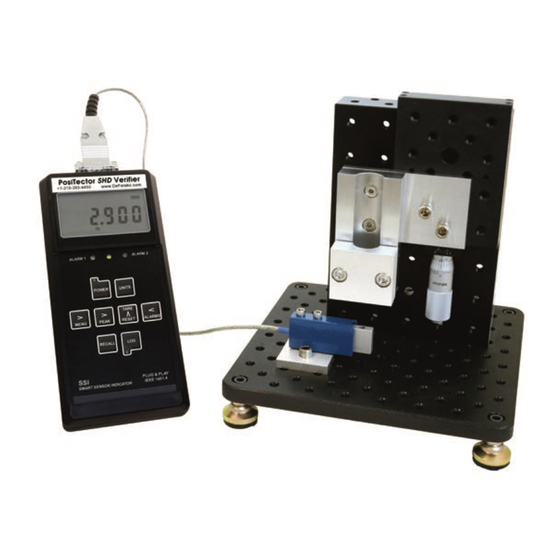

DEVICE COMES COMPLETE

with load cell, smart sensor indicator,

built-in rechargeable Lithium Ion

batteries with universal AC adaptor,

replaceable Shore A (aluminum) and

Shore D (brass) targets, allen wrench,

instructions, Sample Certificate of

Accuracy, hard shell carrying case,

two Certificates of Calibration

traceable to NIST, one (1) year

warranty.

Quality Products Online at:

Instruction Manual v. 1.0

Introduction

Smart Sensor Indicator (SSI)

GlobalTestSupply

www.

Verifier

Load Cell Cable

.com

sales@GlobalTestSupply

Load

Cell

Table of Contents

Do you have a question about the PosiTector SHD Verifier and is the answer not in the manual?

Page 1 Instruction Manual v. 1.0 Introduction Introduction The PosiTector SHD Verifier kit is ideal for checking the accuracy and operation of shore hardness durometers and is an important component in fulfilling both ISO and in-house quality control requirements. The kit is ready to use with all PosiTector SHD Shore Hardness Durometers.
Page 2 PosiTector SHD Verifier Set-up PosiTector SHD Verifier Set-up Remove the PosiTector SHD Verifier Probe and Smart Sensor Indicator from the case. Holder Make sure to place the PosiTector SHD Micrometer Verifier on a stable flat surface. Target Adjustment Connect the Load Cell Cable to...
Page 3 Certification The PosiTector SHD Verifier includes Certificates of Calibration for the SSI and load cell. For information on returning your PosiTector SHD Verifier for recertification, contact DeFelsko or your local dealer. The PosiTector SHD Verifier, with valid Certificates of Calibration, can be used to check the accuracy of PosiTector SHD Shore Hardness Durometers.
Page 4 Returning for Service Returning for Service If you need to return the PosiTector SHD Verifier for service, describe the problem fully and include reading results, if any. Be sure to include contact information including your company name, company contact, telephone...
