Positector Shd Verifier Set-Up; Quick Calibration Procedure - DeFelsko PosiTector SHD Verifier Instruction Manual

1. Remove the PosiTector SHD Verifier
and Smart Sensor Indicator from the case.
Make sure to place the PosiTector SHD
Verifier on a stable flat surface.
2. Connect the Load Cell Cable to
the Smart Sensor Indicator

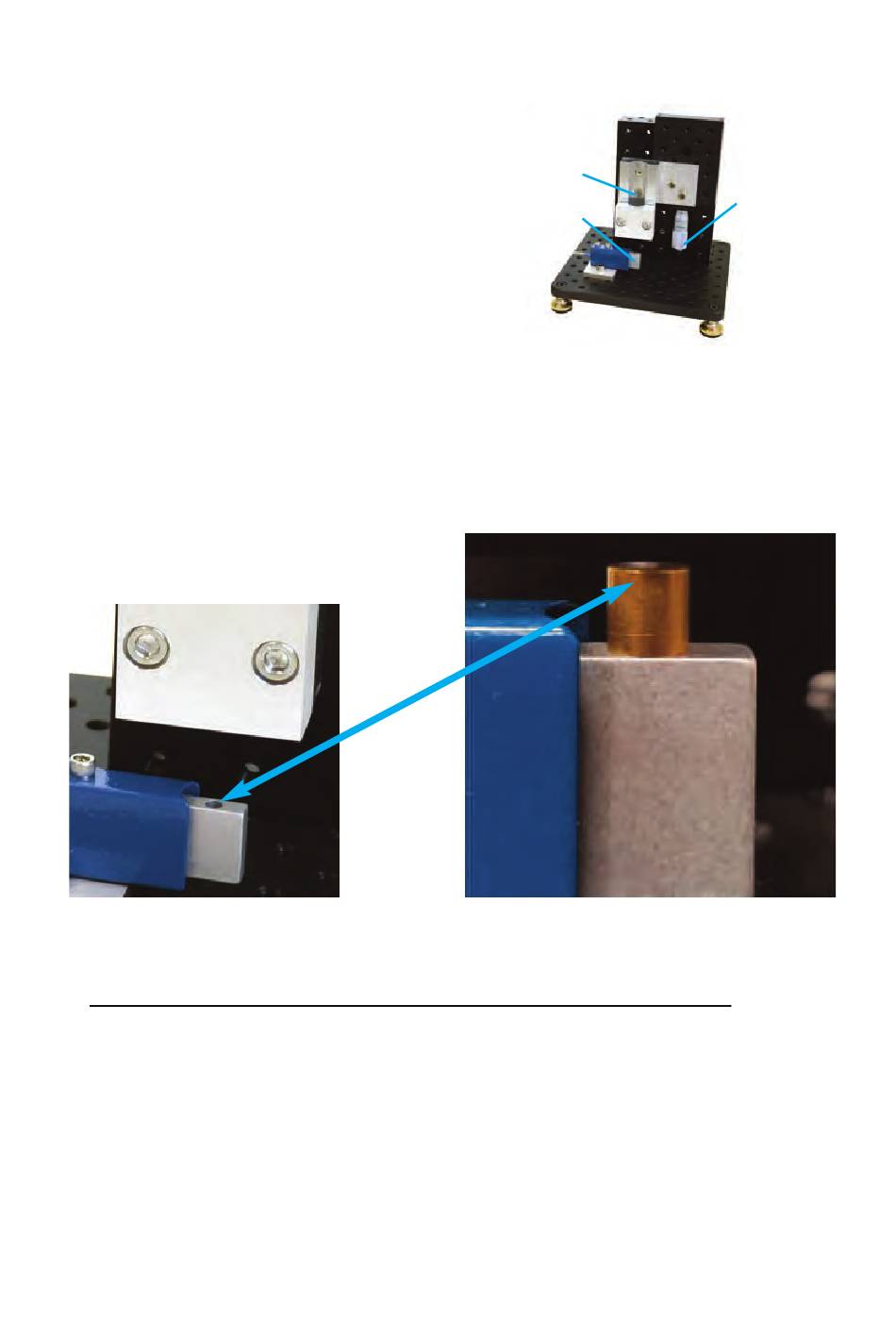

3. Select a SHD A (aluminum) or SHD D (brass) target and insert it into
the load cell as shown. Note: Inspect the targets before installing. To
prevent damage to the PosiTector SHD D probe tip, the SHD D (brass)
target is designed to be dented during testing and will periodically need to
be replaced. The SHD A (aluminum) target will not be dented during testing
and should be replaced if there is any damage to the top surface.
For detailed instructions see the PosiTector SHD Calibration Procedure
4.1 Perform a Gage Reset on the PosiTector SHD
4.2 Select Continuous Reading Mode from the Setup menu on the
PosiTector SHD.
4.3 Turn the Micrometer Adjustment so that it is set between 1 and 2.
4.4 Place the PosiTector SHD probe into Probe Holder. Ensure that the
probe tip doesn't touch the target.
Quality Products Online at:

PosiTector SHD Verifier Set-up

PosiTector SHD Verifier Set-up

Quick Calibration Procedure

Quick Calibration Procedure
GlobalTestSupply
www.
Probe
Holder
Target
2
.com
Micrometer
Adjustment
SHD
Target
