operation

Extending the Room

1. Level the coach.
2.
Verify the battery is fully charged and hooked up to the electrical system.
3.
If so equipped, remove the transit bars.
4. Make sure the room path is clear, both inside and outside the coach.
5.
Check the slide-out awning. Some awnings must be manually unlocked before operating the slide-out.
6.
Press and hold the IN/OUT switch in the OUT position until the room is fully extended and stops
moving.
7.
Release the switch, which will lock the room into position.

Retracting the Room

1.
Verify coach is level.
2.
Verify the battery is fully charged and hooked up to the electrical system.
3. Make sure the room path is clear, both inside and outside the coach.
4.
Press and hold the IN/OUT switch in the IN position until the room is fully retracted and stops moving.
5.
Release the switch, which will lock the room into position.
6. Check the slide-out awning. Some awnings must be manually locked before traveling.
7.
If so equipped, install transit bars.

Manually Overriding the Slide-Out

Your slide-out system is equipped with a manual crank override that extends or retracts the room in the
event of a loss of power (Fig.1.) The crank mode uses a
override nut located on the motor's gear box (Fig. 3).
Note: Optionally, it is permissible to use an adjustable wrench on the square drive shaft to crank the room
in or out (Fig. 2).
If the room does not move when the switch is pressed, check the following:
• Battery is fully charged and connected.
• The transit bars are removed.
• All system fuses/circuit breakers and relays are good.
Rev: 04.04.19

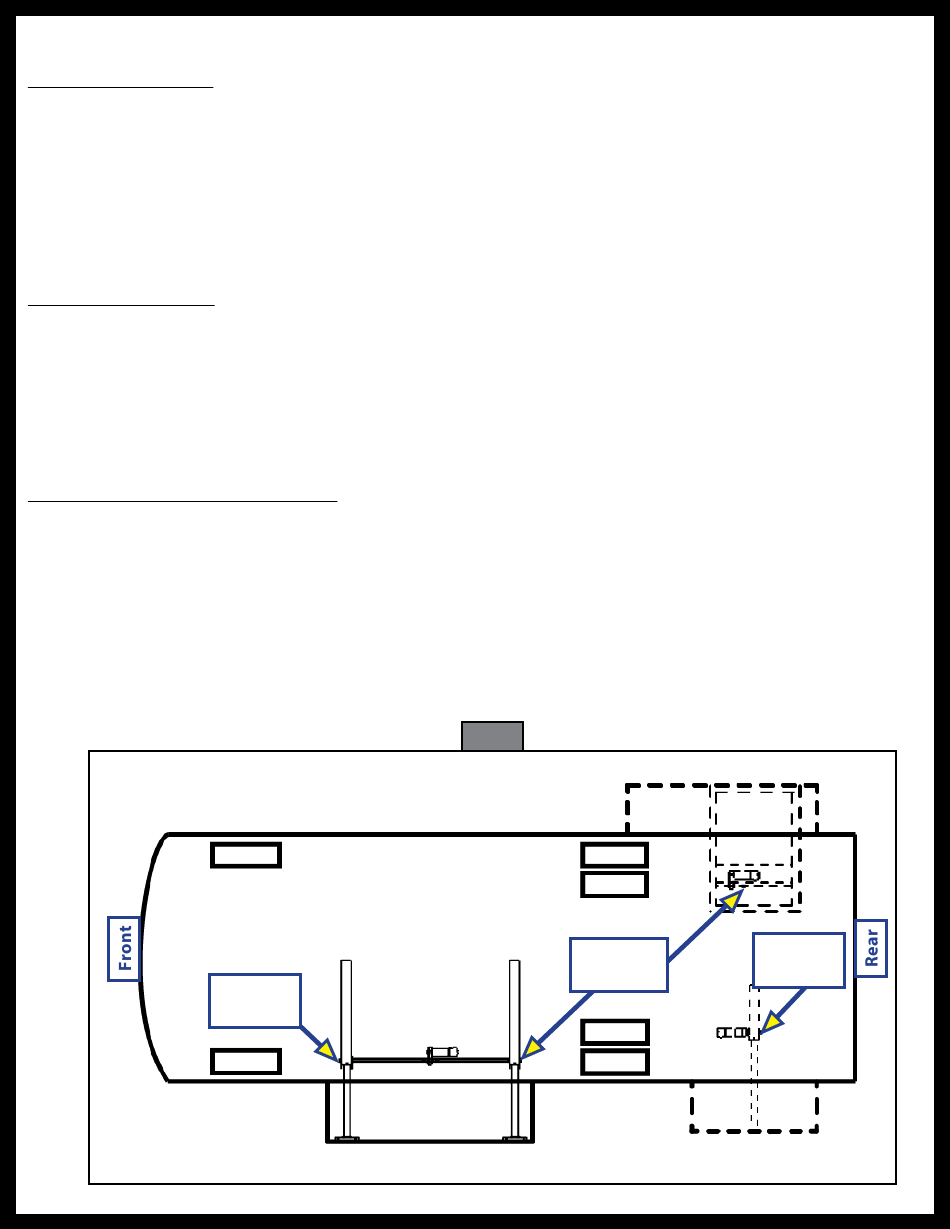

tire
override
Location
tire
Main Room Slide
3/4
" ratchet or wrench to turn the
Fig. 1
tire
tire
override
Locations
tire
tire
Page 3
3/4
" hex head
Bedroom Slide, Gas
override
Location
Bedroom Slide, Diesel
CCD-0001615
