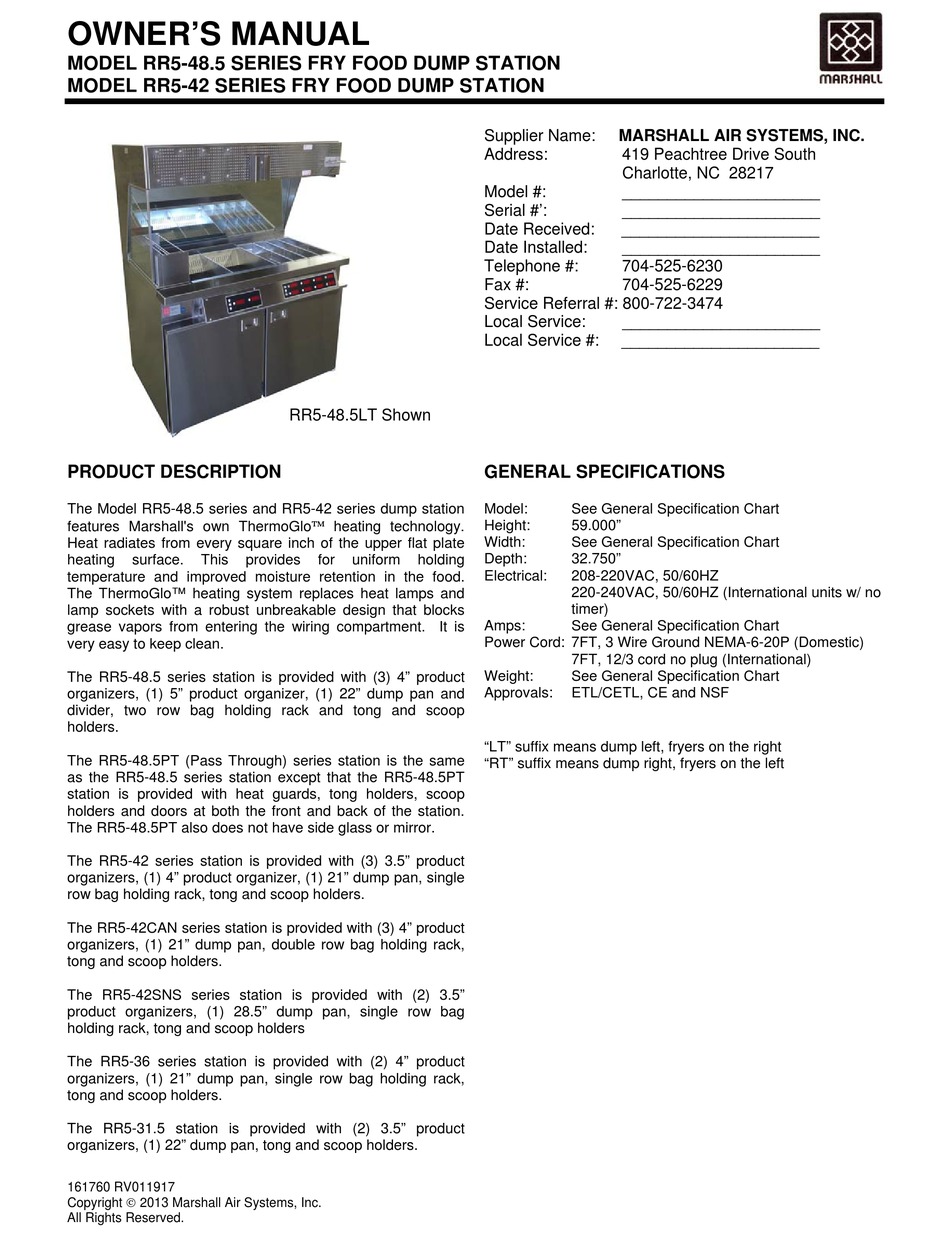

OWNER'S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
PRODUCT DESCRIPTION
The Model RR5-48.5 series and RR5-42 series dump station
features Marshall's own ThermoGlo heating technology.
Heat radiates from every square inch of the upper flat plate
heating surface. This provides
temperature and improved moisture retention in the food.
The ThermoGlo™ heating system replaces heat lamps and
lamp sockets with a robust unbreakable design that blocks
grease vapors from entering the wiring compartment. It is
very easy to keep clean.
The RR5-48.5 series station is provided with (3) 4" product
organizers, (1) 5" product organizer, (1) 22" dump pan and
divider, two row bag holding rack and tong and scoop
holders.
The RR5-48.5PT (Pass Through) series station is the same
as the RR5-48.5 series station except that the RR5-48.5PT
station is provided with heat guards, tong holders, scoop
holders and doors at both the front and back of the station.
The RR5-48.5PT also does not have side glass or mirror.
The RR5-42 series station is provided with (3) 3.5" product
organizers, (1) 4" product organizer, (1) 21" dump pan, single
row bag holding rack, tong and scoop holders.
The RR5-42CAN series station is provided with (3) 4" product
organizers, (1) 21" dump pan, double row bag holding rack,
tong and scoop holders.
The RR5-42SNS series station is provided with (2) 3.5"
product organizers, (1) 28.5" dump pan, single row bag
holding rack, tong and scoop holders
The RR5-36 series station is provided with (2) 4" product
organizers, (1) 21" dump pan, single row bag holding rack,
tong and scoop holders.
The RR5-31.5 station is provided with (2) 3.5" product
organizers, (1) 22" dump pan, tong and scoop holders.
161760 RV011917
Copyright  2013 Marshall Air Systems, Inc.
All Rights Reserved.

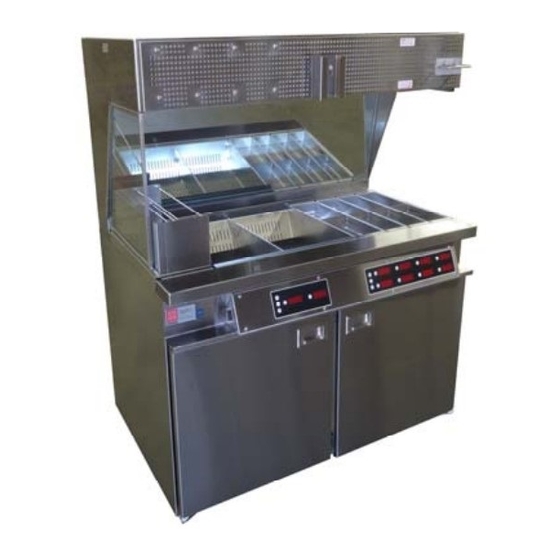

RR5-48.5LT Shown
for uniform holding
Supplier Name: MARSHALL AIR SYSTEMS, INC.
Address: 419 Peachtree Drive South
Charlotte, NC 28217
Model #: ______________________
Serial #': ______________________
Date Received: ______________________
Date Installed: ______________________
Telephone #: 704-525-6230
Fax #: 704-525-6229
Service Referral #: 800-722-3474
Local Service: ______________________
Local Service #: ______________________
GENERAL SPECIFICATIONS
Model: See General Specification Chart
Height: 59.000"
Width: See General Specification Chart
Depth: 32.750"
Electrical: 208-220VAC, 50/60HZ
220-240VAC, 50/60HZ (International units w/ no
timer)
Amps: See General Specification Chart
Power Cord: 7FT, 3 Wire Ground NEMA-6-20P (Domestic)
7FT, 12/3 cord no plug (International)
Weight: See General Specification Chart
Approvals: ETL/CETL, CE and NSF
"LT" suffix means dump left, fryers on the right
"RT" suffix means dump right, fryers on the left
