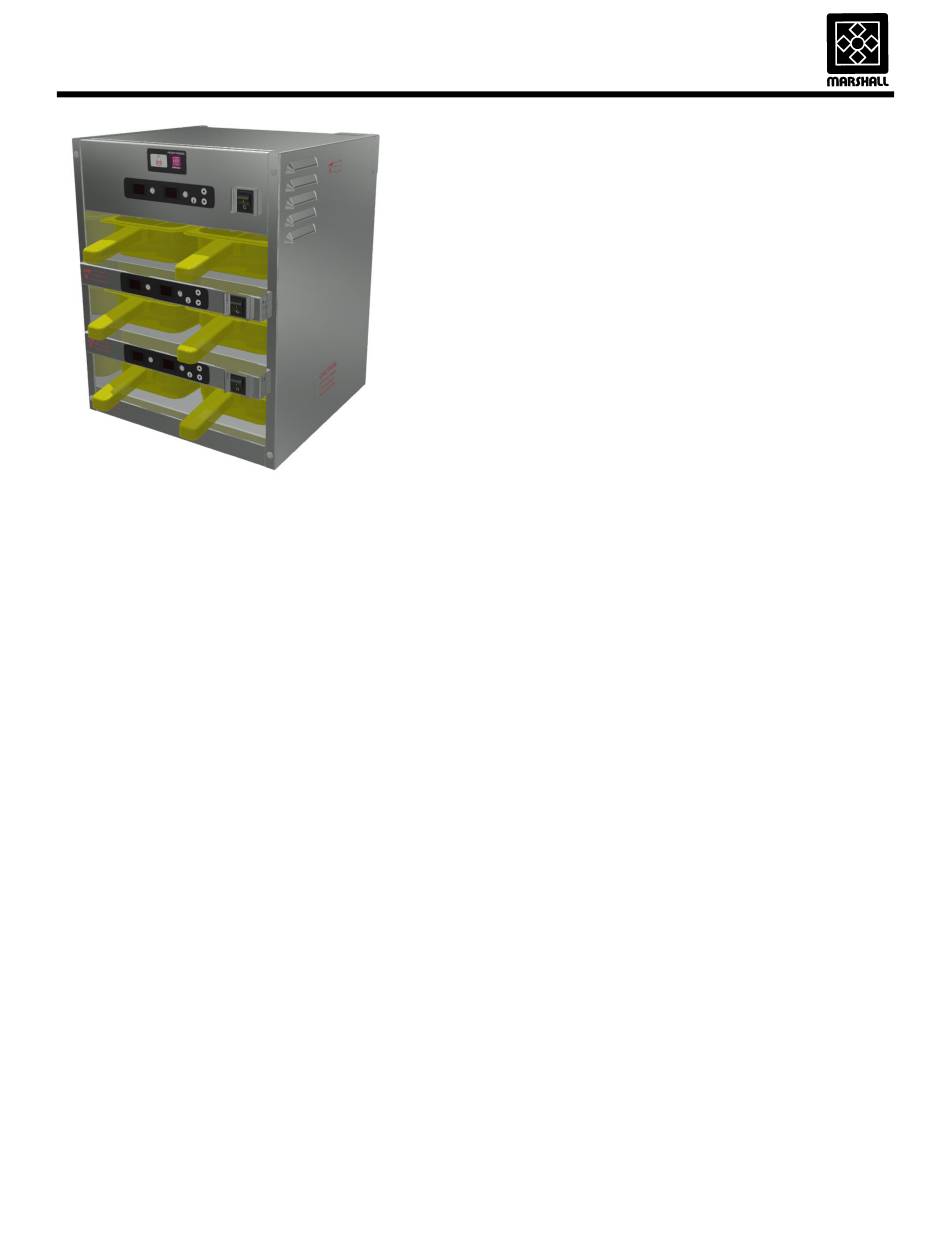

OWNER'S MANUAL

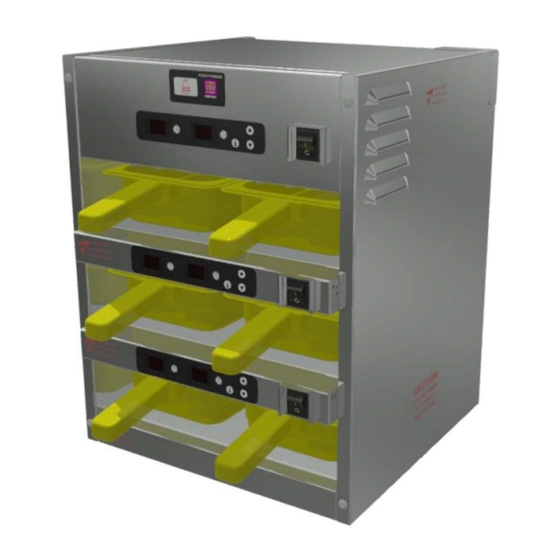

MODEL DH5F-333ARB – HEATED HOLDING CABINET
PRODUCT DESCRIPTION
The heated holding cabinet features Marshall's own
ThermoGlo™ heating technology. Heat radiates from
every square inch of the upper and lower flat plate
heating surfaces. This eliminates the need to clean
intricate calrod, wire and reflector assemblies.
The cabinet can accommodate up to two 1/3 size pans
2 ½" deep per deck.
The cabinet features a time and temperature control
as well as an on/off switch for each deck. This allows
the user to run only the deck(s) of the cabinet needed
to support the level of business during each part of the
day or day of the week. Each pan has an associated
three-digit display for the time and two LED indicator
lights to the left and right of the time display. The LED
will direct the operator which pans should be used first
by displaying a green light while the back-up pan LED
will display a red light.
169178 RV020216
Copyright © 2016 Marshall Air Systems, Inc.
All Rights Reserved.
Supplier Name:
MARSHALL AIR SYSTEMS, INC.
Address:
419 Peachtree Drive South
Charlotte, NC 28217
Model #:
______________________
Serial #:
______________________
Date Received:
______________________
Date Installed:
______________________
Telephone #:
704-525-6230
Fax #:
704-525-6229
Service Referral #:
800-722-3474
Local Service Name: _____________________
_____________________
_____________________
Local Service #:
_____________________
GENERAL SPECIFICATIONS
Height:
19.750"
Width
15.375"
Depth:
15.625"
Weight:
70 lbs
# of Deck:
3
# Pans per Deck:
2
Electrical:
120V/9A
36" Long w/ NEMA 5-15 plug
Cord:
Approvals:
NSF, ETL/CETL
Patent Pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DH5F-333ARB and is the answer not in the manual?

Questions and answers

Related Manuals for Marshall Amplification DH5F-333ARB

Summary of Contents for Marshall Amplification DH5F-333ARB

  • Page 1 OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET Supplier Name: MARSHALL AIR SYSTEMS, INC. Address: 419 Peachtree Drive South Charlotte, NC 28217 Model #: ______________________ Serial #: ______________________ Date Received: ______________________ Date Installed: ______________________ Telephone #: 704-525-6230 Fax #: 704-525-6229...
  • Page 2 OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE AVERTISSEMENT Ne pas entreposer ni utiliser de l’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil, ni de tout autre appareil.

  • Page 3: Table Of Contents

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET TABLE OF CONTENTS PRE-INSTALLATION........................1 FINAL INSTALLATION ........................1 OPERATION ..........................1-2 PROGRAMMING ..........................3 DEFAULT PRESET VALUES ......................4 DAILY MAINTENANCE ........................4 MONTHLY MAINTENANCE ......................5 TROUBLESHOOTING ......................... 6-8 REPLACEMENT PARTS ......................9-10 I LLUSTRATIONS OVERALL DIMENSIONS DH5F-333ARB ................

  • Page 5: Pre-Installation

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET PRE-INSTALLATION 1. The cabinet is packaged to minimize the risk of shipping damage. Immediately upon receipt, make certain to inspect the cabinet for damage. FILE ALL CLAIMS WITH THE FREIGHT CARRIER. 2. Unpack and inspect the cabinet. IF ANY CONCEALED DAMAGE, FILE ALL CLAIMS WITH THE FREIGHT CARRIER.

  • Page 6: Replacement Parts Dh5F-333Arb

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET PREHEAT: 1. The controller will stay in preheat mode ("PHt") for the entire preheat period (preheat time parameter) even though both heaters (top and bottom) have reached set points before the end of that period.

  • Page 7: Programming

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET PROGRAMMING HOLDING TIME: 1. To change a timer channel holding time value, the unit needs to be in preheat mode “PHt” or in idle mode "---". 2. Press and hold for 3 seconds the timer start/stop button for the channel to be changed. The display will then flash the current setting in minutes.

  • Page 8: Default Preset Values

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET DEFAULT PRESET VALUES: DH5F-333ARB Deck Deck Deck Left Channel Holding Time (min) Right Channel Holding Time (min) Top Heater Set Point (ºF) Bottom Heater Set Point (ºF) Drop Time (%) Pre-heat (min) Pre-heat Bypass (ºF)

  • Page 9: Monthly Maintenance

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET MONTHLY MAINTENANCE 1. Follow the daily schedule; there are no adjustments. 2. Unplug cabinet. Do not pull on cord to unplug. Grasp plug to unplug. See photo to the right. 3. Move cabinet and clean cabinet as described in Daily Cleaning and Counter.

  • Page 10: Troubleshooting

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET TROUBLESHOOTING CHART Before trouble shooting is started: check unit is plugged in, check for tripped circuit breaker and check that power switch on. ** DISASSEMBLING HEATER VOIDS WARRANTY ** PROBLEM POSSIBLE CAUSE SOLUTION A.
  • Page 11 OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET PROBLEM POSSIBLE CAUSE SOLUTION 3. UNIT NOT HEATING D. SOLID STATE RELAY D. REPLACE SOLID STATE HAS DC VOLTAGE, RELAY NOT ALLOWING POWER TO PASS THROUGH E. HEATING BLANKET E. LOOSE WIRES, REPLACE...
  • Page 12 OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET PROBLEM POSSIBLE CAUSE SOLUTION 8. ERROR CODE: A. TEMPERATURE A. RECONNECT SENSOR WIRES TEMPERATURE SENSOR "OPN" "UP" OR "LO" “OPEN BECAME WIRES TEMPERATURE DISCONNECTED SENSOR” B. BAD SENSOR B. REPLACE SENSOR “...

  • Page 13: Replacement Parts

    OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET REPLACEMENT PARTS Part Replacement Time: 6 min Part Replacement Time: 43 min Part Replacement Time: 43 min 504323 - Blanket, Heater 120V 504324 - Blanket, Heater 120V 501193 - Connector, Strain Relief...
  • Page 14 OWNER’S MANUAL MODEL DH5F-333ARB – HEATED HOLDING CABINET REPLACEMENT PARTS Part Replacement Time: 1 min – Rear Cover – Feet, Rubber Black 168982 504331 - Pan, 1/3 Amber 2 1/2" Tall 501867 Replace if damaged or missing. Replace if damaged or missing.
