OWNER'S MANUAL
MODEL DH5F-333WND – HHC FOR WENDY'S MODERN LAYOUT
MODEL DH5G-3333WND AND DH5H-3WND – HHC FOR WENDY'S IMAGE LAYOUT

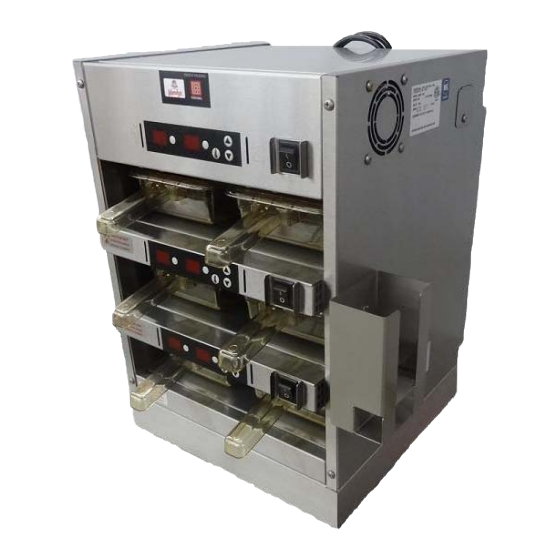

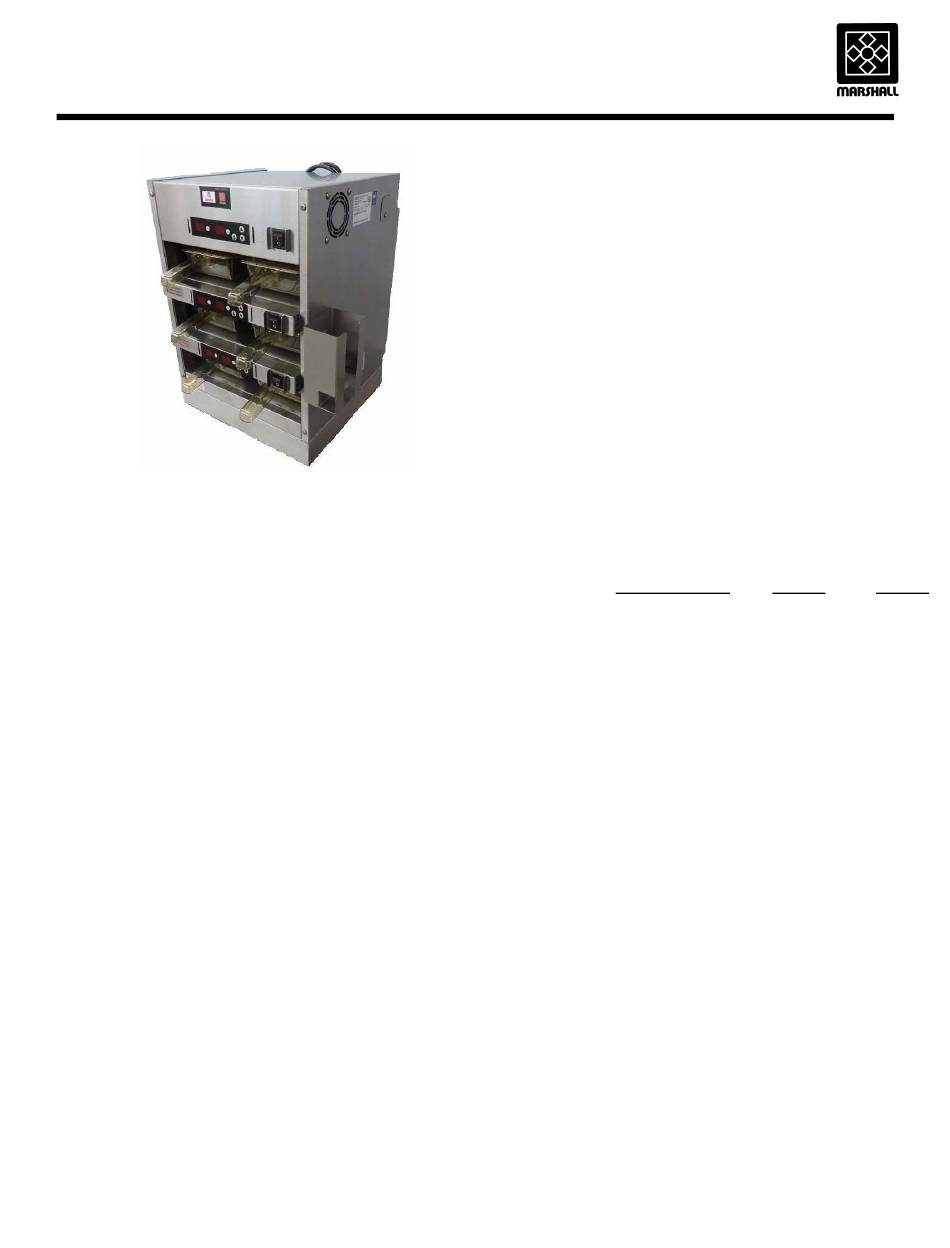

DH5F-333WND shown
PRODUCT DESCRIPTION
These nugget cabinets utilize Marshall's proprietary
ThermoGlo™ technology in conjunction with circulated
air. The DH5F-333WND with its three decks and two
pans wide has been designed to fit into Wendy's new
Modern and SB/In-Line fry station layouts. The DH5G-
3333WND with its four decks single pan wide and the
DH5H-3WND with its single deck two pans wide are
paired together to fit into Wendy's Image station
layout. The holding times have been lengthened for
Wendy's nuggets to 60 minutes and fish to 45 minutes.
The nugget cabinets feature a time and temperature
control as well as an on/off switch for each of their
decks. This allows the user to run only the decks of
the nugget cabinet needed to support the level of
business during each part of the day or day of the
week. Each pan has an associated three-digit display
for the time and two LED indicator lights to the left and
right of the time display.
operator which pans should be used first by displaying
a green light while the back-up pan LED will display a
red light.
These nugget cabinets are the following Wendy's part
numbers:
DH5F-333WND is V1503-DH5F333
DH5G-3333WND is V1504-DH5G3333
DH5H-3WND is V1505-DH5H3
162880 RV121814
Copyright © 2013 Marshall Air Systems, Inc.
All Rights Reserved.
The LED will direct the
Supplier Name: MARSHALL AIR SYSTEMS, INC.
Address: 419 Peachtree Drive South
Charlotte, NC 28217
Model #: ______________________
Serial #: ______________________
Date Received: ______________________
Date Installed: ______________________
Telephone #: 704-525-6230
Fax #: 704-525-6229
Service Referral #: 800-722-3474
Local Service Name: _____________________
_____________________
_____________________
Local Service #: _____________________
GENERAL SPECIFICATIONS
61" SB/In-Line
81.5 MODERN
DH5F-333WND DH5G-3333WND DH5H-3WND
Height: 21.875"
Width
w/o Tong Holder: 15.375"
w/ Tong Holder: 16.875"
Depth: 18.250"
Weight: 75 lbs
# of Deck: 3
# Pans per Deck: 2
Electrical: 120V/9A
Cord: 36" Long w/ NEMA 5-15 plug
Approvals: NSF, ETL/CETL
Patent Pending
41" 41"
I MAGE IMAGE
U U U U
28.750" 9.625"
9.375" 15.375"
N/A N/A
18.250" 17.500"
105 lbs 30 lbs
4 1
1 2
120V/6.6A 120V/3.1A
