OWNER'S MANUAL
MODEL DH1-1010 SERIES – HEATED HOLDING UNIT

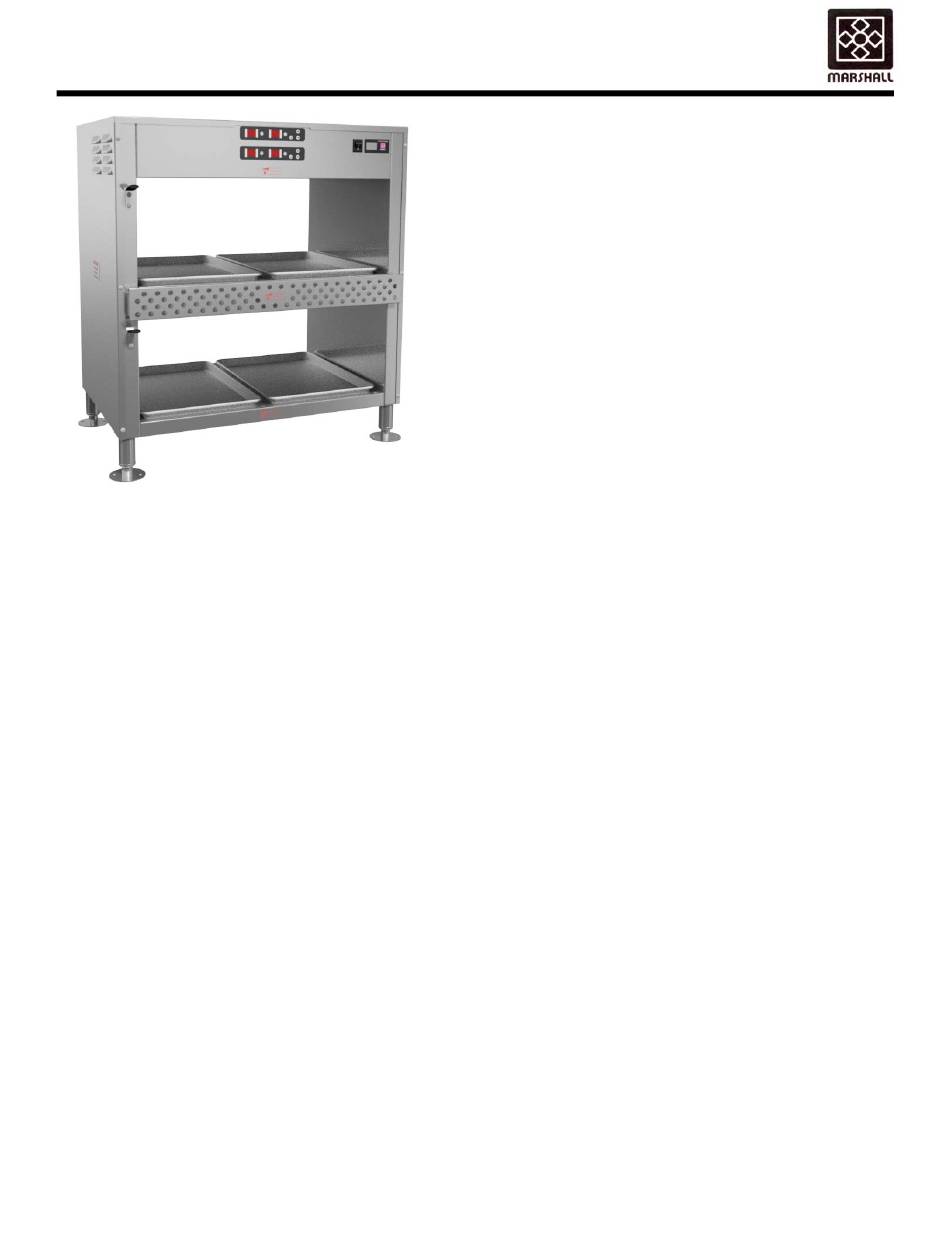

PRODUCT DESCRIPTION
The heated holding cabinet features Marshall's own
ThermoGlo™ heating technology. Heat radiates from
every square inch of the upper and lower flat plate
heating surfaces. This eliminates the need to clean
intricate calrod, wire and reflector assemblies.
This DH5 Heated Holding Unit series can accommodate
up to two half sheet or one full sheet pan per deck.
It also features a time/temperature controller for each
deck in the unit. These integrated time/temperature
controllers independently control each shelf top and
bottom temperatures and also have one timer channel
for each 1/3 pan in the unit for full control flexibility and
maximum product integrity. An On/Off switch for each
deck is easily accessible to the store personnel allowing
them to turn on and off any desired deck.
These Heated Holding Units offer the latest in
technological design which gives you the most favorable
holding characteristics in a system that is simple to work
with and operate.
174830 RV120817
Copyright © 2017 Marshall Air Systems, Inc.
All Rights Reserved.
Supplier Name:
MARSHALL AIR SYSTEMS, INC.
Address:
419 Peachtree Drive South
Charlotte, NC 28217
Model #'s:
______________________
Serial #'s:
______________________
Date Received:
______________________
Date Installed:
______________________
Telephone #:
704-525-6230
Fax #:
704-525-6229
Service Referral #:
800-722-3474
Local Service Name: ______________________
Local Service #:
______________________
______________________
GENERAL SPECIFICATIONS
Models:
DH1-1010 Series
# of Deck:
2
# Pans per Deck: One Full Pan or Two ½ Sheet Pan
Height:
34.000"
Width:
30.875"
Depth:
19.875"
Weight:
125 Lbs.
Electrical:
208V – L1:8.6A, L2:8.6A, N:5.6A,
G:0
Cord:
7' Long w/NEMA L14-20 plug
Approvals:
NSF, ETL/CETL
Patent Pending
