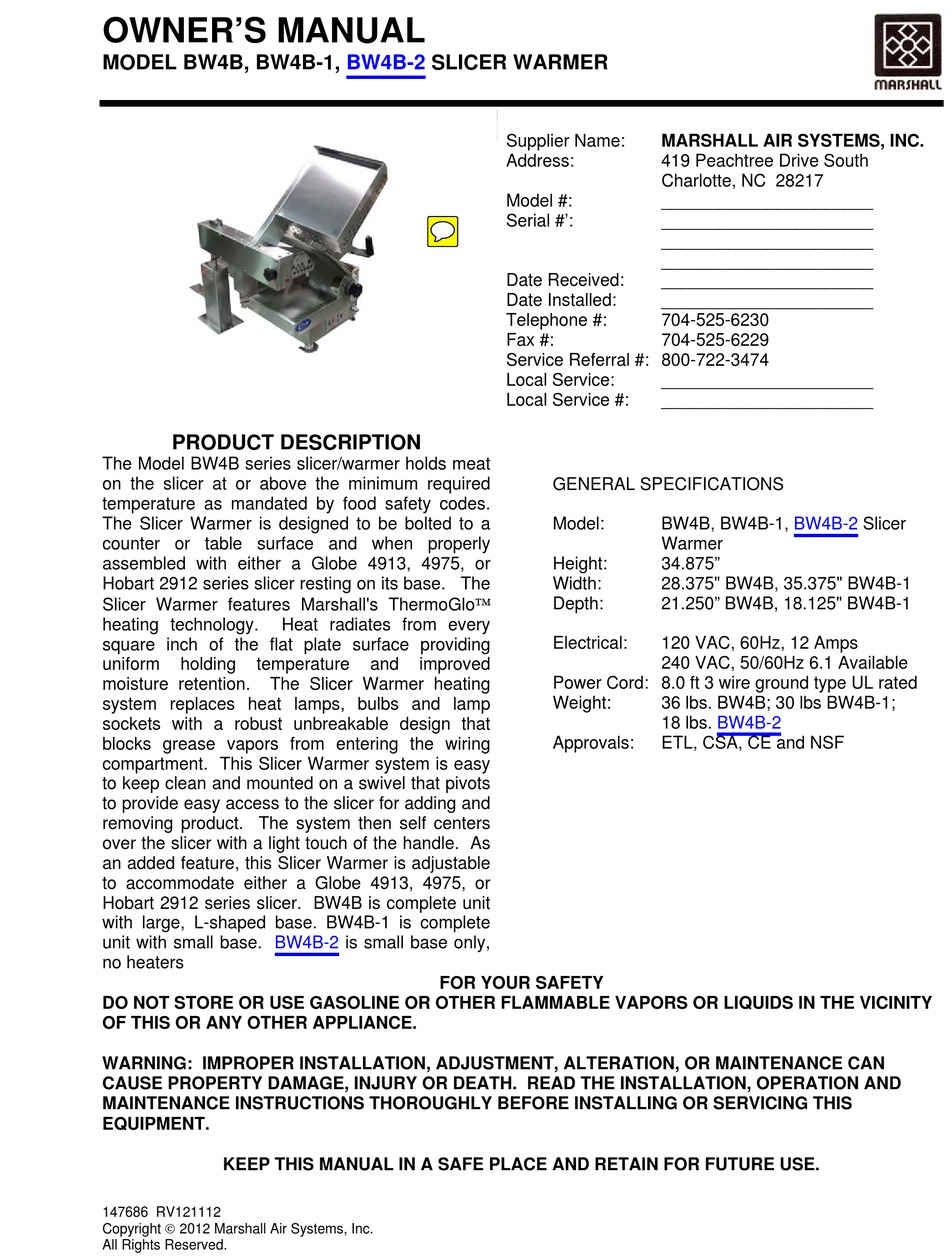

OWNER'S MANUAL
MODEL BW4B, BW4B-1,
PRODUCT DESCRIPTION
The Model BW4B series slicer/warmer holds meat
on the slicer at or above the minimum required
temperature as mandated by food safety codes.
The Slicer Warmer is designed to be bolted to a
counter or table surface and when properly
assembled with either a Globe 4913, 4975, or
Hobart 2912 series slicer resting on its base. The
Slicer Warmer features Marshall's ThermoGlo
heating technology.
Heat radiates from every
square inch of the flat plate surface providing
uniform
holding
temperature
moisture retention.
The Slicer Warmer heating
system replaces heat lamps, bulbs and lamp
sockets with a robust unbreakable design that
blocks grease vapors from entering the wiring
compartment. This Slicer Warmer system is easy
to keep clean and mounted on a swivel that pivots
to provide easy access to the slicer for adding and
removing product. The system then self centers
over the slicer with a light touch of the handle. As
an added feature, this Slicer Warmer is adjustable
to accommodate either a Globe 4913, 4975, or
Hobart 2912 series slicer. BW4B is complete unit
with large, L-shaped base. BW4B-1 is complete
unit with small base.
BW4B-2
no heaters
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER APPLIANCE.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, OR MAINTENANCE CAN
CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.
KEEP THIS MANUAL IN A SAFE PLACE AND RETAIN FOR FUTURE USE.
147686 RV121112
Copyright  2012 Marshall Air Systems, Inc.
All Rights Reserved.
BW4B-2
SLICER WARMER
Supplier Name:
Address:
Model #:
Serial #':
Date Received:
Date Installed:
Telephone #:
Fax #:
Service Referral #: 800-722-3474
Local Service:
Local Service #:
and
improved
is small base only,
FOR YOUR SAFETY
MARSHALL AIR SYSTEMS, INC.
419 Peachtree Drive South
Charlotte, NC 28217
______________________
______________________
______________________
______________________
______________________
______________________
704-525-6230
704-525-6229
______________________
______________________
GENERAL SPECIFICATIONS
Model:
BW4B, BW4B-1,
Warmer
Height:
34.875"
Width:
28.375" BW4B, 35.375" BW4B-1
Depth:
21.250" BW4B, 18.125" BW4B-1
Electrical:
120 VAC, 60Hz, 12 Amps
240 VAC, 50/60Hz 6.1 Available
Power Cord: 8.0 ft 3 wire ground type UL rated
Weight:
36 lbs. BW4B; 30 lbs BW4B-1;
18 lbs.
BW4B-2
Approvals:
ETL, CSA, CE and NSF
BW4B-2
Slicer
