- Page 1 User Manual PV10M/R Near-infrared Palm Device Version: 1.0 Date: June 2020...
- Page 2 Preface Thank you for choosing our product PV10M/R Near-infrared Palm Device. Please read this User Manual carefully before use. We strongly believe that Palm Vein Device brings you and your customers an excellent user experience and will uplift your Brand Image and the Management to a higher level.
-
Page 3: Table Of Contents
Content 1. Introduction ........................................1 2. Dimensions .......................................... 2 3. Technical Speci cations ....................................4 4. Technical Features ......................................6 5. Installation Procedure ....................................7 6. Maintenance and Cleanliness Guidelines ............................19 7. FAQ ............................................20... -
Page 4: Introduction

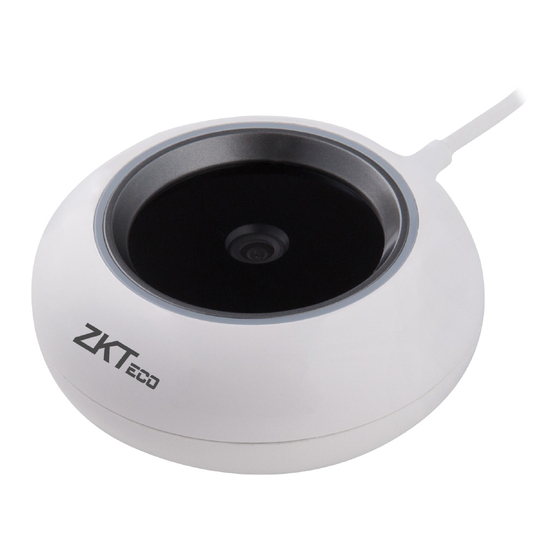

1. Introduction PV10M/R is a touchless device which is used to capture the palm and vein features. It uses a near-infrared ll light, a wide dynamic image sensor, and an aspherical distortion-free camera system. It can capture the palm and vein images under the palm skin, thus o ering an excellent anti-spoo ng performance. -
Page 5: Dimensions
2. Dimensions PV10R... - Page 6 PV10M Connector pinout (7pin 1.25mm) Pin 1 +5 V Pin 2 Pin 3 Shield GND Pin 4 USB D- Pin 5 USB D+ Pin 6 Reserved Pin 7 Reserved...
-
Page 7: Technical Speci Cations
-10°C to 45°C / 14°F to 113°F Humidity 0 to 90% RH Lighting Environment Enrollment <800 Lux; Authentication <2000 Lux PV10M : 52.4 * 52.4 * 16.8mm (±1 mm) Dimensions PV10R : 41.5 * 34 mm (Radius*Height) Windows Windows XP / Windows 7 / Windows10 (32/64bits) Android Android 4.1 or higher version... - Page 8 Recognition Angle Roll ± 60°, Pitch ± 30° Recognition Method 1:1 and 1:N ZKPalm SDK Capacity 6,000 templates Accuracy FRR=0.68% when FAR=0.001% Recognition Time <300ms (Quad-core Cortex-A9 up to 1.6GHz) Certi cations CE, FCC, RoHS...
-
Page 9: Technical Features
4. Technical Features Touchless technology with small size, and easy integration Built-in distance detection sensor e ectively reduces the standby power consumption Wide dynamic image sensor to adapt ambient light in a wide range Palm recognition range from 20cm to 35cm Captures high-quality palm vein images even when the palm is dry &... -
Page 10: Installation Procedure
5. Installation Procedure PV10M/R Drive Installation Note: You need to install the driver when you use the device for the rst time only. The users who have installed the driver before do not need to install it again. Save the installation package in your system. Unzip and open the driver installation package. - Page 12 Connect the PV10M/R to your system. Open the Device Manager of your system. First select Computer, right-click and then select Manage. Since the relevant driver is not installed initially, the device is regarded as an unknown device as shown in...
- Page 13 Now install the driver. At this time, return to the location where the driver installation folder is placed, and open the Drive installation instructions.txt le in the folder, and follow the description in the second article...
- Page 14 Then unplug and insert the device USB port, you can see that the computer can recognize the device-PV10M/R, as shown in 4 in the gure below. Finally, the driver installation is successful.
- Page 16 Operation Palm Placement Place the palm at 20 to 35cm above the device (The optimal distance is 10 to 12cm). Keep the whole palm parallel to the equipment. Ensure that the palm is at the center of the sensor area. Stretch the palm normally without any bends.
- Page 17 Incorrect Positions Fingers together Fingers bent Not parallel to the device...
- Page 18 Demo Test Double-click the ZKPalmDemo icon to open the demo test interface. Once the interface is opened, click Connect.
- Page 19 Enter the User ID and click Enroll to register the palm vein.
- Page 20 After successful registration, the system automatically starts verifying the user’s palm vein.
- Page 21 Precautions Please keep your palm clean. Place your palm at the center of the palm vein scanner. Please avoid bending or tilting your palm.
-
Page 22: Maintenance And Cleanliness Guidelines
6. Maintenance and Cleanliness Guidelines Maintenance Please keep the product away from water. Protect the product from falling, colliding and so on. Do not intentionally power on or power o the product. Cleanliness Please Keep the product away from dust. Use an adhesive tape to clean the collecting area. -
Page 23: Faq
What are the steps to be followed if the user registration is failed? Answer: Firstly, please con rm that PV10M/R has been already connected to the system, and then open the demo for initialization. Secondly, verify if the palm position, angle, and the palm placing distance are proper. Read the pop-up error code and check the reason for the error by comparing with the development document. - Page 24 If the user is already registered, please con rm that the same palm is being veri ed. Also, check that the palm is placed at a proper distance and meet the veri cation requirements. During veri cation, the palm should be adjusted in time according to the collected image, so that PV10M/R can better recognize the user’s palm. Installation Tips The product’s operating environment is indoor, please do not use it directly in outdoor bright light.
- Page 25 If you have any disputes about the use of equipment regarding human rights or privacy, please negotiate internally. ZKTeco’s other palm devices or development tools have the ability to collect the original image of a citizen's palm. If users consider it as an infringement act, please contact the Government or the end provider of the equipment.
