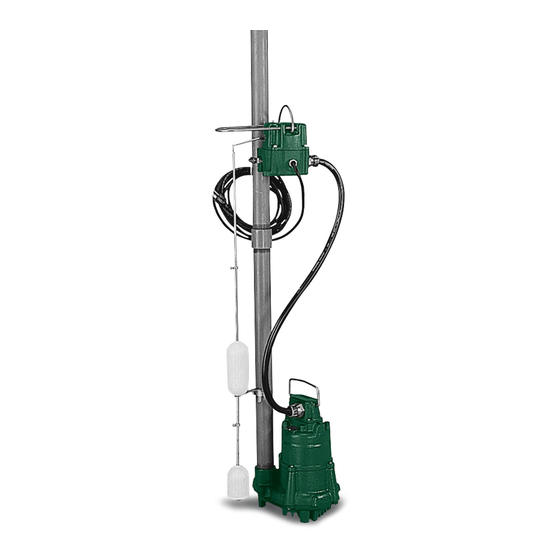

Zoeller Water Solutions 3098 Series Installation Instructions

Your Peace of Mind is Our Top Priority
Product information presented
here reflects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
AVAILABLE MODELS HIGH TEMPERATURE PUMPS
SERIES
3098 Series
3137 Series
3139 Series
3161 Series
3163 Series
3282 Series
Nonautomatic (N or E) models with a watertight junction box (for outdoor or above ground installations) are available in all series.

PREINSTALLATION CHECKLIST - ALL INSTALLATIONS

1. Inspect your pump. Occasionally, products are damaged during shipment. If the unit is damaged, contact your dealer before using. dO NOT remove the test plugs in the cover
nor the motor housing.
2. Carefully read the literature provided to familiarize yourself with specific details regarding installation and use. These materials should be retained for future reference.
1. Make sure there is a properly grounded receptacle available. All pumps are
furnished with provisions for proper grounding to protect you against the possibility
of electrical shock.
(SEE WARNING BELOW)
2. Make certain that the receptacle is within the reach of the pump's power supply cord.
DO NOT USE AN EXTENSION CORD. Extension cords that are too long or too light
do not deliver sufficient voltage to the pump motor. But, more important, they could
present a safety hazard if the insulation were to become damaged or the connection
end were to fall into the sump.
3. Make sure the pump electrical supply circuit is equipped with fuses or circuit
breakers of proper capacity. A separate branch circuit is recommended, sized accord-
ing to the "National Electrical Code" for the current shown on the pump nameplate.
4. Testing for ground. As a safety measure, each electrical outlet should be checked
for ground using an Underwriters Laboratory Listed circuit analyzer which will indicate
if the power, neutral and ground wires are correctly connected to your outlet. If they
are not, call a qualified licensed electrician.
5. For Added Safety. Pumping and other equipment with a 3-prong grounded plug must
be connected to a 3-prong grounded receptacle. For added safety the receptacle
may be protected with a ground-fault circuit interrupter. When a pump needs to be
connected in a watertight junction box, the plug can be removed and spliced to the
supply cable with proper grounding. For added safety this circuit may be protected
by a ground-fault circuit interrupter. The complete installation must comply with the
1. Check to be certain your power source is capable of handling the voltage requirements
of the motor, as indicated on the pump name plate.
2. Check valves used in High Temperature service must be all metal swing type check
valves.
3. Repair and service should be performed by Zoeller Pump Company Authorized Service
Station only.
®
®
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
INSTALLATION INSTRUCTIONS
H.P. DISCHARGE
½ 1½"
½ 1½"
½ 1½"
½ 1½" or 2" or 3"
½ 1½" or 2" or 3"
½ 2" or 3"
© Copyright 2012 Zoeller Co. All rights reserved.
SOLIDS PH
½" 1
5/8" 1
5/8" 1
3/4" 1
3/4" 1
2" 1
SEE BELOW FOR LIST OF WARNINGS
National Electrical Code and all applicable local codes and ordinances.
6. FOR YOUR PROTECTION, ALWAYS dISCONNECT PUMP FROM ITS POWER
SOURCE BEFORE HANdLING. Single phase pumps are supplied with a 3-prong
grounded plug to help protect you against the possibility of electrical shock. dO
NOT UNdER ANY CIRCUMSTANCES REMOVE THE GROUNd PIN. The 3-prong
plug must be inserted into a mating 3-prong grounded receptacle. If the installation
does not have such a receptacle, it must be changed to the proper type, wired and
grounded in accordance with the National Electrical Code and all applicable local
codes and ordinances. Pumps must be installed in accordance with the National
Electrical Code and all applicable local codes and ordinances. Pumps are not to be
installed in locations classified as hazardous in accordance with National Electrical
Code, ANSI/NFPA 70.
7. "Risk of electrical shock" Do not remove power supply cord and strain relief or
connect conduit directly to the pump.
8. Installation and servicing of electrical circuits and hardware should be performed by
a qualified licensed electrician.
9. Pump installation and servicing should be performed by a qualified person.
10. Risk of electric shock - These pumps have not been investigated for use in swimming
pool and marine areas.
11. According to the state of California (Prop 65), this product contains chemicals known to
the state of California to cause cancer and birth defects or other reproductive harm.
SEE BELOW FOR LIST OF CAUTIONS
4. Dewatering and effluent sump pumps are not designed to handle raw sewage.
5. Maximum continuous operating temperature for high temperature pumps must not
exceed 200°F - 93°C.
6. Cable from disconnect to control box (consumer furnished) should be rated 105°C.
REFER TO WARRANTY ON PAGE 2.
SECTION: 6.10.055
FM0807
Supersedes
visit our web site:
www.zoeller.com
MATERIAL
Cast Iron
Cast Iron
Bronze
Cast Iron
Cast Iron
Cast Iron
0809
0407
