Zoeller 370-0002 Installation Instructions

Notice to Installer: Instructions
must remain with installation.
Product information presented
here refl ects conditions at time of
publication. Consult factory regarding
discrepancies or inconsistencies.

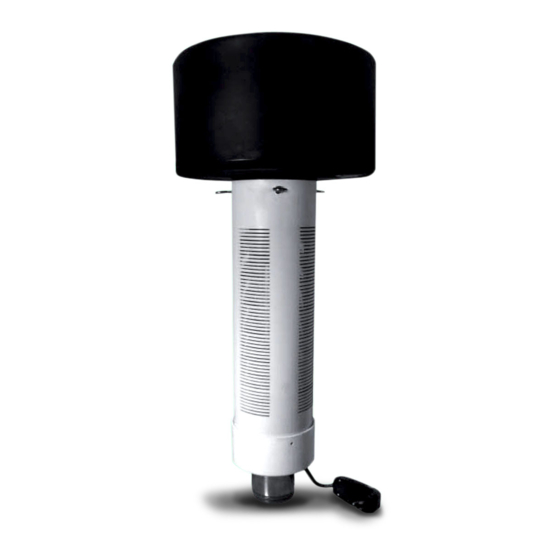

AERATION/FOUNTAIN PUMP MODEL 370-0002
These installation instructions are applicable for Model 370-0002 Aeration/Fountain Pump only.
This pump system is designed for decorative use and can improve water aeration.
PREINSTALLATION CHECKLIST - ALL INSTALLATIONS
ATTENTION: READ CAREFULLY BEFORE ATTEMPTING TO INSTALL OR OPERATE YOUR PUMP. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL
SAFETY INFORMATION AND ADDITIONAL INSTRUCTIONS INCLUDED WITH EQUIPMENT. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN
PERSONAL INJURY AND/OR PROPERTY DAMAGE! RETAIN FOR FUTURE REFERENCE.
1. Make sure that the pump is plugged into a properly grounded electri-
cal receptacle. Use an Underwriters Laboratory listed circuit analyzer
to test for proper installation of the circuit and ground. Any service to
circuits or receptacles should be conducted by a qualified licensed
electrician.
2. Do not remove the ground pin from the plug under any circumstances.
If the ground pin is damaged, replace the power cord or plug before
use.
3. All electrical installations must conform to the requirements of the National
Electrical Code and all local codes.
4. System furnished with a 100 ft. power cord with 3-prong GFCI plug;
must connect to properly grounded receptacle of grounding type. Do not
remove ground pin on plug. Do not extend the cord length by splicing or
with an extension cord.
5. Disconnect power before servicing the pump or motor by unplugging
the unit from the outlet.
6. Do not touch the motor when operating and allow the motor
to cool before touching.
7. Pump is built to handle clear water only; it is not designed to handle water
containing sand, silt or other abrasives.
8. Do not use to pump flammable or explosive fluids such as
gasoline, fuel oil, kerosene, etc. Do not use in flammable and/
or explosive atmospheres.
9. Do not use this product in hazardous environments or anywhere
a spark could potentially ignite explosive gases.
10. Do not handle this product with wet hands or while standing in water or
on a wet or damp surface.
1. Make certain that the power source conforms to the requirements of the
equipment as stated on the product nameplates and wire motor for cor-
rect voltage. See motor nameplate.
2. Periodically inspect the pump for damage and perform routine
maintenance as required.
3. The maximum temperature of the pumped liquid must not exceed
120°F.
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
INSTALLATION INSTRUCTIONS
SEE BELOW FOR LIST OF WARNINGS
11. Units are supplied with an automatically resetting thermal overload device
12.
13. "No Swimming" and/or warning signs should be posted per state and local
14. Do not ground to a gas supply line.
15. Protect the power cable from coming in contact with sharp objects, oil,
16. According to the state of California (Prop 65), this product contains chemi-
17. NEVER leave the control box, fused disconnect switch or cover open
18. Water leaving nozzle is at high velocity and can cause bodily injury if
19. Never examine, make wiring changes or touch the motor before discon-
20. GFI plug must be oriented with cord coming out the bottom and protected
SEE BELOW FOR LIST OF CAUTIONS
4. Supply voltage must be within ± 10% of nameplate voltage. Incorrect
© Copyright 2010. All rights reserved.
1
and can restart without warning.
Provide a means of pressure relief if the pump discharge can
be shut off or obstructed. Pumps operating against a closed
discharge can create very hot pumped liquid, which can cause
burns.
codes. Please affix included warning label to power receptacle or junction
box.
grease hot surfaces or chemicals. DO NOT kink the power cable. If
damaged, replace immediately.
cals known to the state of California to cause cancer and birth defects or
other reproductive harm.
(either partially or completely) when not being worked on by a competent
electrician.
contact is made.
necting the main electrical supply switch. The thermal device may have
opened the electrical circuit. All motors should be equipped with a cor-
rectly fused disconnect switch to provide protection. Consult local or
United States National Electrical Codes for proper fuse protection based
on motor data chart.
from direct rainfall.
voltage can cause fire or seriously damage motor and voids warranty. If
in doubt, consult a licensed electrician.
REFER TO WARRANTY ON PAGE 2.
SECTION: 6.10.143
