Zoeller Basement Sentry Series Quick Start Manual

Your Peace of Mind is Our Top Priority
Product information presented
here reflects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
1. Inspect your pump. Occasionally, products are damaged during shipment. If the unit or any of the parts are damaged, contact your dealer before using.
2. Read all the installation instructions regarding installing and start up. Retain for future reference.
1. Testing for Ground. As a safety measure each electrical outlet should
be checked for ground using an Underwriters Laboratory listed circuit
analyzer, which will indicate if the power, neutral and ground wires are
correctly connected to your outlet. If they are not, call a qualified, licensed
electrician.
2. For your protection always disconnect the power supply from its power
source before handling the components of your DC backup pump or the
primary pump.
3. Installation and checking of electrical circuits and hardware should be
performed by a qualified, licensed electrician.
4. All electrical and safety codes must be followed in addition to the National
Electrical Code and all applicable local codes.
5. It is the owner's responsibility to check the battery and battery
connection at least once a month. Batteries contain acid and
caution must be taken when handling.
6. Risk of electric shock - These pumps have not been investigated for use
in swimming pool areas.
7. According to the state of California (Prop 65), this product contains
chemicals known to the state of California to cause cancer and birth
defects or other reproductive harm.
®
®
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624

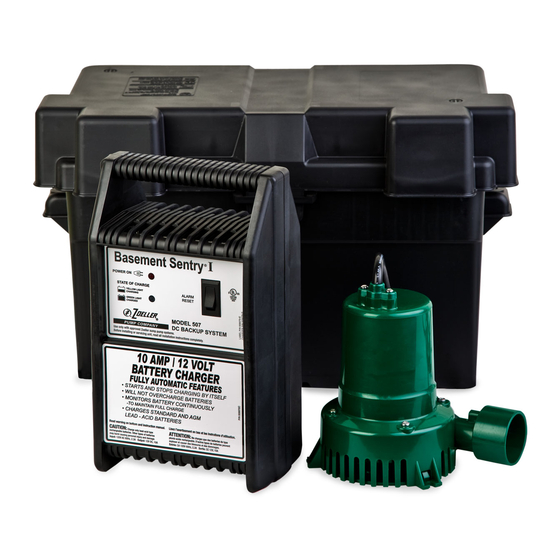

MoDeL 507
12 VoLt Dc BAtteRY BAcKUP PUMP
PREINSTALLATION CHECKLIST
SEE BELOW FOR
LIST OF WARNINGS
© Copyright 2013 Zoeller Co. All rights reserved.
®
1. Make sure there is a properly grounded 115V receptacle available. Do
not use primary pump circuit. The location must be within 6' of the control
box and battery. The power supply for your DC control system plugs
directly into the 115V outlet. DO NOT USE AN ExTENSION CORD.
2. Make sure the 115V electrical supply circuit is equipped with fuses or
circuit breakers of proper capacity.
3. DC emergency pumps are designed for handling clear water. Do not use
in septic tanks to pump effluent or sewage pits to pump sewage.
4. Repair and service of your DC backup system should be performed by
an authorized service station.
5. The installation of DC automatic backup pumps requires the use of a
variable level float switch for operation. It is the responsibility of the
installing party, to ensure that the float switch will not hang up on the
pump apparatus or pit peculiarities and is secured so the pump will turn
"on" and "off". It is recommended that the pit be 18" in diameter or larger
to accommodate both a primary and a DC backup pump.
Turbulence caused by high velocity incoming
water can cause the DC pump to airlock. If this condition exists,
the incoming water must be baffled to avoid excessive turbulence.
RefeR to WARRAntY on PAge 2.
Section: 6.10.070
FM1311
0113
Supersedes
1011
visit our web site:
www.zoeller.com
®
SEE BELOW FOR
LIST OF CAUTIONS
