Aurora

Mounting

1

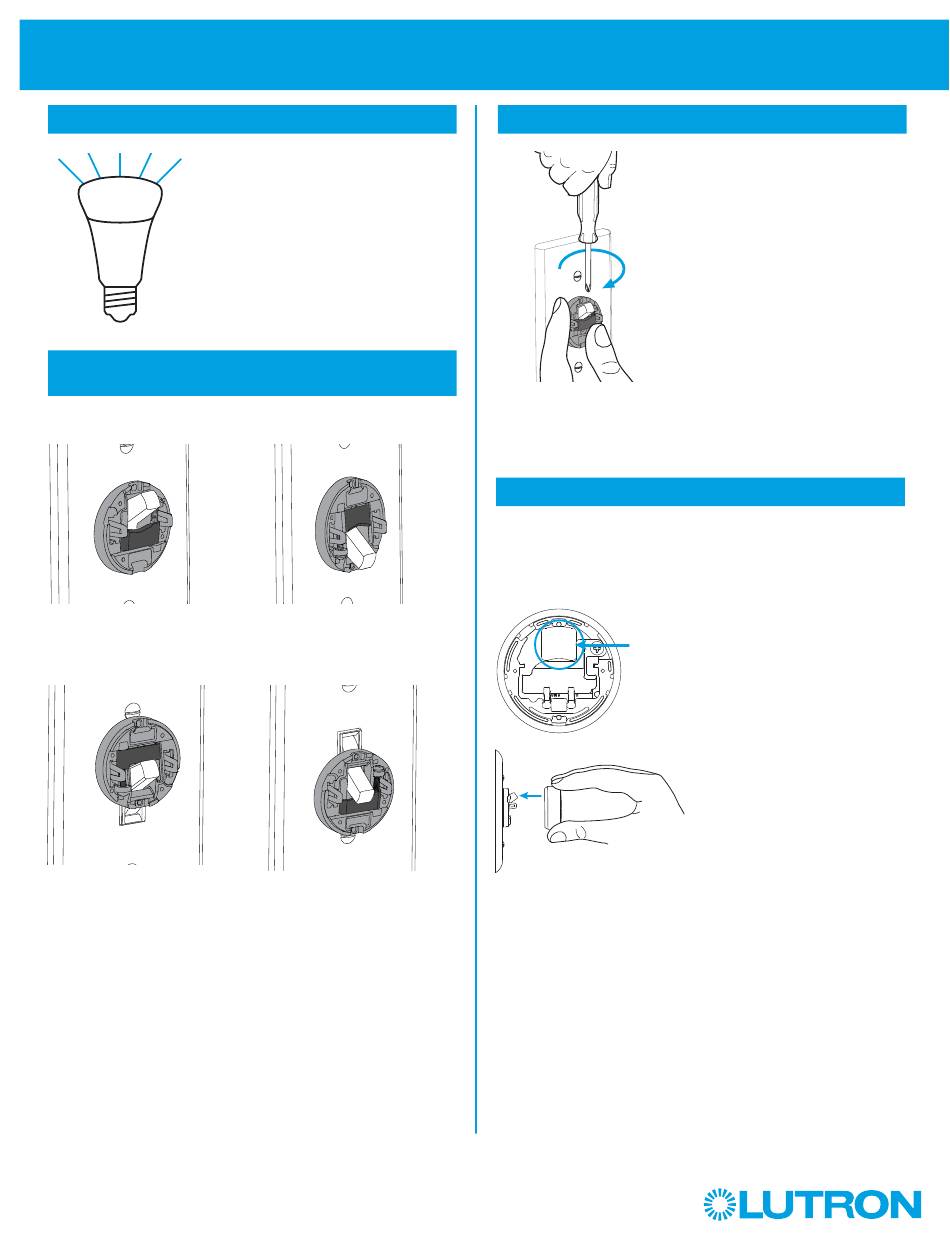

Make sure light is ON
2 While the light is ON, place base over the toggle
switch as shown
CORRECT
OR
INCORRECT
AND
NOTE: If there is more than one switch which controls a set
of lights, some of the switches on that circuit will be "up"
in the On position, and some will be "down" in the position
which usually indicates the switch is Off. Rotate the base
until it is as shown above.
3
Install mounting base
While holding the base against the wallplate, use a Phillips
head screwdriver to turn the screw until the clamp has securely
attached to the toggle switch.
4
Attach knob to mounting base
NOTE: To mount the knob on the base, it is important to align the
knob properly. The cutout in the back of the product is made to
accommodate your toggle switch. If the knob doesn't snap on
easily, double check the alignment.
Align opening with
toggle switch
Snap knob on to the mounting base.
9
