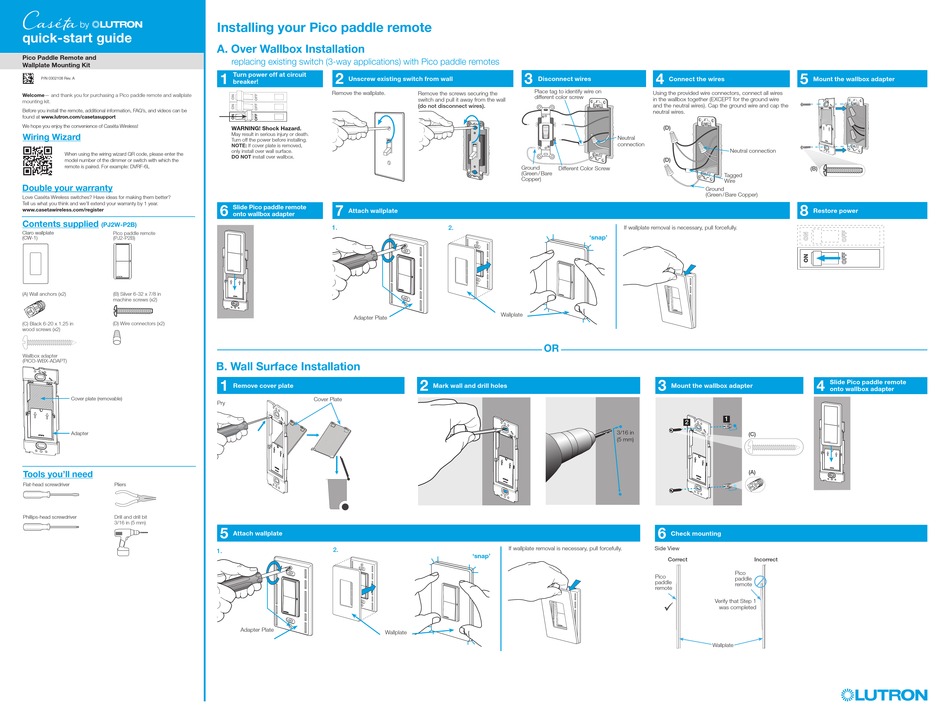

Lutron Electronics Caseta Pico Paddle Remote Quick Start Manual

quick-start guide
Pico Paddle Remote and
Wallplate Mounting Kit
P/N 0302108 Rev. A
Welcome— and thank you for purchasing a Pico paddle remote and wallplate
mounting kit.
Before you install the remote, additional information, FAQ's, and videos can be
found at www.lutron.com/casetasupport
We hope you enjoy the convenience of Caséta Wireless!
Wiring Wizard
When using the wiring wizard QR code, please enter the
model number of the dimmer or switch with which the
remote is paired. For example: DVRF-6L
Double your warranty
Love Caséta Wireless switches? Have ideas for making them better?
Tell us what you think and we'll extend your warranty by 1 year.
www.casetawireless.com/register
Contents supplied
(PJ2W-P2B)
Claro wallplate
Pico paddle remote
(CW-1)
(PJ2-P2B)
b
a
(A) Wall anchors (x2) (B) Silver 6-32 x 7/8 in
machine screws (x2)
(C) Black 6-20 x 1.25 in (D) Wire connectors (x2)
wood screws (x2)
Wallbox adapter
(PICO-WBX-ADAPT)
Cover plate (removable)
Adapter
Tools you'll need
Flat-head screwdriver Pliers
Phillips-head screwdriver Drill and drill bit
3/16 in (5 mm)
Installing your Pico paddle remote
A. Over Wallbox Installation
replacing existing switch (3-way applications) with Pico paddle remotes
1 2
Turn power off at circuit
Unscrew existing switch from wall
breaker!
T
Remove the wallplate.
WARNING! Shock Hazard.
WARNING! Shock Hazard. May result in serious injury or death.
May result in serious injury or death.
Turn off power before installing. NOTE: If cover plate is removed,
Turn off the power before installing.
only install over wall surface. DO NOT install over wallbox.
NOTE: If cover plate is removed,
only install over wall surface.
DO NOT install over wallbox.
6 7
Slide Pico paddle remote
Attach wallplate
1.
onto wallbox adapter
2.
1.
Adapter Plate
B. Wall Surface Installation
1
Remove cover plate
Cover Plate
Pry
5
Attach wallplate
2.
1.
Adapter Plate
Wallplate
3
Disconnect wires
1. 2.
Place tag to identify wire on
Remove the screws securing the
different color screw
switch and pull it away from the wall
(do not disconnect wires).
Ground Different Color Screw
(Green / Bare
Copper)
2.
Wallplate
OR
2
Mark wall and drill holes
If wallplate removal is necessary, pull forcefully.
'snap'
4
Connect the wires
Using the provided wire connectors, connect all wires
in the wallbox together (EXCEPT for the ground wire
and the neutral wires). Cap the ground wire and cap the
neutral wires.
(D)
Neutral
connection
Neutral connection
(D)
Tagged
Wire
Ground
(Green / Bare Copper)
If wallplate removal is necessary, pull forcefully.
'snap'
3
Mount the wallbox adapter
b a
1
2
3/16 in
(C)
(5 mm)
(A)
6
Check mounting
Side View
Correct Incorrect
Pico
Pico
paddle
paddle
remote
remote
Verify that Step 1

was completed
Wallplate
5
Mount the wallbox adapter
(B)
8
Restore power
4
Slide Pico paddle remote
onto wallbox adapter
