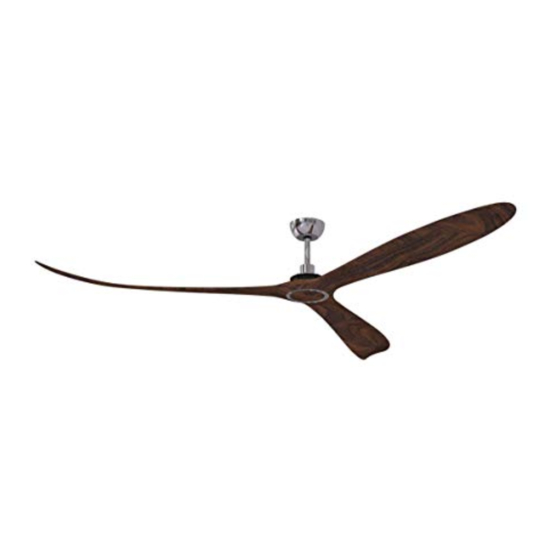

Cavallo

Installation Guide

For Model:

CVL100

WARNING

DC Motor will not operate

until blades are installed

net weight of fan: 11.46 lb (5.2 kg)

READ THESE INSTRUCTIONS AND

AND SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Cavallo CVL100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Cavallo CVL100

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND AND SAVE THEM FOR FUTURE USE Cavallo Installation Guide For Model: CVL100 Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Blade* Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a feet (76cm) clearance of 10ft. (3.05m) from the floor and 30in. (3.05m) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 12ft.
Page 5: Blade Assembly
5. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and break. Locate 9 blade attachment screws,9 lock washers,9 nuts,and 3 rubber washers in hardware pack. nuts &...
Page 6 6. Fan Assembly. (cont.) safety cable electrical wiring Loosen yoke set screws and nuts at top of motor housing. Remove pin and clip from motor housing yoke. [Refer to diagram 2.] downrod Determine the length of threaded downrod you wish to use. Thread safety cable and electrical wires through threaded end of downrod and pull yoke set screw and nut...
Page 7: Wiring. Pgs
wood ceiling joist 6. Fan Assembly. (cont.) safety cable loop With the hanging bracket secured to the outlet box and wood screw able to support the fan, you are now ready to hang your and washer fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 8: Canopy Assembly
7. Wiring. (cont.) outlet box wall control PLEASE NOTE: Wall and/or remote conrol must be used for fan to operate. If you do not wish to use the wall control, please proceed to Section 8 to continue with fan installation. green/ bare ground...
Page 9: Automated Learning Process./Activating Code
9. Automated Learning Process./Activating Code. REMOTE WALL CONTROL CONTROL LED LIGHT FAN OFF LED LIGHT IMPORTANT: FAN OFF LEARN Remote and wall controls must be FAN SPEED FAN SPEED S NC R ONI E with REVERSE REVERSE fan in order to properly function.
Page 10: Testing Your Fan
10. Testing Your Fan. It is recommended that you test fan before finalizing installation. Test wall control (optional installation) by locating ON/OFF slider switch on wall control, then set to ON position. Test fan speeds. Next, locate remote control. Test fan speed with different fan speed buttons (1 - 6).
Page 11: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. wired properly. Return fan, shipping prepaid, to Craftmade. We will repair 3. Check to be sure fan is wired properly. or ship you a replacement fan, and we will pay the return 4.
Page 12 Caution: This device complies with Part 15 of the FCC rules and Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications ...
