How It Works-222 DSO O~erators
on both the top and bottom of the cover. If the tabs don't seat easily
seat the top tabs first then press on the bottom of the cover to seat the
bottom tabs.
9. Push forward on the rear of the battery compartment cover to
engage the locking tabs.
10. Remember to recharge the low battery at the first opportunity. This
prevents it from going into a deep discharge state (see para. 6.1 1).

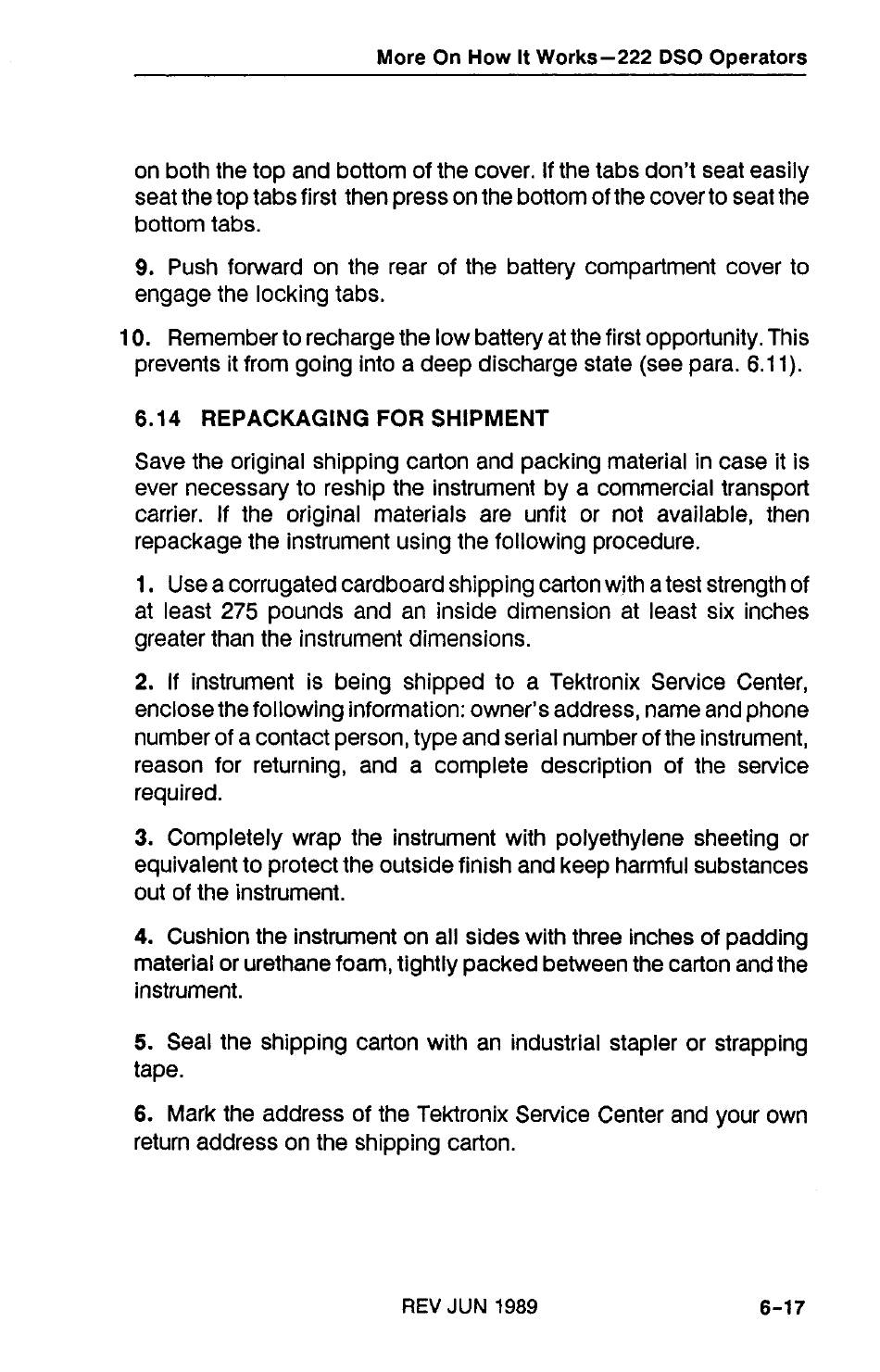

6.14 REPACKAGING FOR SHIPMENT
Save the original shipping carton and packing material in case it is
ever necessary to reship the instrument by a commercial transport
carrier. If the original materials are unfit or not available, then
repackage the instrument using the following procedure.
1. Use a corrugated cardboard shipping carton with a test strength of
at least 275 pounds and an inside dimension at least six inches
greater than the instrument dimensions.
2. If instrument is being shipped to a Tektronix Service Center,
enclose the following information: owner's address, name and phone
number of a contact person, type and serial number of the instrument,
reason for returning, and a complete description of the service
required.
3. Completely wrap the instrument with polyethylene sheeting or
equivalent to protect the outside finish and keep harmful substances
out of the instrument.
4.
Cushion the instrument on all sides with three inches of padding
material or urethane foam, tightly packed between the carton and the
instrument.
5. Seal the shipping carton with an industrial stapler or strapping
tape.
6. Mark the address of the Tektronix Service Center and your own
return address on the shipping carton.
REV JUN 1989
