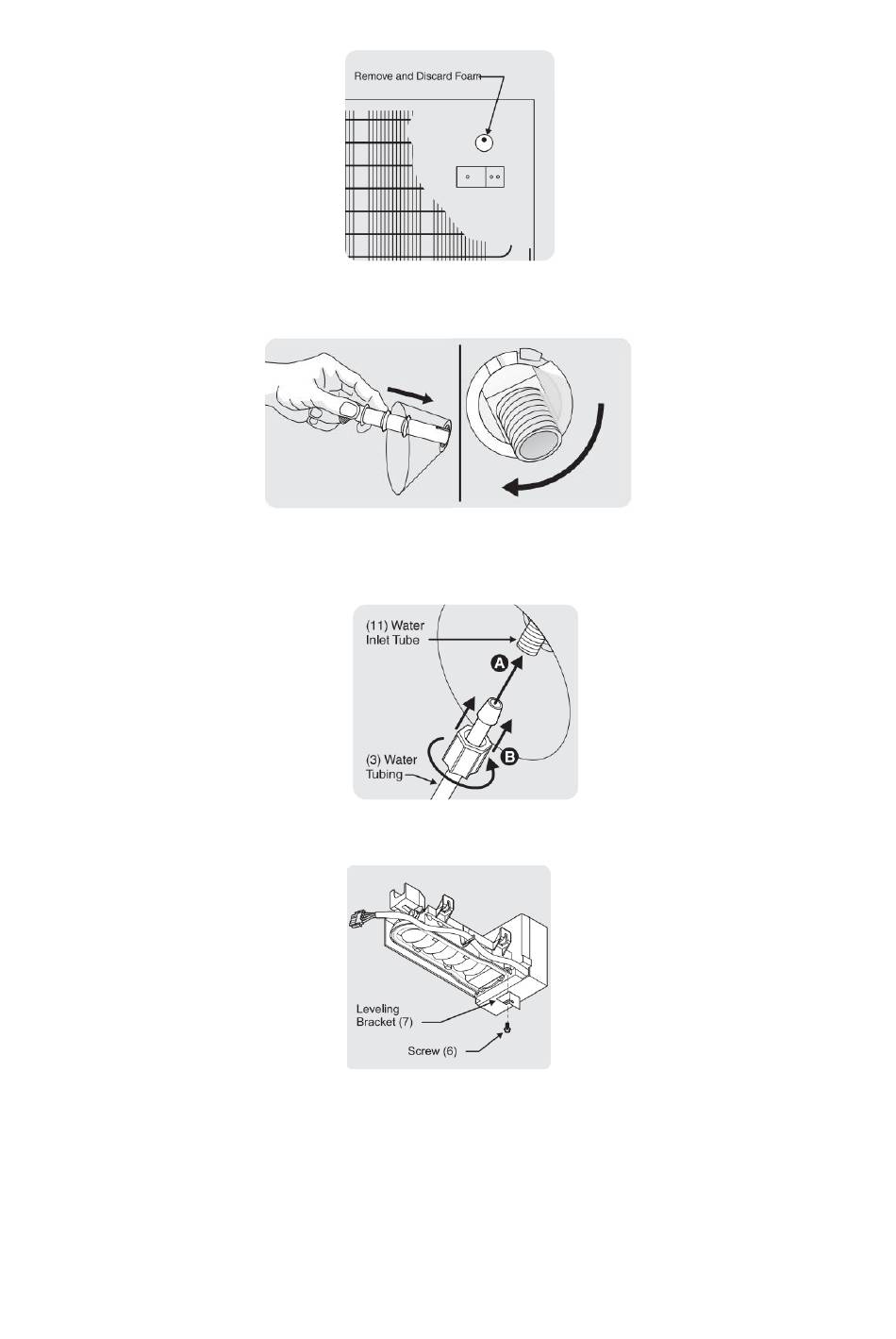

7) Push water inlet tube into small hole on back of refrigerator. Rotate while inserting tube until
flat surface of inlet tube is tight against back of refrigerator.
8) Push plastic water supply tubing (3) into water inlet tube (11) as far as it will go and finger
tighten nylon compression nut onto threaded end of inlet tube. Tighten another one half turn
with a wrench. DO NOT over tighten.
9) Install adjustable leveling bracket (7) on bottom of ice maker with screw (6). DO NOT tighten
bracket. (Bracket will be tightened later.)
10) Start two, long, ice maker mounting screws (5) into freezer wall. Turn each screw five turns
clockwise.
