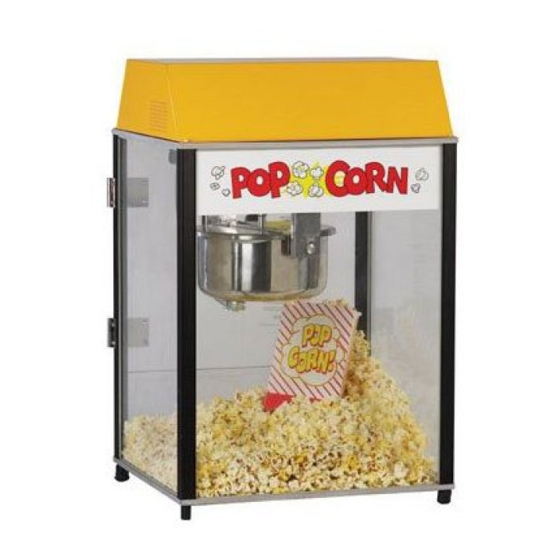

- Page 1 Instruction Manual ® Master Pop Model No. 2451 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 49659...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 ©... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) ©...
-
Page 4: Installation Instructions
Items Included with this Unit Aluminum Scoop Measure 6.5 cc Measure 6 oz. Bulb for Cabinet Knob, Magnet and Screw Knob with Screw Black Crutch Tips Interior (for each Popper Door) (for Old Maid Pan) © 2016 Gold Medal Products Co. Part No. 49659... - Page 5 8. After setup, unit should be cleaned prior to use (see Care and Cleaning section). Kettle lead shown plugged into kettle Glide (pre-installed receptacle. at the factory) Black Crutch Tip Kettle shown mounted in hanger arms. General images shown for reference only. © 2016 Gold Medal Products Co. Part No. 49659...
-
Page 6: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 ©... -
Page 7: Controls And Their Functions
LIGHTS/WARMER SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the interior cabinet light and corn pan heat element. Kettle Motor Switch Kettle Heat Switch Lights/Warmer Switch © 2016 Gold Medal Products Co. Part No. 49659... -
Page 8: Amount Of Popcorn And Oil
6. When finished popping, turn KETTLE HEAT and KETTLE MOTOR switches OFF. NEVER LEAVE THE HEAT ON WHEN YOU ARE NOT POPPING CORN! © 2016 Gold Medal Products Co. Part No. 49659... -
Page 9: Care And Cleaning
1. When cool, wipe outside of kettle with a clean, soft cloth. DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 10 Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of machine. 5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
-
Page 11: Troubleshooting
1/32” (use a dime). To adjust, checking or adjusting reference the Agitator Set Collar Adjustment the agitator assembly.) section. © 2016 Gold Medal Products Co. Part No. 49659... - Page 12 (below Crossbar) Set Collar (for Agitator Weight) 3/16” to 1/4” max. Agitator Weight Agitator shown for general image Stir Rod reference only (lids not shown for clarity). © 2016 Gold Medal Products Co. Part No. 49659...
-
Page 13: Maintenance Instructions
No user serviceable parts inside. Refer servicing to qualified service personnel. 011_051514 CAUTION THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. 027_010914 © 2016 Gold Medal Products Co. Part No. 49659... -
Page 14: Ordering Spare Parts
Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online: Phone: (800) 543-0862 (513) 769-7676 Fax: (800) 542-1496 (513) 769-8500 E-mail: info@gmpopcorn.com Web Page: gmpopcorn.com © 2016 Gold Medal Products Co. Part No. 49659... -
Page 15: Replacing Broken Glass
Model No. 2451 Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front Glass: 22 3/8”... - Page 16 Always replace Agitator Spur Gear and 47059K Kettle Drive Motor Gear as a set.) SET SCREW #10-32 X 3/16 41742 AGITATOR SHAFT 69710 SET COLLAR 5/16 ID 5/8 OD 46649 STIR ROD 69714 AGITATOR WEIGHT 69715 © 2016 Gold Medal Products Co. Part No. 49659...
- Page 17 8 OZ. KETTLE/HEATER 56006 8-32 TOP LOCK NUT (always replace if removed) 67943 450°F THERMOSTAT (includes two 6-32 screws) 76089 THERMOSTAT SHUNT BAR 47193 525°F THERMOSTAT (includes two 6-32 screws) 76702 © 2016 Gold Medal Products Co. Part No. 49659...
- Page 18 17” GLASS CHANNEL (used on top and bottom of 49511 front glass panel) GLIDE FOOT (4 required) 49656 10-24 X 3/4 HEX HD 41314 BLACK CRUTCH TIP 49123 © 2016 Gold Medal Products Co. Part No. 49659...
- Page 19 KNOB LID LIFT 47120 8-32” X 3/8” PH PAN W/SEMS 42227 OLD MAID PAN 49100 #SR-6P-4 STRAIN RELIEF 44073 11* LEAD-IN CORD 15 AMP PLUG 22038 SWITCH LABEL 49840 DPST ROCKER SWITCH 42532 © 2016 Gold Medal Products Co. Part No. 49659...
- Page 20 8-32 X 3/8 PH PAN W/SEMS 42227 ACORN NUT #8-32 47702 MALE HINGE SHORT LEFT 41349 FEMALE HINGE LEFT HAND 61359 FEMALE HINGE RIGHT HAND 61373 MALE HINGE SHORT RIGHT 41350 © 2016 Gold Medal Products Co. Part No. 49659...
- Page 21 GEAR BLOCK ASSEMBLY 67194 10-24 X 1 HEX MACH SCREW (fastens gear block 49322 assembly to kettle drive motor) KETTLE LEAD-IN RECEPTACLE (reference Kettle 49330EX Bottom Assy. for kettle plug configuration note) © 2016 Gold Medal Products Co. Part No. 49659...
- Page 22 8-32 HEX M/S NUT 74149 L5-15R 15A RECEPTACLE 49330 KETTLE DRIVE MOTOR, 120V 47038 1/4-20 X 1/2 HEX HD BOLT (fastens hanger arm) 14821 1/4-20 SERRATED LOCK NUT (fastens hanger arm) 46311 © 2016 Gold Medal Products Co. Part No. 49659...
- Page 23 COATED BULB LABEL 42948 CONDUIT WARNING LABEL 82840 WARNING LABEL CORD 68720 Accessories Part Number Item Part Description 2451 STAMPED ALUMINUM SCOOP 2071 6.5 CC MEASURE 47678 6 OZ MEASURE 49049 © 2016 Gold Medal Products Co. Part No. 49659...
-
Page 24: Wiring Diagram
Master Pop Model No. 2451 Wiring Diagram Model No. 2451 © 2016 Gold Medal Products Co. Part No. 49659... - Page 25 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
