Summary of Contents for NXP Semiconductors FRDM-KW38

  • Page 1 Quick Start Guide FRDM-KW38 FREEDOM DEVELOPMENT PLATFORM...

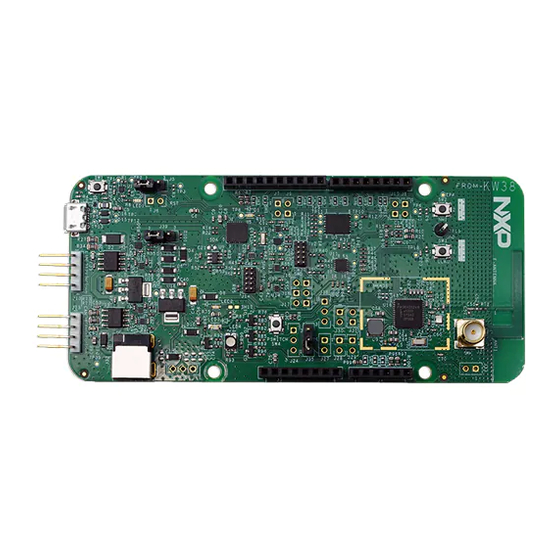

  • Page 2 Quick Start Guide GET TO KNOW THE FRDM-KW38 Printed Printed F-Antenna F-Antenna Push Buttons Push Buttons SW2 and SW3 SW2 and SW3 SMA Connector SMA Connector XTAL_OUT XTAL_OUT 32 MHz Crystal 32 MHz Crystal KW38Z MCU KW38Z MCU 32 kHz Crystal 32 kHz Crystal 1 –...
  • Page 3 PC using the included micro-USB cable to the USB OpenSDA connector of the FRDM-KW38. Your FRDM-KW38 RGB LED should start cycling through the colors White, Magenta, Blue, Cyan, Green, Yellow and Red when you connect the board. Using a smartphone supporting...
  • Page 4 EUROPEAN DECLARATION OF CONFORMITY (Simplified DoC per Article 10.9 of the Radio Equipment Directive 2014/53/EU) This apparatus, namely FRDM-KW38 Freedom Development Platform, conforms to the Radio Equipment Directive 2014/53/EU. The full EU Declaration of Conformity for this apparatus can be found at this location: www.nxp.com/FRDM-KW38...
