DANGER
Electric shock
Death or serious personal injury
- Do not remove the power cable
and strain relief.
- Do not connect electrical conduit to
the pump.
WARNING
Electric shock
Death or serious personal injury
- Connect the product only to a
properly grounded receptacle.
- We recommend that you connect
the pump to an electrical circuit
with a Ground Fault Circuit
Interrupter (GFCI).
WARNING
Moving parts
Minor or moderate personal injury
- Make sure that persons cannot
come into contact with moving
parts.
If the pump is used without a float
switch, use an approved level
controller with a motor protection unit
and set the current rating to match the
nominal current marked on the
product's nameplate.
Observe local regulations setting
limits for manual lifting and handling.
Do not lift the pump by the power
cable or by the outlet pipe or hose.
If the pump is installed in a well or
tank, lower and lift it by means of a
wire or chain fastened to the pump
handle.
Make sure that the system in which
the pump is incorporated is designed
for the maximum pump pressure.
The pump has been evaluated for use
with water only.

4.1 Lifting the product

Lift the pump by the lifting handle. Never lift the
pump by the power cable. Tie a rope to the lifting
handle instead.

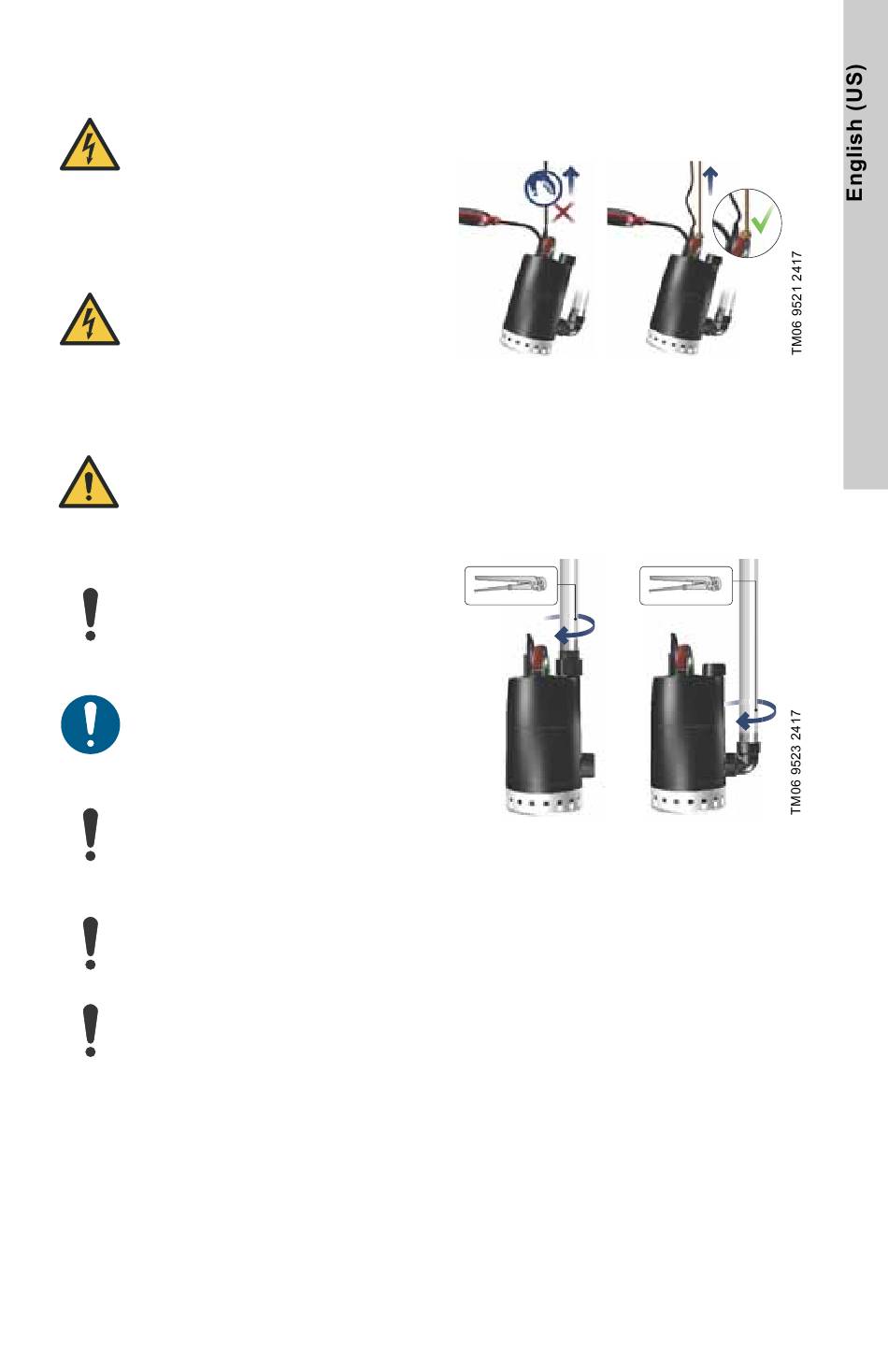

Fig. 1 Lifting the pump

4.2 Mechanical installation

4.2.1 Pipe connection
Connecting the outlet pipe
You can connect the outlet pipe to the pump outlet
port on the top or the side by means of an adapter.
Use the 90 ° adaptor for the side outlet port.
Fig. 2 Connecting the outlet pipe
The adapter enables connection of a pipe or hose
matching 3/4", 1" and 1 1/4" NPT external pipe
thread.
Cut off the adapter so that it matches the outlet pipe
diameter. If a system gasket is used between the
outlet pipe and the adapter, the cut-off adapter must
have an even and smooth surface.
Connect the outlet pipe from the fixed installation
directly to the pump outlet port. If the adapter
supplied with the pump is to be used, cut off the 3/4"
and 1" sockets.
Comply with local standards when connecting the
multifunctional adapter to a pipe in a permanent
installation.
