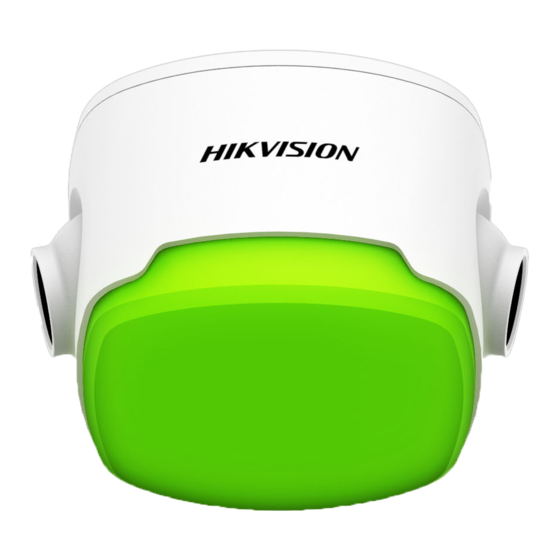

HIKVISION TCP440-DB Series User Manual

Parking camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Parking Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION TCP440-DB Series

Summary of Contents for HIKVISION TCP440-DB Series

  • Page 1 Parking Camera User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Parking Camera User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
  • Page 4 Parking Camera User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Parking Camera User Manual mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
  • Page 6 Parking Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or unexpected results.
  • Page 7 Parking Camera User Manual Safety Instruction Laws and Regulations Use of the product must be in strict compliance with the local laws and regulations. Please shut down the device in prohibited area. Power Supply • Use of the product must be in strict compliance with the local electrical safety regulations. •...
  • Page 8 Parking Camera User Manual Maintenance • If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center. • If the device cannot work properly, contact the store you purchased it or the nearest service center.

  • Page 9: Table Of Contents

    Parking Camera User Manual Contents Chapter 1 Introduction ....................... 1 1.1 Introduction ........................... 1 1.2 Key Feature ..........................1 Chapter 2 Activation ........................2 2.1 Default Information ....................... 2 2.2 Activate via SADP ........................2 2.3 Activate via Web Browser ...................... 3 Chapter 3 Login ..........................
  • Page 10 Parking Camera User Manual 6.1.2 Select Image Display Mode ..................17 6.1.3 Select Stream Type ...................... 17 6.1.4 Switch Lens ......................... 17 6.1.5 Capture Picture Manually ................... 17 6.1.6 Record Manually ......................17 6.1.7 Enable Digital Zoom ....................18 6.2 Local Configuration ......................18 Chapter 7 Storage ........................
  • Page 11 Parking Camera User Manual Chapter 12 Safety Management ....................38 12.1 Manage User ........................38 12.2 Enable User Lock ........................ 38 12.3 Set SSH ..........................39 12.4 Set HTTPS ........................... 39 12.4.1 Create and Install Self-signed Certificate ..............39 12.4.2 Install Authorized Certificate ..................39 Chapter 13 Maintenance ......................

  • Page 12: Chapter 1 Introduction

    Parking Camera User Manual Chapter 1 Introduction 1.1 Introduction The parking camera (hereinafter referred to as device) is applied in the parking guidance and find my car system to detect whether the parking space is occupied or not and recognize the license plate.

  • Page 13: Chapter 2 Activation

    • Get the SADP software from the supplied disk or the official website ( http:// www.hikvision.com/ ), and install it according to the prompts. • The device and the computer that runs the SADP tool should belong to the same network segment.

  • Page 14: Activate Via Web Browser

    Parking Camera User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same network segment as your computer by either modifying the IP address manually or checking Enable DHCP.

  • Page 15: Chapter 3 Login

    Parking Camera User Manual Chapter 3 Login You can log in to the device via web browser for further operations such as live view and local configuration. Before You Start Connect the device to the network directly, or via a switch or a router. Steps 1.

  • Page 16: Chapter 4 Capture Configuration

    Parking Camera User Manual Chapter 4 Capture Configuration 4.1 Set Capture Parameters 4.1.1 Set Vehicle Feature Parameters Set vehicle feature parameters when you need to detect the passing vehicle features. Steps 1. Go to Configuration → Device Configuration → Capture Parameters → Vehicle Feature . Figure 4-1 Set Vehicle Feature Parameters 2.
  • Page 17 Parking Camera User Manual 2. Check Capture Picture Overlay. Figure 4-3 Set Capture Overlay 3. Set the font size, color, overlay position, etc. Percentage It is the percentage that the overlaid information occupies on the picture. Overlay Number Zeroizing When the overlaid number digits are smaller than the fixed digits, 0 will be overlaid before the overlaid number.

  • Page 18: View Real-Time Picture

    Parking Camera User Manual Overlay Position If you select Overlay on the Picture, you can check it. Then the current information will be displayed from a new line. Space Edit the number of space between the current information and the next one from 0 to 255.
  • Page 19 Parking Camera User Manual 3. You can do the following operations on this interface. - Select the arming mode. Level 1 Arming can only connect one client or web. The uploaded pictures will not be stored in the storage card. The pictures in the storage card will be uploaded to the level 1 arming.

  • Page 20: Chapter 5 Parking Space Detection

    Parking Camera User Manual Chapter 5 Parking Space Detection 5.1 Set Detection Rules To detect the parking spaces, you should enable the smart analysis and set the parameters of parking spaces. Steps 1. Go to Configuration → Device Configuration → Smart Analysis → Analytics Parameters Figure 5-1 Smart Analysis 2.

  • Page 21: Set Parking Space Indicator

    Parking Camera User Manual 4. Click the tab of the parking space No. to set the parameters. 1) Enter Parking Space No. 2) Click Yes if the parking space is a special parking space. 5. Adjust the parking space areas. 1) Select a quadrilateral, and drag the vertices of the quadrilateral to adjust its shape, or drag the quadrilateral to adjust the position.
  • Page 22 Parking Camera User Manual Note If the self-test fails, check the cable connection. Internal & External Indicator The internal and external indicators work at the same time. You can respectively set the indicator to inform the status of each parking space. 3.

  • Page 23: View Parking Space Status

    Parking Camera User Manual 5.3 View Parking Space Status You can view the occupancy status, license plate number, indicator color, etc. of the detected parking spaces. Steps 1. Go to Configuration → Device Configuration → Parking Space Indicator → Parking Space Status .

  • Page 24: Internal And External Indicator Application

    Parking Camera User Manual Figure 5-4 Internal Indicator Application Figure 5-5 External Indicator Application 5.4.2 Internal and External Indicator Application Note Here we take example of the scene in which a device monitors three parking spaces. In internal and external indicator application, the internal and external indicators work at the same time.

  • Page 25: Alternate Indicator Control Application

    Parking Camera User Manual camera A controls the internal indicator B, the external indicator 2 of parking camera A, and the external indicator 2 of parking camera B, and detects the status of the parking spaces B1 to B3. The parking camera B controls the internal indicator A, the external indicator 1 of parking camera A, and the external indicator 1 of parking camera B, and detects the status of the parking spaces A1 to A3, as shown below.

  • Page 26: Special Parking Space Application

    Parking Camera User Manual occupied status when the parking spaces A1 to A3/B1 to B3 are all occupied. The indicator A/B will display the color of unoccupied status when any of the three spaces is free. The indicator A/B will display the color of over line when a parked vehicle occupies two spaces.
  • Page 27 Parking Camera User Manual Figure 5-8 Special Parking Space Application...

  • Page 28: Chapter 6 Live View And Local Configuration

    Parking Camera User Manual Chapter 6 Live View and Local Configuration 6.1 Live View 6.1.1 Start/Stop Live View Click to start live view. Click to stop live view. 6.1.2 Select Image Display Mode Click to display the image in 4:3/16:9/original/self-adaptive display mode. 6.1.3 Select Stream Type Click to select the stream type.

  • Page 29: Enable Digital Zoom

    Parking Camera User Manual Steps 1. Click to start live view. 2. Click to start recording. 3. Click to stop recording. 4. Optional: Click Configuration → Local Configuration to view the saving path of record files. 6.1.7 Enable Digital Zoom You can enable digital zoom to zoom in a certain part of the live view image.
  • Page 30 Parking Camera User Manual Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. Provides real-time audio and video streams. Live View Performance Real-Time The video is real-time, but the video fluency may be affected. Balanced Balanced mode considers both the real time and fluency of the video.

  • Page 31: Chapter 7 Storage

    Parking Camera User Manual Chapter 7 Storage 7.1 Set FTP Set FTP parameters if you want to upload the captured pictures to the FTP server. Before You Start Set the FTP server, and ensure the device can communicate normally with the server. Steps 1.

  • Page 32: Set Cloud Storage

    Parking Camera User Manual 7.2 Set Cloud Storage Cloud storage is a kind of network storage. It can be used as the extended storage to save the captured pictures. Before You Start • Arrange the cloud storage server. • You have enabled level 1 arm in Live View → Live Traffic Statistics . Steps 1.
  • Page 33 Parking Camera User Manual Figure 7-3 Set Listening Host 2. Set ANPR IP Address/Domain and ANPR Port if you need to upload the alarm information. 3. Set Listening Host IP and Listening Host Port No., and check Enable Uploading Picture while Listening if you need to upload pictures.

  • Page 34: Chapter 8 Encoding And Display

    Parking Camera User Manual Chapter 8 Encoding and Display 8.1 Set Video Encoding Parameters Set video encoding parameters to adjust the live view and recording effect. • When the network signal is good and the speed is fast, you can set high resolution and bitrate to raise the image quality.

  • Page 35: Set Image Parameters

    Parking Camera User Manual Video Quality When bitrate type is variable, 6 levels of video quality are selectable. The higher the video quality is, the higher requirements of the network bandwidth. Encoding Complexity Under the same bitrate, the higher the encoding complexity is, the higher the image quality is, and the higher the requirement of the network bandwidth is.
  • Page 36 Parking Camera User Manual Figure 8-2 Set Video Image Parameters 2. Adjust the parameters. Saturation It refers to the colorfulness of the image color. Sharpness It refers to the edge contrast of the image. White Balance It is the white rendition function of the device used to adjust the color temperature according to the environment.

  • Page 37: Set Roi

    Parking Camera User Manual Enable defog to get a clear image in foggy days. Light Compensation on License Plate Check it. The light compensation on license plates can be realized, and various light supplement conditions can be adapted via setting license plate expectant brightness and supplement light correction coefficient.
  • Page 38 Parking Camera User Manual Before You Start Please check the video encoding type. ROI is supported when the video encoding type is H.264 or H.265. Steps 1. Go to Configuration → Device Configuration → Encoding and Storage → ROI . Figure 8-3 Set ROI 2.

  • Page 39: Set Osd

    Parking Camera User Manual 5. Click Save. 6. Optional: Select other area codes and repeat the steps above if you need to draw multiple fixed areas. 8.4 Set OSD You can customize OSD information on the live view. Steps 1. Go to Configuration → Device Configuration → Text Overlay → Video . Figure 8-4 Set OSD 2.

  • Page 40: Chapter 9 Network Configuration

    Parking Camera User Manual Chapter 9 Network Configuration 9.1 Set IP Address IP address must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other.

  • Page 41: Connect To Ehome Platform

    Parking Camera User Manual You can set the device IPv4 parameters manually. Enter IPv4 Address, IPv4 Subnet Mask, and IPv4 Default Gateway. IPv6 Three IPv6 modes are available. Route Announcement The IPv6 address is generated by combining the route announcement and the device Mac address.

  • Page 42: Set Ddns

    Parking Camera User Manual Figure 9-2 Connect to EHome Platform 2. Check Enable Protocol. 3. Select Address Type. Domain Name When the server is in extranet, and the IP address is dynamic, you can select it. When the server IP address is static, you can select it. 4.

  • Page 43: Set Port

    Parking Camera User Manual Figure 9-3 Set DDNS 2. Check Enable DDNS. 3. Enter the server address and other information. 4. Click Save. 5. Access the device. By Browsers Enter the domain name in the browser address bar to access the device.

  • Page 44: Set Bluetooth

    Parking Camera User Manual It refers to the port of real-time streaming protocol. SDK Port It refers to the port through which the client adds the device. 9.5 Set Bluetooth You can enable Bluetooth to upload the parking space information to the platform. Steps Note Some models do not support Bluetooth.

  • Page 45: Chapter 10 Serial Port Configuration

    Parking Camera User Manual Chapter 10 Serial Port Configuration 10.1 Set RS-485 Set RS-485 parameters if the device has been connected to a vehicle detector or other RS-485 devices. Before You Start The corresponding device has been connected via the RS-485 serial port. Steps 1.
  • Page 46 Parking Camera User Manual Figure 10-2 Set RS-232 3. Set Baud Rate, Data Bit, Stop Bit, etc. Note The parameters should be same with those of the connected device. 4. Select Working Mode. Console Select it when you need to debug the device via RS-232 serial port. Transparent Channel Select it, and the network command can be transmitted to RS-232 control command via the RS-232 serial port.

  • Page 47: Chapter 11 Alarm Configuration

    Parking Camera User Manual Chapter 11 Alarm Configuration This section explains how to set the device to respond to alarm events, including motion detection and exceptions. These events can trigger the linkage methods, such as notifying the surveillance center. 11.1 Set Motion Detection Motion detection detects the moving objects in the set surveillance area, and a series of actions can be taken when the alarm is triggered.

  • Page 48: Set Exception Alarm

    Parking Camera User Manual 4) Optional: If you want to copy the arming schedule to other days, check the day(s) and click Copy. 5) Click OK. Note The time of each period cannot be overlapped. Up to four periods can be set for each day. Figure 11-2 Set Arming Schedule 5.

  • Page 49: Chapter 12 Safety Management

    Parking Camera User Manual Chapter 12 Safety Management 12.1 Manage User The administrator can add, modify, or delete other accounts, and grant different permissions to different user levels. Steps 1. Go to Configuration → Device Configuration → User Management . 2.

  • Page 50: Set Ssh

    Parking Camera User Manual 3. Click Save. Result When the times you entered incorrect passwords have reached the limit, the current IP address will be locked automatically. 12.3 Set SSH To raise network security, disable SSH service. The configuration is only used to debug the device for the professionals.
  • Page 51 Parking Camera User Manual 4. Follow the prompt to enter Country, Hostname/IP, Validity, and other parameters. 5. Click Download to download the certificate request and submit it to the trusted authority for signature. 6. Import certificate to the device. - Select Signed certificate is available, start the installation directly. Click Browse and Install to import the certificate to the device.

  • Page 52: Chapter 13 Maintenance

    Parking Camera User Manual Chapter 13 Maintenance 13.1 View Device Information Basic Information and Algorithms Library Version Go to Configuration → Device Configuration → System Configuration → Device Information to view the basic information and algorithms library version of the device. You can edit Device Name and Device No.

  • Page 53: Restore Parameters

    Parking Camera User Manual 13.4 Restore Parameters When the device is abnormal caused by the incorrect set parameters, you can restore the parameters. Steps 1. Go to Configuration → Device Configuration → System Maintenance → Default . 2. Select the restoration mode. - Click Restore to restore the parameters except the IP address, subnet mask, gateway, and port No.

  • Page 54: Export Parameters

    Parking Camera User Manual 3. Set Start Time, End Time, and DST Bias. 4. Click Save. 13.7 Export Parameters You can export the parameters of one device, and import them to another device to set the two devices with the same parameters. Steps 1.

  • Page 55: Export Debug File

    Parking Camera User Manual Result The parameters will be imported, and the device will reboot. 13.9 Export Debug File The technicians can export the debug file to troubleshoot and maintain the device. Steps 1. Go to Configuration → Device Configuration → System Maintenance → Export Debug File . 2.
  • Page 56 UD20012B...
