HIKVISION DS-PDD12-EG2 Manual

DS-PDD12-EG2

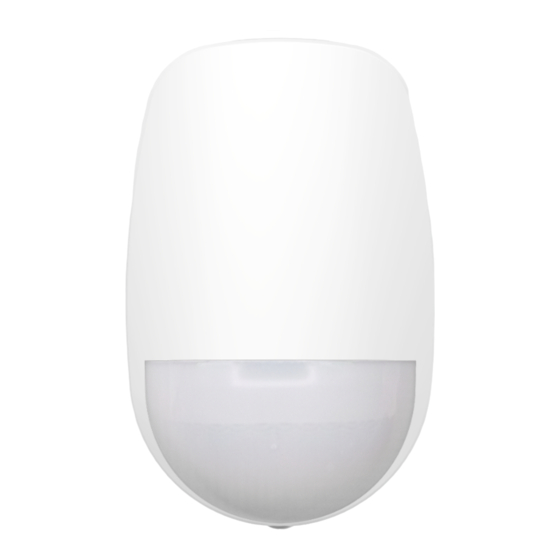

12 m Pet Immune Dual-Tech Detector
©2019 Hangzhou Hikvision Digital Technology Co., Ltd.
It includes instructions on how to use the Product. The software
embodied in the Product is governed by the user license agreement
covering that Product.
About this Manual
This Manual is subject to domestic and international copyright
protection. Hangzhou Hikvision Digital Technology Co., Ltd.
("Hikvision") reserves all rights to this manual. This manual cannot be
reproduced, changed, translated, or distributed, partially or wholly,
by any means, without the prior written permission of Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision
and are registered trademarks or the subject of applications for the
same by Hikvision and/or its affiliates. Other trademarks mentioned
in this manual are the properties of their respective owners. No right
of license is given to use such trademarks without express
permission.
EN50131-1:2006+A1:2009+A2:2017
EN 50131-2-4:2008
Security Grade 2
Environment class II
4 Installation Method - Bracket Installation
(1) Ceiling Bracket Fitting (Non EN compliant)
3
2
1
1
Note:
Brackets are optional.
Brackets sale separately.

7 Resistor Wiring

The detector has two method for resistor wiring:
(1) Using headers to select the End of Line resistance (Control panel dependent) on the ALARM/TAMPER header pins.
(2) Select an resistance (Control panel dependent), and add the resistor to ALARM/TAMPER wiring ports of the detector.
Note: If EOL (End of Line) wiring is not used, leave the headers OFF. If the headers and the header pins does not match, do not
force the header, please select the method 2 to wire the resistor. Method 1 and method 2 should not be used on the
ALARM/TAMPER at the same time.
-
TAMPER
TAMPER ALARM
1K
EOL EOL
2K2
4K7
5K6
=
- +
TAMPER ALARM
TAMPER ALARM
1K 1K
EOL EOL
2K2 2K2
4K7 4K7
5K6 5K6
1K
6K8
TAMPER
TAMPER
1K
EOL
2K2
(b) Tamper
4K7
Resistance 5K6
=
- + 1K,
TAMPER ALARM
TAMPER ALARM
1K 1K
2K2,
EOL EOL
2K2 2K2
4K7,
4K7 4K7
5K6
5K6 5K6
6K8
9

Powering up

10

Dimension and Weight

After powering on, the indicator flashes rapidly. Once the
detector self test is completed, the LED indicator will go
out until the detector detects movement.
103.8 mm
65.7 mm
NOT READY READY

1 Disassembling the Detector

(a) Lens (b) LED Light Pipe
(c) Lens Holder

5 Installation Hints

(2) Wall Bracket Fitting
3
2

8 Choose the Connection Type

(1) Normally Closed
a. Alarm Control Panel
+
ALARM
1K
(a) Alarm
2K2
Resistance
4K7
5K6 1K,
6K8
2K2,
4K7,
5K6,
6K8
TAMPER
TAMPER
- +
ALARM 1K
ALARM
1K
EOL
EOL
2K2 2K2
4K7
5K6 4K7
6K8
5K6
1K
b. Detector
11

Technical Specification

Detection range
Detection speed
Sensitivity
Auto sensitivity
Onboard EOL
Digital temperature compensation Yes
Technology
SEC technology
Sealed optics
Creep zone protection
Direct light filter
Tamper protection
LED indicators
Microwave frequency
45.5 mm
Microwave range
AND/OR mode
Pet immunity
Power supply
Current consumption
Operating temperature
99 g
Storage temperature
Operating humidity
Installation height
(3.5 oz)
Dimension (H × W × D)
Weight
Bracket
2 The Printed Circuit Board（PCB）
(d) PCB (d) Microwave Module
(b) AND/OR Mode
(c)
50Hz as default
60Hz remove header
(a) PIR Sensor
(j) Sensitivity Settings
(e) Nut LOW
AUTO (Default)
HIGH
(f) Casing Screw
(2) Single End of Line Wiring
-
+
The connection shows
the example:
1. Normal: 1K
2. Alarm: Infinite
3. Tamper: 0 K
- +
ALARM
1K
ALARM
1K
2K2
EOL
2K2
4K7
4K7
5K6
5K6
6K8
12m, 85.9°

Legal Disclaimer

0.3 to 2 m/s
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT
High, Auto, Low DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS
PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES
Yes
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
Yes MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO
YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
Digital microprocessor based
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS
Yes
PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION,
Yes IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Yes
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
6500lux PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT
TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE
Front
OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK,
Green(PIR), Orange(microwave), Blue(alarm)
VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,
HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
24Ghz (24.1925Ghz to 24.2125Ghz)
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT
Potentiometer adjustment
LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO
ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION
PIR / MW
SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH
10Kg (With optional pet mask) ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
9 to 16 VDC (standard: 12 VDC)
APPLICABLE LAW, THE LATER PREVAILS.
< 15 mA (12 VDC) - Both quiescent and alarm
Low is non EN and non INCERT compliant.
-10 °C ot 55 °C (14 °F to 131 °F)
-20 °C ot 60 °C (-4 °F to 140 °F)
This product and - if applicable - the supplied accessories too are
10% to 90%
marked with "CE" and comply therefore with the applicable
1.8 to 2.4m
harmonized European standards listed under the EMC Directive
103.8 mm × 65.7 mm × 45.5 mm 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive
2011/65/EU.
99 g
Optional wall & ceiling accessory
3
Installation Method - Detector Backplane Installation
(e) Tamper
Resisitor Headers
1
1K,2K2,
4K7,5K6
(g) Alarm
(f) Terminals
Resistor Headers
1K, 2K2,
4K7, 5K6, 6K8
(h) Tamper
Spring
(i) LED ON/OFF
LED ON
LED OFF

6 The 12 m Lens

12m
10m
8m
6m
4m
2m
1m
1m 2m 4m 6m 8m
2.4m
1m 2m 4m 6m 8m
a. Alarm Control Panel
(3) Double End of Line Wiring
-
+
The connection shows
the example:
1. Normal: 1K
2. Alarm: 2K
3. Tamper: 0 K or infinite
- +
TAMPER ALARM
TAMPER ALARM
1K
EOL EOL
2K2
4K7
5K6
6K8
b. Detector
IC Information
CLASS B: CAN ICES-3 (B)/NMB-3(B)
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur
et votre corps.
Class B: This device is intended for mainly home use (Class B) and
may be used in all areas
B급 기기: 이 기기는 가정용(B급) 전자파적합기기로써 주로
가정에서 사용하는 것을 목적으로 하며, 모든 지역에서 사용할
수 있습니다.
2
4
3
Screw Model number
4
PA_3.5 ×25
To use the pet immunity function,
please install a pet mask.
(a) Detection Range
85.9°
PET Table
52 zones
Sensitivity mode High Auto Low
4 planes Weight 5 kg 10 kg 15 kg
(b) Mounting Height (c) Microwave Range Control
Mounting height range from
1.8 m to 2.4 m. Max: 12 m
The recommended
mounting height is 2.2 m.
10m 12m
Note: PET immunity is Medium: 0 to 12 m
available up to 12 m and at a
height that is below the top
plane of view.
Min: 0 m
10m 12m
a. Alarm Control Panel
-
+
- +
TAMPER ALARM
TAMPER ALARM
1K 1K
EOL EOL
2K2 2K2
4K7 4K7
5K6 5K6
6K8
b. Detector
FCC Information
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation
2012/19/EU (WEEE directive): Products marked with this symbol cannot
be disposed of as unsorted municipal waste in the European Union. For
proper recycling, return this product to your local supplier upon the
purchase of equivalent new equipment, or dispose of it at designated
collection points. For more information see: www.recyclethis.info
UD17437B
