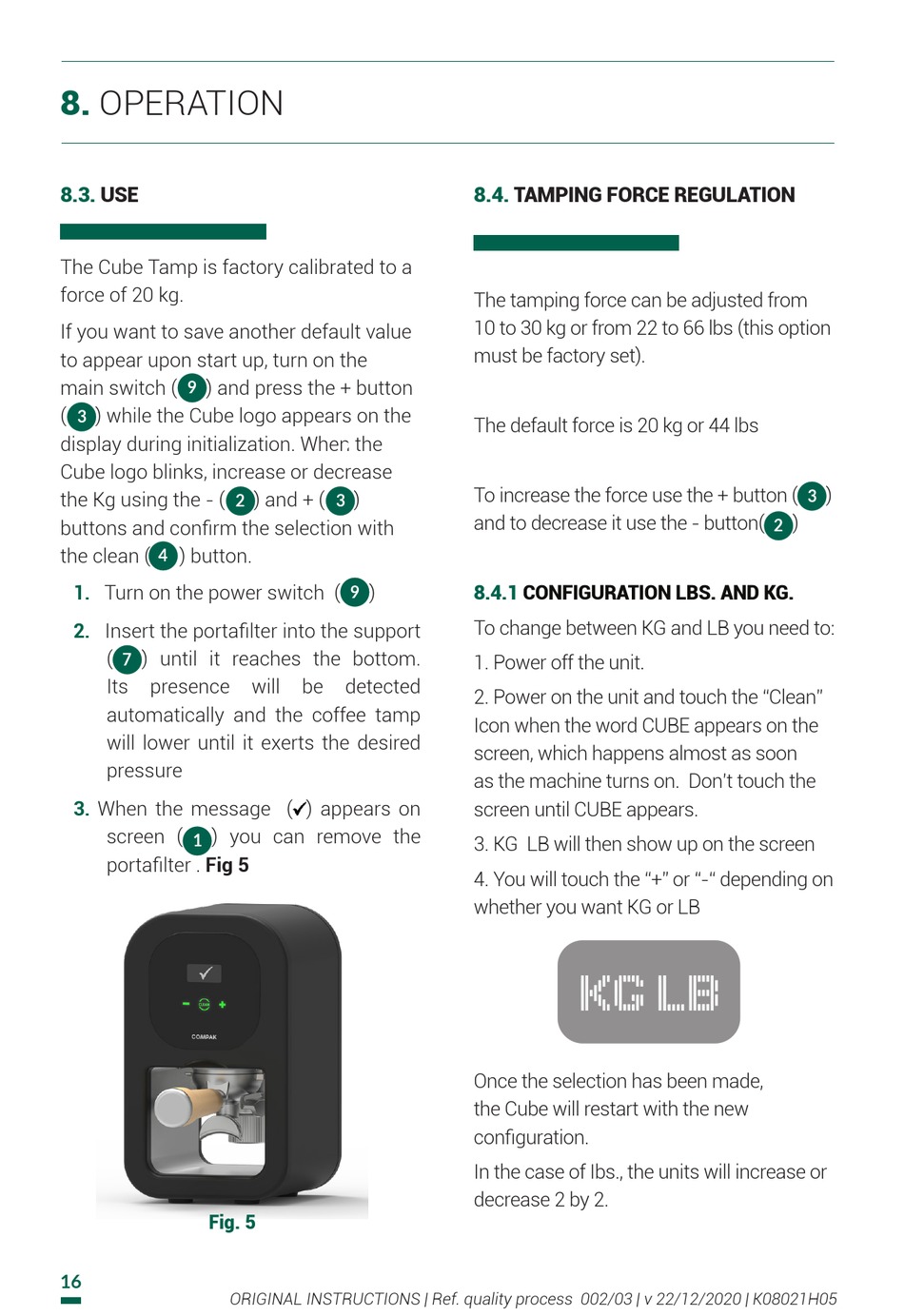

Compak CUBE TAMP Instruction Manual page 16

8.
OPERATION
8.3. USE
The Cube Tamp is factory calibrated to a
force of 20 kg.
If you want to save another default value
to appear upon start up, turn on the
main switch ( ) and press the + button
9
( ) while the Cube logo appears on the
3
display during initialization. When the
Cube logo blinks, increase or decrease
the Kg using the - (
buttons and confirm the selection with
the clean ( ) button.
4
1.
Turn on the power switch (
2.
Insert the portafilter into the support
( ) until it reaches the bottom.
7
Its presence
automatically and the coffee tamp
will lower until it exerts the desired
pressure
3. When the message ( ) appears on
screen ( ) you can remove the
1
portafilter . Fig 5
Fig. 5
16
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 22/12/2020 | K08021H05
2
) and + ( )
2 3
)
9
will be detected
8.4. TAMPING FORCE REGULATION
The tamping force can be adjusted from
10 to 30 kg or from 22 to 66 lbs (this option
must be factory set).
The default force is 20 kg or 44 lbs
To increase the force use the + button (
and to decrease it use the - button(
8.4.1 CONFIGURATION LBS. AND KG.
To change between KG and LB you need to:
1. Power off the unit.
2. Power on the unit and touch the "Clean"
Icon when the word CUBE appears on the
screen, which happens almost as soon
as the machine turns on. Don't touch the
screen until CUBE appears.
3. KG LB will then show up on the screen
4. You will touch the "+" or "-" depending on
whether you want KG or LB
KG LB
Once the selection has been made,
the Cube will restart with the new
configuration.
In the case of Ibs., the units will increase or
decrease 2 by 2.
)
3
)
2
