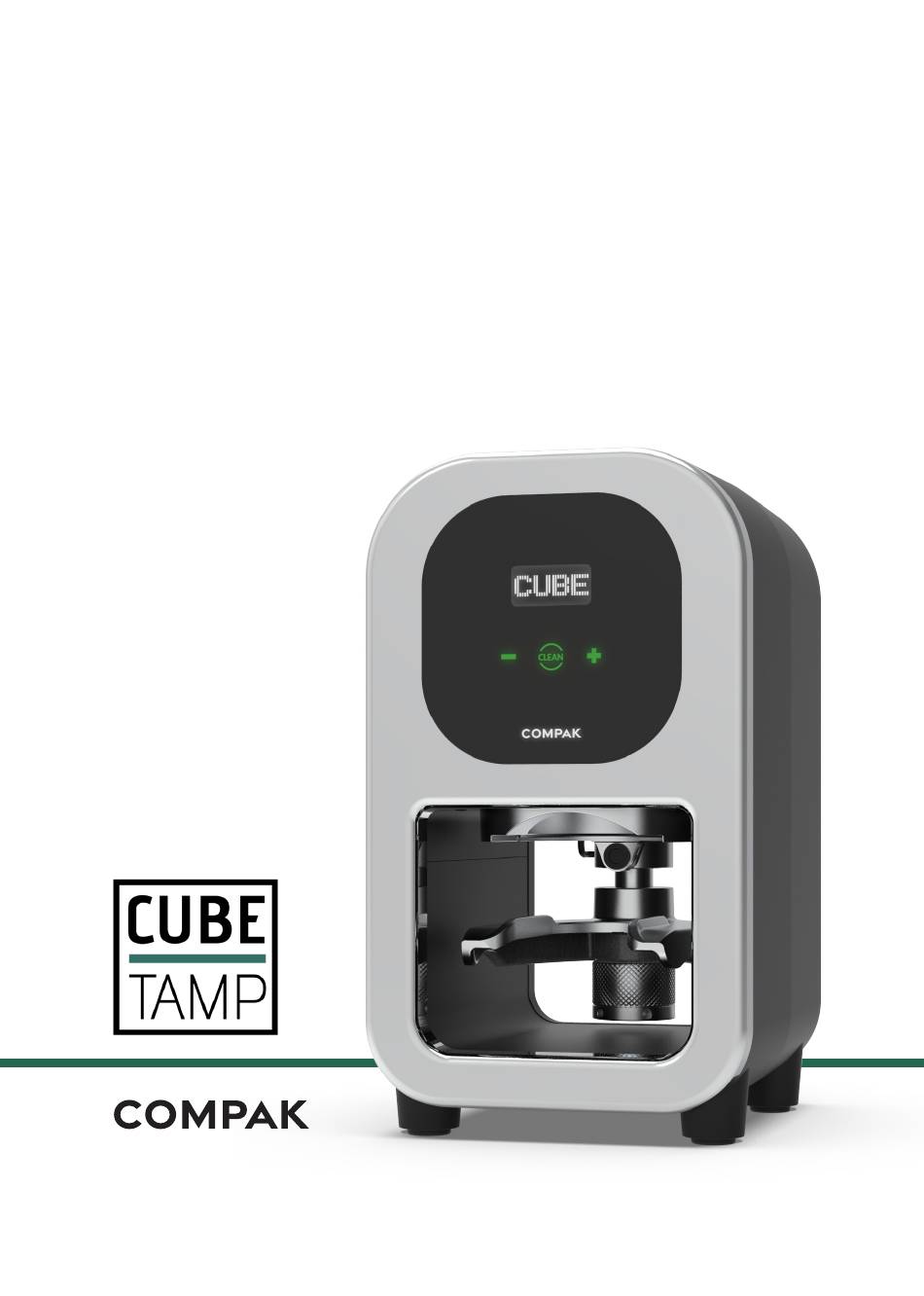

- Page 1 CUBE TAMP AUTOMATIC ELECTRONIC COFFEE TAMPER INSTRUCTION MANUAL...
- Page 2 ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 01/09/2022 | K08021H09...
-
Page 3: Table Of Contents
CONTENTS CUBE TAMP AUTOMATIC ELECTRONIC COFFEE TAMPER SAFETY DESCRIPTION INSTRUCTIONS IDENTIFICATION TECHNICAL CHARACTERISTICS EXTERNAL COMPONENTS INSTALLATION OPERATION TROUBLESHOOTING DECLARATION OF CONFORMITY ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 01/09/2022 | K08021H09... -
Page 4: Safety
SAFETY READ THE SAFETY AND USE INSTRUCTIONS CAREFULLY BEFORE FIRST USING THE APPLIANCE This device should Children should not only be used for the play with the device. function for which it was designed: tamping Cleaning and ground coffee. maintenance of the device should not be Do not use the carried out by children without... - Page 5 SAFETY USERS SHOULD PAY SPECIAL ATTENTION TO AND SCRUPULOUSLY OBEY THE FOLLOWING SAFETY INSTRUCTIONS If it is necessary to access the interior, where the electrical components are located, go to the nearest technical service Any other use will be considered improper and dangerous In the event of any component...
-
Page 6: Description
DESCRIPTION The coffee tamper you have purchased has been designed using the most innovative technological systems. The result is a high quality product that ensures the best results. Our products are manufactured entirely by hand, one at a time, following the most demanding quality requirements. -
Page 7: Instructions
INSTRUCTIONS 3.1. This manual provides the information Example: ( Display necessary for the correct installation, Icons: handling and maintenance of the equipment and highlights Information Attention the precautions that should be taken by the operator. To ensure you get the best out of the machine, it is essential to carefully follow the instructions given in this manual. -
Page 8: Identification
IDENTIFICATION technical characteristics plate is indelibly marked with the following information: NOTE: The manufacturer reserves the right to change components/ configurations of any model, according to the different geographic market demands. ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 01/09/2022 | K08021H09... -
Page 9: Technical Characteristics
TECHNICAL CHARACTERISTICS 5.1. SCOPE The coffee tamper that you have purchased is intended for shops and communities ground coffee needs to be tamped and it should only be used for this purpose. Any other use is considered improper and dangerous. NOTE: The manufacturer will not be held responsible for any damages resulting from improper use of the equipment, or for not following the safety measures as outlined below. - Page 10 TECHNICAL CHARACTERISTICS 5.2. TECHNICAL DATA 110/220/240 V 50/60 Hz Voltage/Frequency Height Weight Width Tamp diameter Depth 290,3 167,7 See identification plate 185,0 ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 01/09/2022 | K08021H09...
-
Page 11: External Components
EXTERNAL COMPONENTS Display Button ( + ) Button ( - ) CLEAN Button Tamper disk Sensor Lower clamp Adjustment wheel Locking wheel Switch ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 01/09/2022 | K08021H09... -
Page 12: Installation
INSTALLATION 7.1. LEGAL WARNINGS 7.2. IMPORTANT WARNINGS The installer must read this instruction The operator must be a responsible manual carefully before installing the adult. Never a child nor someone without machine the ability to accept that responsibility The installation of the device must be When handling the machine, the carried out by qualified and following precautions should be obeyed:... - Page 13 INSTALLATION 7.3. WHERE TO USE IT 7.4. INSTALLATION The appliance must be installed on a Before connecting the machine, check the solid, flat surface. following: • The characteristics on the data plate The minimum size of the match those of the electrical mains workplace, to ensure the best network.
-
Page 14: Operation
( ) clockwise Make sure that the diameter of your using the supplied tool. Fig. 3 portafilter matches that of your Cube Tamp’s coffee tamp. Permitted height of the portafilter: Minimum: 26,80 mm (1,055 in) Maximum: 41,05 mm (1,616 in) - Page 15 OPERATION Fig. 2 Fig. 1 Fig. 3 ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 01/09/2022 | K08021H09...
- Page 16 OPERATION 8.3. 8.4. TAMPING FORCE REGULATION The Cube Tamp is factory calibrated to a The tamping force can be adjusted from force of 20 kg. 10 to 30 kg or from 22 to 66 lbs (this option must be factory set).
- Page 17 OPERATION 8.4.2 CONFIGURATION °C AND °F Press the CLEAN button again to return the disk to its idle position. After choosing between KG or LB: “°C °F ” will appear on the screen. If you want the disk to remain in the pressing position to allow more time for °...
-
Page 18: Troubleshooting
The portafilter is conical and the amount of coffee is too low Make sure that the appliance is con- The Cube Tamp is not powered on nected to the mains socket and that the ON/OFF switch is in the ON position. -
Page 19: Declaration Of Conformity
Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain Ph. 34 93 703 13 00 - Fax 34 93 703 13 23 - www.compak.es ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 01/09/2022 | K08021H09... - Page 20 Ref. quality process 002/03 | v. 01/09/2022 | K08021H09 CONTACT Molí Barri, Parcela B Phone: +34 93 703 13 00 Website: www.compak.es Polígono Industrial Can Barri Fax: +34 93 703 13 23 08415 Bigues i Riells Barcelona - Spain E-mail: info@compak.es...
