- Page 1 INSTRUCTION MANUAL AUTOMATIC ELECTRONIC COFFEE TAMPER...
- Page 2 ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 22/12/2020 | K08021H05...
- Page 3 INDEX AUTOMATIC ELECTRONIC COFFEE TAMPER CUBE TAMP SAFETY DESCRIPTION INSTRUCTIONS IDENTIFICATION TECHNICAL CHARACTERITICS EXTERNAL COMPONENTS INSTALLATION OPERATION TROUBLESHOOTING DECLARATION OF CONFORMITY ORIGINAL INSTRUCTIONS | Ref.quality process 002/03 | v. 22/12/2020 | K08021H05...
- Page 4 SAFETY READ THE SAFETY AND USE INSTRUCTIONS CAREFULLY BEFORE FIRST USING THE APPLIANCE This device must be used Children should not be allowed to play with the device exclusively for the functions for which it was designed: tamping ground coffee Cleaning and maintenance of the device should not be Do not use the device to press...
- Page 5 SAFETY USERS SHOULD PAY SPECIAL ATTENTION TO AND SCRUPULOUSLY OBEY THE FOLLOWING SAFETY INSTRUCTIONS If it is necessary to access the interior, where the electrical components are located, go to Any other use will be the nearest technical service centre. considered improper and dangerous If any component should break,...
- Page 6 DESCRIPTION The coffee tamper you have purchased has been designed using the most innovative technological systems. The result is a high quality product that ensures the best results. Our products are manufactured entirely by hand, one at a time, following the most demanding quality requirements.
- Page 7 INSTRUCTIONS 3.1. This manual provides the information Example: ( Display necessary for the correct installation, Icons: handling and maintenance of the equipment and highlights the Information Attention precautions that should be taken by the operator. To ensure you get the best out of the machine, it is essential to carefully follow the instructions given in this manual.
- Page 8 IDENTIFICATION The technical characteristics plate is indelibly marked with the following information: NOTE: The manufacturer reserves the right to change components/configurations of any model, according to the different geographic market demands. ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 22/12/2020 | K08021H05...
-
Page 9: Technical Characteristics
TECHNICAL CHARACTERISTICS 5.1. SCOPE The coffee tamper that you have purchased is intended for shops and communities ground coffee needs to be tamped and it should only be used for this purpose. Any other use is considered improper and dangerous. NOTE: The manufacturer will not be held responsible for any damages resulting from improper use of the equipment, or for not following the safety measures as outlined below. -
Page 10: Technical Data
TECHNICAL CHARACTERISTICS 5.2. TECHNICAL DATA 110/220/240 V 50/60 Hz Voltage/Frequency Height Weight Width Tamp diameter Depth 279,7 58,3 ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 22/12/2020 | K08021H05... -
Page 11: External Components

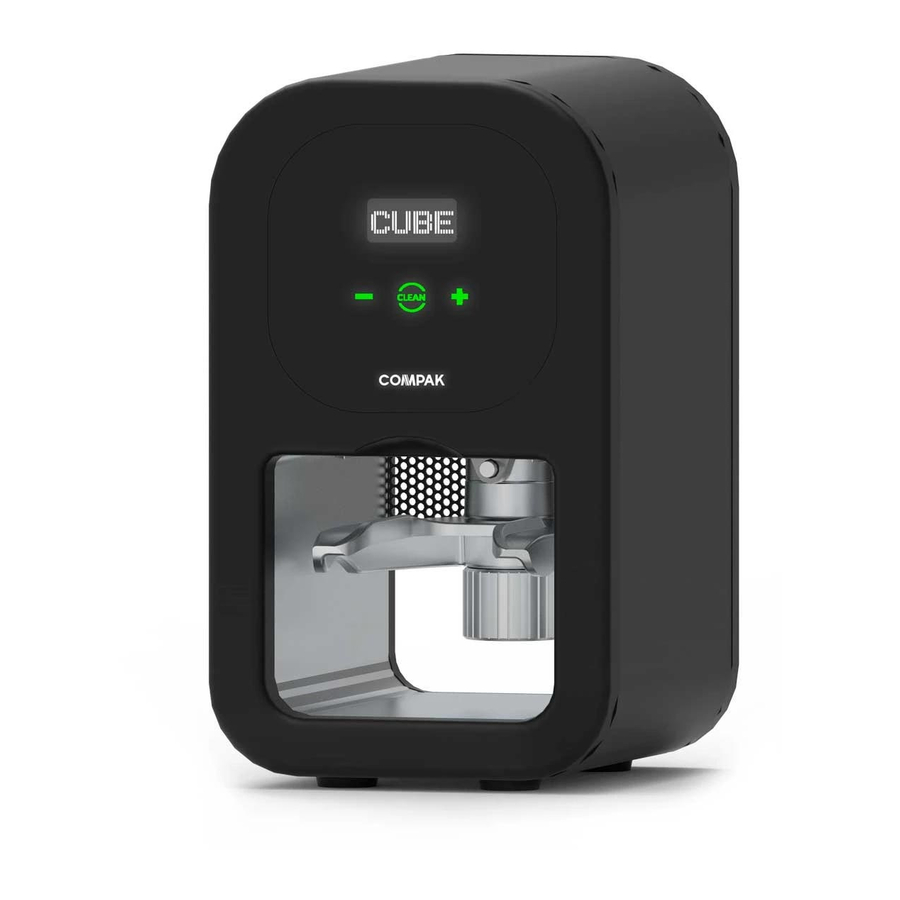

EXTERNAL COMPONENTS Display Button Button ( - ) ( + ) CLEAN Button Sensor Tamper disk Knob Lower clamp Adjustment wheel Switch ORIGINAL INSTRUCTIONS | Ref.quality process 002/03 | v. 22/12/2020 | K08021H05... -
Page 12: Installation
INSTALLATION 7.1. LEGAL WARNINGS 7.2. IMPORTANT WARNINGS The installer must read this instruction The operator must be a responsible manual carefully before installing the adult. Never a child nor someone without machine the ability to accept that responsibility The installation of the device must be When handling the machine, the following carried out by qualified and precautions should be obeyed:... -
Page 13: Where To Use It
INSTALLATION 7.3. WHERE TO USE IT 7.4. INSTALLATION The appliance must be installed on a Before connecting the machine, check the solid, flat surface. following: • The characteristics on the data plate match those of the electrical mains The minimum size of the network. -
Page 14: Operation
It is essential that the portafilter is perfectly adjusted to achieve a consistent and level tamping. Make sure that the diameter of your portafilter matches that of your Cube Tamp’s coffee tamp. To adjust the support height: Make sure the power switch ( )is in the OFF position. - Page 15 OPERATION 8.2.1 SENSOR DISTANCE ADJUSTMENT The current system allows, through a knob adjustment, ( ) to change the sensor distanceto work properly with all types of portafilters. Fig 4 In order to move the sensor away, rotate clockwise, and counterclockwise to bring it closer.
- Page 16 OPERATION 8.3. 8.4. TAMPING FORCE REGULATION The Cube Tamp is factory calibrated to a force of 20 kg. The tamping force can be adjusted from 10 to 30 kg or from 22 to 66 lbs (this option If you want to save another default value must be factory set).
-
Page 17: Cleaning Mode
OPERATION 8.4.2 LOCKED KEYBOARD Press the (Clean) button again to return the disk to its idle position. To lock the digital display, simply press the ) and - ( ) keys simultaneously for 3 seconds until the lock icon appears. Fig 6 If you want the disk to remain in the To unlock the digital display just repeat the pressing position to allow more time for... -
Page 18: Troubleshooting
The portafilter is conical and the amount of coffee is too low Make sure that the appliance is connected to the mains socket and The Cube Tamp is not powered on that the ON/OFF switch is in the ON position. The disk does not lower... -
Page 19: Declaration Of Conformity
Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain Ph. 34 93 703 13 00 - Fax 34 93 703 13 23 - www.compak.es ORIGINAL INSTRUCTIONS | Ref.quality process 002/03 | v. 22/12/2020 | K08021H05... - Page 20 Ref. quality process 002/03 | v.22/12/2020 | K08021H05 CONTACT Molí Barri, Parcela B Phone: +34 93 703 13 00 Website: www.compak.es Polígono Industrial Can Barri Fax: +34 93 703 13 23 08415 Bigues i Riells Barcelona - Spain E-mail: info@compak.es...
