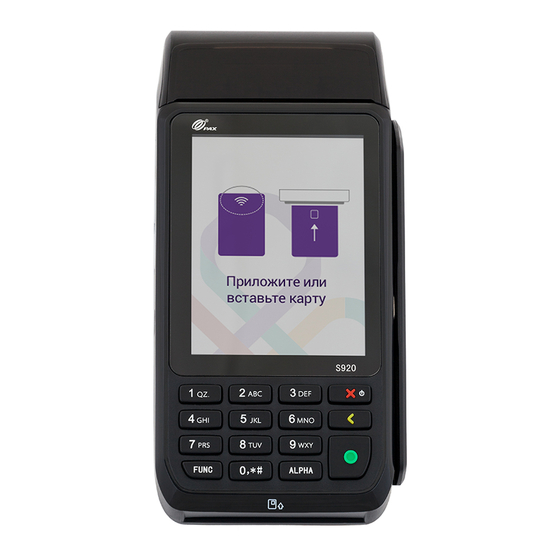

PAX S920 Quick Setup Manual

Mobile terminal
Hide thumbs Also See for S920:
Table of Contents

Advertisement

Quick Links

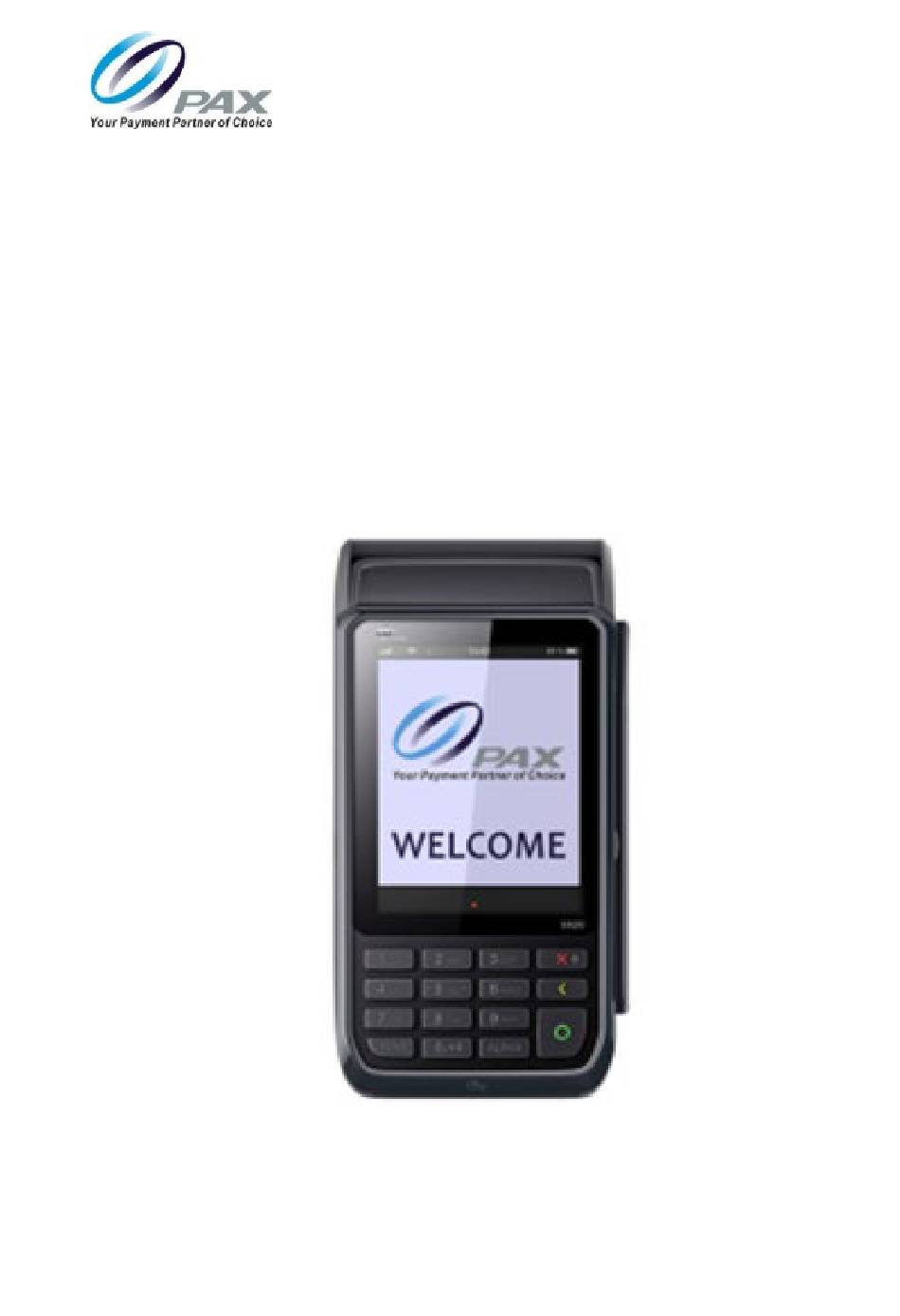

PAX S920
Mobile Terminal
Quick Setup Guide
11132018 ver 1.3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S920 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PAX S920

Summary of Contents for PAX S920

  • Page 1 PAX S920 Mobile Terminal Quick Setup Guide 11132018 ver 1.3...
  • Page 2 The new, lightweight and versatile S920 mobile terminal is designed for the hospitality and restaurant industries. The S920 offers portability and ease of use for both merchant staff and customers. The S920 boasts a high- resolution large color touch screen and delivers faster and easier transactions with exceptional coverage and performance.
  • Page 3 PAX S920 Quick Setup Guide Charge Terminal Before starting this setup, ensure that the S920 battery is fully charged. Plug the USB end of the charging cable to a PC or the supplied AC power supply. Plug the micro USB end into the micro USB port on the left side of the terminal.
  • Page 4 PAX S920 Quick Setup Guide S920 Front View...
  • Page 5 PAX S920 Quick Setup Guide S920 Back View...
  • Page 6 PAX S920 Quick Setup Guide S920 Power On/Off Power up or power off the terminal by pressing and holding the small red X button on the right side of the keypad for 2-4 seconds and then release.
  • Page 7 This document covers Wi-Fi setup only. The S920 supports Wi-Fi for network and internet access. Available access types are DHCP and Static. The following instructions include setting up for each...
  • Page 8 PAX S920 Quick Setup Guide S920 Wi-Fi DHCP Setup The S920 supports Wi-Fi DHCP for network and internet access. The following steps describe set up for DHCP communication. From the IDLE screen select and hold [1] and [ENTER] on the terminal at the same time for about 1-2 seconds and then release.
  • Page 9 S920 Static WiFi Setup The S920 supports Wi-Fi Static for network and internet access. The following instructions include setting up Wi-Fi for Static communication type. From the IDLE screen, select and hold [1] and [ENTER] on the terminal at the same time for about 1-2 seconds and then release.
  • Page 10 PAX S920 Quick Setup Guide Select [Connect Timeout] and verify the default value of [300] is displayed and press [ENTER]. Select [Receive Timeout] and verify the value of [450] is displayed and press [ENTER]. Select the [right arrow] and then select [WiFi Parameters].
  • Page 11 PAX S920 Quick Setup Guide Select the [right arrow]. Select [Gateway IP], input the value, and press [ENTER]. Select [DNS IP]. input the value and then press [ENTER]. Select the [PING] option, verify that the www.google.com address is displayed, then press [ENTER].
  • Page 12 PAX S920 Quick Setup Guide Changing the Paper Roll The thermal paper roll is located at the top of the terminal. You can remove and install rolls as needed. Removing a Paper Roll To remove the roll, perform the following tasks.
  • Page 13 PAX S920 Quick Setup Guide Installing a New Paper Roll To install the roll, perform the following tasks. Pull about 4” of paper from the bottom of the roll. Place the roll into the paper roll housing with the paper oriented as shown in the following figure.
  • Page 14 PAX S920 Quick Setup Guide Ensure that the lid is fully closed so that the paper roller mechanism can properly engage the paper roll. Setup is now complete. For more details, refer to the appropriate S920 Quick Reference Guide or the S920 User Manual.
  • Page 15 PAX S920 Quick Setup Guide FCC REGULATIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 If you cannot resolve the Issue, please contact us. Your level of access to this Service is governed by the support plan arrangements made between PAX and your Organization. Please consult this support plan for further information about your entitlements, including the hours when telephone support is available to you.
