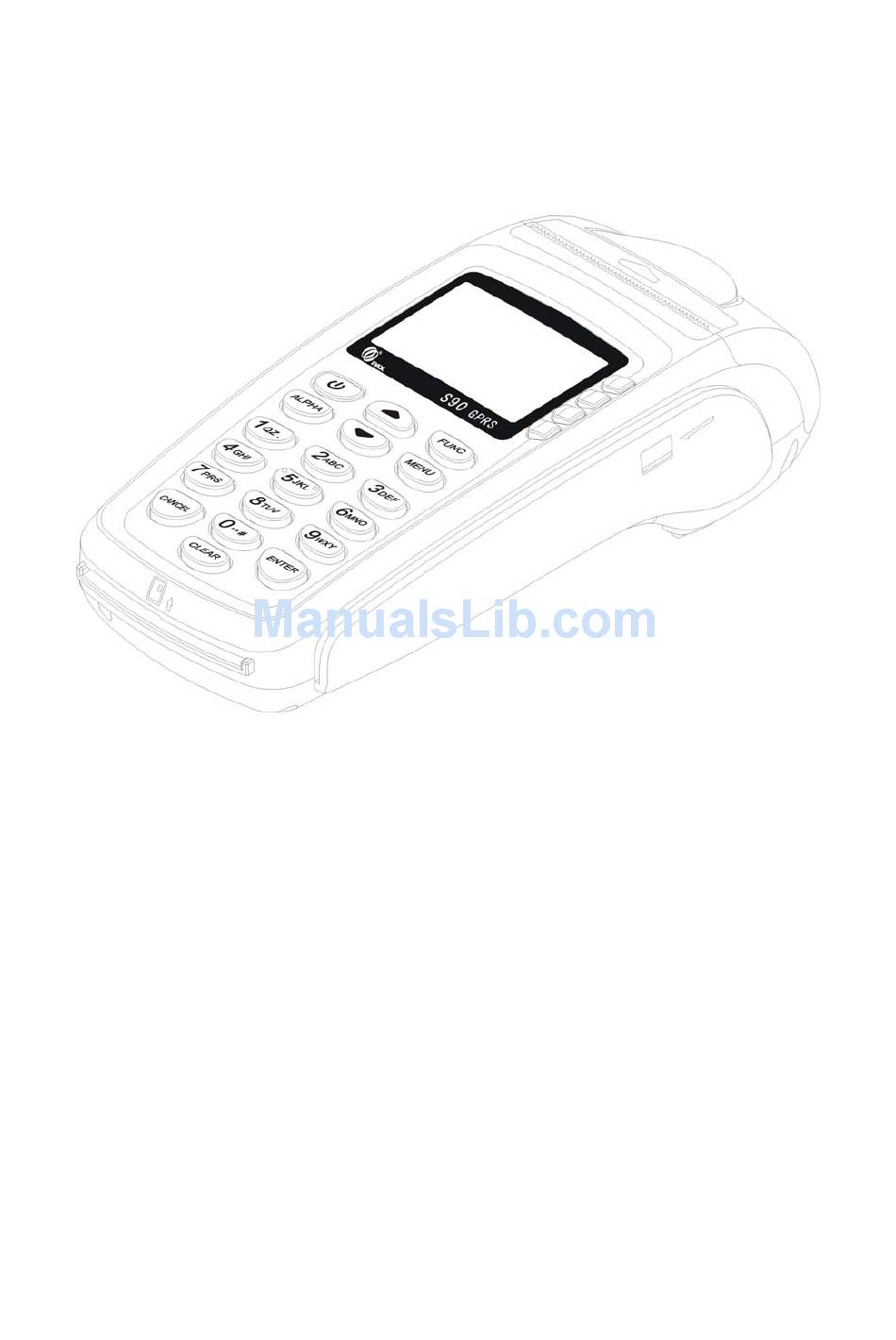

- Page 1 S90 Mobile Payment Terminal Use Manual...
- Page 2 1、 Product Description Figure 1: Top View Figure 2: Bottom View...
- Page 3 Figure 3: Side View Figure 4: SAM/SIM Card Slots...
- Page 4 2、 Installation 1）SAM Card Installation ① Open up battery cover, which is at the bottom of the terminal; ② Take out battery; ③ Insert SAM card to corresponding SAM card slot. 2）SIM/UIM Card Installation ① Open up battery cover, which is at the bottom of the terminal; ② Take out battery; ③ Insert SIM/UIM card to corresponding SIM/UIM card slot.
- Page 5 4）Do not use other chargers for recharge. 5）Keep the electrical contacts of battery away from other conductive material. 6）Do not use other batteries which are not manufactured by PAX 7）Do not charge battery in explosion hazardous area. 8）Do not assemble battery in explosion hazardous area.
- Page 6 1）Do not damage electric wire and power adapter. If electric wire or power adapter is damaged, please do not use the terminal any more. 2）Before power adapter is plugged into power socket, please make sure that voltage which the power socket supplies is appropriate working voltage for the terminal. 3）Do not expose the terminal in sunshine, or in humid, hot, or dusty environment 4）Keep the terminal away from liquid material.
- Page 7 Warning： We declare that: ※ The product is installed with battery separately in the box. The FCC ID label is placed on Mobile Payment Terminal clearly visible to all persons at the time of purchase. ※ The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
