Page 2 Technical Support Contact Information: Phone: 904-900-3741 Email: support@pax.us URL: http://www.pax.us/ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 3: Table Of Contents
Sample of Gift Return receipt ........................63 4.4.3 Gift Add Value ........................64 NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 4: Table Of Contents
Guest No. Mode ........................143 6.4.6 Set Cash EDC ........................144 NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 5 A.1 Credit Card Receipts Template ....................217 A.2 Debit Card Receipts Template ....................221 NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 6 B.5 Download Troubleshooting ....................240 APPENDIX C – GLOSSARY ....................... 241 NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 7: Revision History
Description of Date Version Contact Change 1/7/2013 1.00.01 B. McDonald Re-Release NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 8: General Information
It is required that this document is stored in a safe place for future reference and modifications. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 9: Document Convention
- Denotes a warning note about the User that the operation would cause serious consequent problem. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 10: Document Structure
Chapter 6, Menu Option Appendix A: Receipts Appendix B: Troubleshooting Appendix C: Glossary NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 11: Authorized Use Permission
NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 12: Document Reference
Chapter 1 General Information 1.5 Document Reference Title Date Version NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.

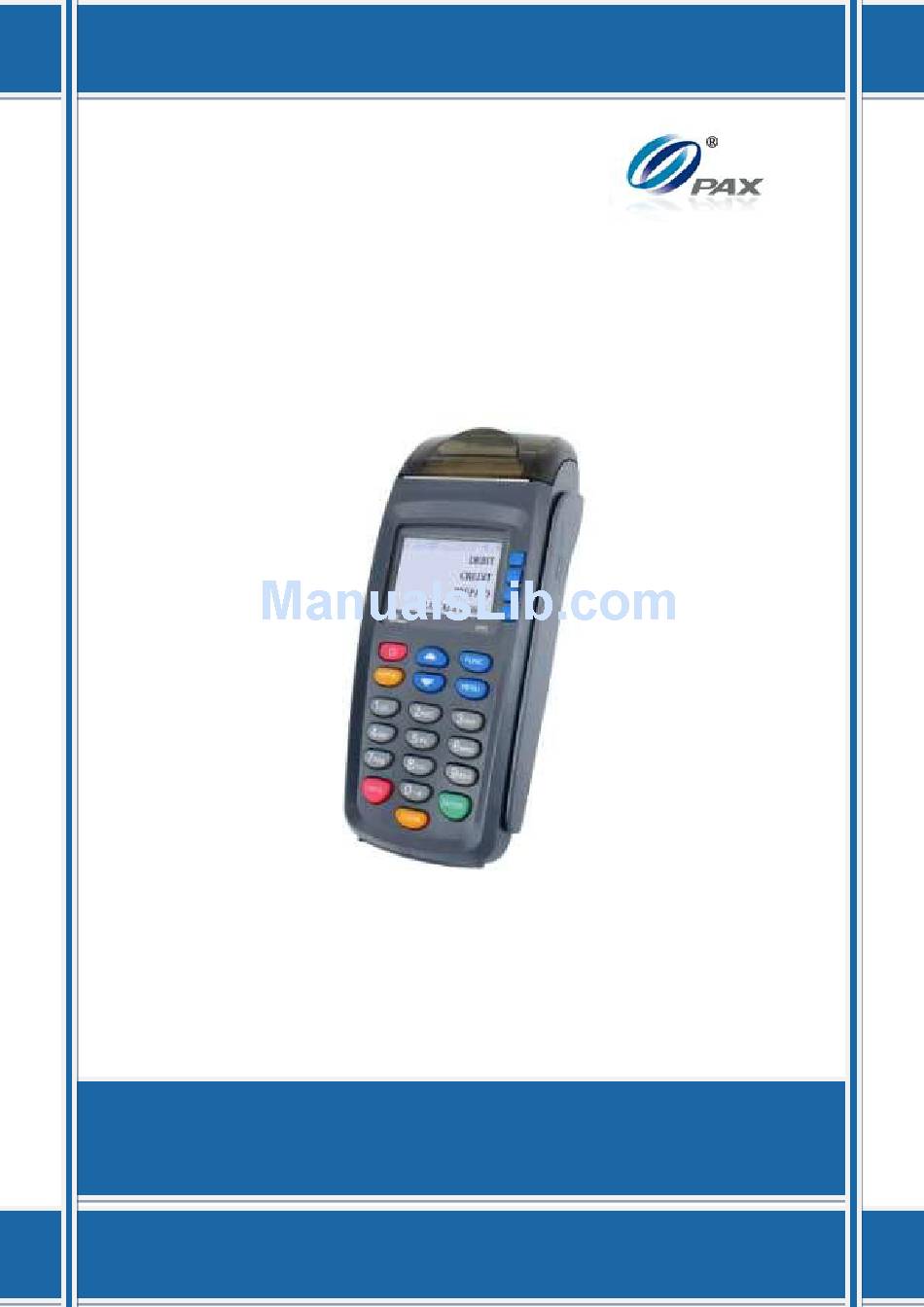

Page 13: Pax S90 Pos Terminal Overview
2.Merchant Settings 2.Report 3.Operation Settings 3.Batch CREDIT 4.Hosts Settings 4.Review SALE NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 14: Pos Terminal Communication Options
The following chart summarizes the information regarding the different POS terminal model communication options. GPRS CDMA ODEL THERNET √ √ √ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 15: Pos Terminal Keypad Layout
FIND TRANSACTION FUNC+ ENTER LAST RECEIPT FUNC+ ALPHA Tip MENU (RESTAURANT ONLY) NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 16: Key Assignments
Below are examples of the keypad layout of the S90 POS terminals. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 17: How To Load Application
When prompted, enter the password and then press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 18 When prompted, enter the number of guests then ___________________ press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 19 When prompted, enter the TAX Amount then press AMOUNT 0.00 [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 20 Press [CANCEL] to print the second receipt. Stop. √ VISA √ MasterCard √ AMEX √ Discover NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 21: Sample Of Credit Sale Receipt
CARDHOLDER NAME MERCHANT COPY THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 22: Credit Return
Last 4 Digits: When prompted, enter the corresponding digits ___________________ then press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 23 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 24: Sample Of Credit Return Receipt
CARDHOLDER NAME MERCHANT COPY THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 25: Credit Auth
Last 4 Digits: When prompted, enter the corresponding digits ___________________ then press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 26 If billing address is 123 Main St., enter 123. ___________________ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 27 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 28: Sample Of Credit Auth Receipt
MERCHANT COPY Again soon! THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 29: Credit Postauth
Last 4 Digits: When prompted, enter the corresponding digits ___________________ then press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 30 Enter the additional information for commercial _________________ card then press [ENTER]. _________________ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 31 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 32: Sample Of Credit Postauth Receipt
CARDHOLDER NAME MERCHANT COPY THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 33: Credit Forced
Last 4 Digits: When prompted, enter the corresponding digits ___________________ then press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 34 When prompted, enter the TAX Amount then press AMOUNT 0.00 [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 35 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 36: Sample Of Credit Forced Receipt
CARDHOLDER NAME MERCHANT COPY THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 37: Credit Void Sale
Enter the four-digit expiration date in MMYY format MMYY then press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 38 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 39: Sample Of Credit Void Sale Receipt
MERCHANT COPY Again soon! THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 40: Credit Void Return
Manually keying the full account number then press 5555 [ENTER]. The account number must be between 13-16 digits. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 41 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 42: Sample Of Credit Void Return Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 43: Credit Void Post-Auth
Manually keying the full account number then press 5555 [ENTER]. The account number must be between 13-16 digits. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 44 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 45: Sample Of Credit Void Post-Auth Receipt
MERCHANT COPY Again soon! THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 46: Credit Void Forced
Manually keying the full account number then press 5555 [ENTER]. The account number must be between 13-16 digits. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 47 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 48: Sample Of Void Forced Receipt
MERCHANT COPY Again soon! THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 49: Debit Transaction
ENTER TABLE NO: When prompted, enter the table number then press ___________________ [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 50 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 51: Sample Of Debit Sale Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 52: Debit Return
ENTER TABLE NO: When prompted, enter the table number then ___________________ press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 53 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 54: Sample Of Debit Return Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 55: Ebt Transaction
2. CashBenefit 3. Voucher Press [3] for Voucher (Manual Entry only) NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 56 The terminal contacts the Host Processor for an approval and prints one receipt. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 57 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 58: Sample Of Ebt Sale Receipt
THANK YOU! Please visit us Please visit us Again soon! Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 59: Ebt Return
ENTER INVOICE #: When prompted, enter the invoice No. then press ___________________ [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 60 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 61: Sample Of Debit Return Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 62: Ebt Balance Inquiry
Enter PIN: Input the PIN on the Keypad then press [ENTER]. **** NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 63 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 64: Sample Of Ebt Balance Inquiry Receipt
Cash Benefit Balance: MERCHANT COPY THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 65: Gift Transaction
Press [1] for Sale. 1. Sale 2. NoNSFSale Press [2] for NoNSFSale. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 66 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 67: Sample Of Gift Sale Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 68: Gift Return
The terminal contacts the Host Processor for an approval and prints one receipt. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 69 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 70: Sample Of Gift Return Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 71: Gift Add Value
Press any Key … If a second receipt is not wanted, press [CANCEL]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 72 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 73: Sample Of Gift Add Value Receipt
THANK YOU! Please visit us Please visit us Again soon! Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 74: Gift Issue
Press any Key …  If a second receipt is not wanted, press [CANCEL]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 75 ENTR=YES, CANC=NO  Press [CANCEL] to print the second receipt.  Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 76: Sample Of Gift Issue Receipt
THANK YOU! Please visit us Please visit us Again soon! Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 77: Gift Void
ENTER CLERK ID: When prompted, enter the clerk/server ID then ___________________ press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 78 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 79: Sample Of Gift Void Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 80: Gift Balance Inquiry
Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 81: Sample Of Gift Balance Inquiry Receipt
$119.00 Balance: MERCHANT COPY THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 82: Cash Transaction
Input the amount for tip on the Keypad then press [ENTER]. Receipt will print. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 83 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 84: Sample Of Cash Sale Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 85: Cash Return
Input the amount for tip on the Keypad then press [ENTER]. Receipt will print. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 86 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 87: Sample Of Cash Return Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 88: Cash Void Sale
View the transaction on the display to verify it is the AMT: 2.00 correct transaction then Press [ENTER] NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 89 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 90: Sample Of Cash Void Sale Receipt
Please visit us THANK YOU! Again soon! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 91: Cash Void Return
View the transaction on the display to verify it is AMT: 2.00 the correct transaction then Press [ENTER] NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 92 Press [ENTER] for no receipt. ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 93: Sample Of Cash Void Return Receipt
THANK YOU! Please visit us Please visit us Again soon! Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 94: Commercial Cards
Continue to next step if tax amount was entered or skip to Step #9 if tax amount was bypassed. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 95 ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to print the second receipt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 96: Function Option
Terminal will print the Default Report. Stop. 5.2 Batch 5.2.1 Batch Close NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 97 When Applicable, signature and check images will upload before batching. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 98 Incl. Cash Back 5.00 ==================================== Records: Overall: 56.95 End of Report NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 99: Force Batch
The terminal will contact the host processor and print a batch report. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 100 Batch Number: 1234 Total Records =75 Overall =30080.00 End of Report ......NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 101: Review
************5454 Press [CANCEL] to go back Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 102: Find
************5454 Press [CANCEL] to go back. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 103: Counter Tip
The customer should give the receipt back to the cashier along with their credit/debit card. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 104: Sample Of Counter Tip Receipt
$_______.___ Total Amt: $_______.___ THANK YOU! Please visit us Again soon! NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 105: Tip Adjust
Enter the invoice No. then press [ENTER] to find ENTER INVOICE #: the transaction. ___________________ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 106 Current tip is displayed in the first line New Rate: Input new tip Amount then press [ENTER]. 0.00 NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 107 Press [ENTER] for accept tip. ENTR=YES, CANC=NO Press [CANCEL] to cancel transaction. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 108: Reprint
Enter Trans #: Enter the transaction number then press [ENTER]. ______________________ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 109 FOUND!” and backs to Step 2. The requested receipt will print. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 110: Menu Option
Press [CANCEL] to return to the Idle Prompt. CREDIT SALE Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 111: Main Menu Options
System Settings Fraud Control, etc. Communications Configure communication parameters and settings. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 112: Reports
This type of report will print daily totals only. Totals Only NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 113: Default Report
3. History Report 4. Display Trans. Press [1] to select Default Report Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 114: Current Report
If Clerk/Server mode is enabled, terminal prompts all or specific clerk/server. Refer to Step 5. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 115 3. FORCED 4. RETURN Press the number corresponding with your selection. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 116 Press [ENTER] default report Keep your current Press [CANCEL] default setting Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 117 Void Sale Void Return Void Forced Open Tab Closed Tab Continue Tab NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 118 Overall: 601.13 End of Report ------------------------------- ........ Condensed Report Short Report NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 119 601.13 End of Report Totals Only Report ------------------------------- ........ Journal Report NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 120 Condensed Report for Credit only sorted by Server ID in Restaurant NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 121: History Report
3. DEBIT OR, Press the number corresponding with your 4. EBT selection. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 122 [ENTER] to select. 4. FORCED Press the number corresponding with your selection Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 123 Overall: 2018.87 Incl. Cash Back 470.00 ******************************* End of Report ------------------------------- NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 124: Display Transactions
3. DEBIT Press the number corresponding with your 4. EBT selection. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 125 You will be prompted to enter the last four Number digits of the card number. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 126: Tip Report
3. MasterCard Press the number corresponding with your 4. AMEX selection NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 127 Keep your current Press [CANCEL] default setting The report will print. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 128 CASH TIPS: $____.__ TIP OUTS: $____.__ End of Report -------------------------------- ........ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 129: File System Report
EDC types. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 130: Merchant Settings
 Additional Prompts ESCRIPTION  Set Cash EDC  Clerk/Server Name NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 131: Authorizations
Press [1] to access Authorization 3. Edit Header 4. Edit Trailer NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 132 3. Pswd Protected Press the number corresponding with your selection. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 133: Card Types
Press the number corresponding with your card type is enabled and a selection. ‘-‘indicates disabled. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 134: Debit Prompt: 1
1. OFF 2. ON Press [2] to turn Debit Prompt ON. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 135: Security Settings
Terminal POS terminal password defaults to the current date (MMDDYYYY). This password changes daily. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 136 REENTER PASSWORD **************** Re-enter the NEW password then press [ENTER]. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 137: Batch
1. Always Enabled 2. Pswd Protected Press [2] for Password Protected. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 138 Chapter 6 How to Set the POS terminal NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 139: Security Card
Scroll to select the option then press [ENTER]. 3. All Digits 4. Display Account Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 140: Card Manual Entry
Scroll to select the option then press [ENTER]. 2. Always Enabled 3. Pswd Protected Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 141: Edit Header/Trailer
Press [ENTER] to Save Changes Press [CANCEL] to Abort Changes Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 142: Set Batch Time
AUTO BATCH:1 1. OFF 2. ON Select the auto batch mode. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 143 [ENTER] “Auto Batch” is not supported by Host. NO AUTOBATCH Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 144: Additional Prompts
3. Cashback Prompt Press [1] to select Clerk ID mode. 4. Table Mode NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 145 When all of the clerk names have been entered, press [CANCEL] to accept the entered names. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 146: Invoice Mode
If there are transactions in the database, they must be batched out before Invoice Mode can be accessed. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 147 If Auto was selected, enter the starting invoice number then press [ENTER]. _____________________ Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 148: Cashback Prompt
Press [1] to disable CashBack Prompt. 2. ON Press [2] to enable CashBack Prompt. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 149: Table Mode
Press [1] to disable Table Mode. 2. ON Press [2] to enable Table Mode. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 150: Guest No. Mode
Press [1] to disable Guest No. Mode. 2. ON Press [2] to enable Guest No. Mode. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 151: Set Cash Edc
2. WITHOUT CASH Press [2] to Set EDC Without Cash Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 152: Clerk/Server Name
ENTER CLERK ID: Enter the new Clerk ID then press [ENTER]. _____________________ Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 153: Operation Settings
 Halo Setup ESCRIPTION  Print Setup  Receipt Print  Peripherals NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 154: No Paper Mode
Press [ENTER] to complete ENTR=YES, CANC=NO Press [CANCEL] to abort Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 155: Buzzer Setup
1. OFF 2. ON Press [2] to enable the buzzer. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 156: Operation Mode
Press [ENTER] to accept the change. ENTR=YES, CANC=NO Press [CANCEL] to cancel. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 157: Battery Saver
[sec] Enter the idle time in seconds then press [ENTER]. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 158: Disclaimer Setup
1. OFF 2. ON Press the number corresponding with your selection. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 159: Halo Setup
Press the number corresponding with your selection. If the Halo was disabled, continue with step 7. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 160 Input the new maximum amount for cash back then New Rate: press [ENTER]. 0.00 Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 161: Print Setup
Input the Password and press [ENTER]. The terminal prints out the setup report. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 162 Chngd character is a plus, the VOID/FRCD transaction type has been disabled by the Merchant. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 163 Limit for sign 20.00 Limit for recpt 30.00 Receipt option Both Cust&Merch Receipt NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 164 System Options menu. TIP 2: Mode: TIP 3: Mode: Tip Edit Confirm NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 165: Receipt Print
3. DEBIT Press the number corresponding with your 4. EBT selection. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 166 Press [1] to disable PrePrint. 1. OFF 2. ON Press [2] to enable PrePrint. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 167: Peripherals
Press [1] to disable External Card Reader. 2. ON Press [2] to enable External Card Reader. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 168: Host Settings
 Print EDC Setup ESCRIPTION  Host URL Params  AutoDial Setup NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 169: Host Paramerters
Input the Bank ID if [3] is selected in Step 4. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 170: Host Phones
[ENTER]. Or Press the number corresponding with your selection. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 171: Phone Number
Phone Number: 123456 Input the phone number and press [ENTER] Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 172: Baud Rate
[ENTER]. Or Press the number 3. 2400 corresponding with your selection. 4. 4800 Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 173: Print Edc Setup
4. Host URL Params Printing… The terminal prints EDC Setup. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 174 Notice the AutoBatch Hosts do AutoDial Ends: 23:00 Interval: not have AutoDial settings. Retries: NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 175: Host Url Params
Input the desired URL address or port number then _____________________ press [ENTER]. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 176: Autodial Setup: 2
Enter the stop time then press [ENTER]. Stop time HH:MM is usually one hour after start time. _____________________ NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 177 Enter the AutoDial time interval then press [ENTER]. The interval is usually 5 minutes. _____________________ Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 178: System Settings
ESCRIPTION  PIN Pad Settings  Keys Injection  App Management NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 179: Date/Time Setup
Verify the time is now correct and press [CANCEL] Press [ENTER] to save the modified time. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 180: Batch Number
Press [ENTER] to complete ARE YOU SURE? ENTR=YES, CANC=NO Press [CANCEL] to cancel Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 181: Working Mode
 Tip Options  Fraud Control ESCRIPTION  Local Dup Check NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 182: Tip Options
 Tip 3 ESCRIPTION  Edit Confirm  Print TIP Setup NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 183 Press [2] to enable tips for the selected EDC type. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 184 [ALPHA] key for the required letter. Modify the tip name then press [ENTER]. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 185 The defaule tip amount will automatically be added to all transactions. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 186 Press [1] to disable Edit Confirm. 2. ON Press [2] to enable Edit Confirm. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 187 6. Edit Confirm Tip Setup report. 7. Print TIP Setup Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 188 Delivery Preset Amount: 5.00 Tip 3: Mode: Tip Edit Confirm -------------------------------- NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 189: Fraud Control Option
 AVS on Card Not Present  Card Present ESCRIPTION  V-Code NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 190: Main Menu
Press [3] for Working Mode. 3. Working Mode 4. Pre-Dial Call NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 191 2. Address 3. Zip AVS Prompt. 4. Address & Zip Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 192 Press the number that corresponds to the desired 2. Address 3. Zip AVS Prompt. 4. Address&Zip Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 193 Press the number that corresponds to the desired 2. Address 3. Zip AVS Prompt. 4. Address&Zip Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 194 2. Always Yes Card Present option. 3. Ask, if manual Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 195 2. On if manual 3. OnIfMan.CrdNotPrsnt CVV Mode. 4. On always Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 196: Local Dup Check
Press [1] to disable Dup Check. 2. ON Press [2] to enable Dup Check. STOP. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 197: Predial Call
[ENTER]. Or Press the number 3. Predial on SWIPE corresponding with your selection. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 198: Database
SELECT PMT TYPE: 1. CREDIT 2. GIFT Select an EDC Type 3. Cash NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 199 Press [ENTER] to complete Void #0001? ENTR=YES, CANC=NO Press [CANCEL] to cancel. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 200: Post Auth
Terminal goes to the normal steps for Post Auth transaction. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 201: Clear Database
Press [ENTER] to clear all databases. A short report listing the cleared databases is printed. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 202: Clear Reversal
Press [ENTER] to continue ENTR=YES, CANC=NO Press [CANCEL] to cancel Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 203: Pin Pad Settings
1. Internal PIN pad Press [1] to select the Internal PIN pad. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 204: Keys Injection
After setup the baud rate then start session to communication. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 205: Application Management
2. App Update 3. Configuration corresponding with your selection. 4. Terminal SN Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 206: Activate
Then POS terminal displays communication messages, “Activated” or error messages. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 207: App Update
If there is no available download, the Terminal No Available DownLD displays “No Available DownLD”. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 208 After finish downloading, the terminal displays “Success” and lists the downloaded applications. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 209: Configuration
Set Server URL and press [ENTER]. SERVER PORT ▋ Set Server Port and press [ENTER]. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 210: Terminal Sn
Screen displays the SN and other information of the terminal. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 211: App Info
Screen displays the App Info of each application. Press [ENTER] to go forward. Stop. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 212: Communications
Note: For S90 WiFi, the first option is WiFi not Wireless. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 213: Backup Communication
Dial. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 214: Maximum Tries
Max Tries Input the New tries # and press [ENTER] Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 215: Connect Timeout
Terminal displays the current timeout setting. Connect Timeout Input the New timeout and press [ENTER] Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 216: Receive Timeout
Terminal displays the current timeout setting. Receive Timeout Input the New timeout and press [ENTER] Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 217: Dial Parameters
If in Step 2, [2] Dialing Prefix is selected, enter the Dialing Prefix. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 218: Wireless Parameters
4. Provision _____________________ APN: Input the desired value then press [ENTER]. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 219: User Name
_____________________ User Name: Input the desired value then press [ENTER]. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 220: Password
4. Provision _____________________ Password: Input the desired value then press [ENTER]. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 221: Provision
Programming completed The Screen will display Programming completed successfully! successfully. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 222: Wifi Parameters
Use the [▲] & [▼] keys or Press number keys to 2. WAP2-AES set the security type. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 223: Password
Password menu. _____________________ Password: Input the desired value then press [ENTER]. Stop NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 224: Appendix A Receipts
Low amount percent for tip Tip Amt: 90% 180.00  High amount percent for tip NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 225 Editable. [Merchant Settings –Edit Header – Header Text 5] Header Line #5 NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 226 Reference Number (do not print if null)  Auth. Code: 000000 Approval Code NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 227 Advertisement 1  Advertisement 2  Advertisement 3 ...... Halving Line NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 228: Debit Card Receipts Template
Print this line if it is a duplicated transaction. MERCHANT COPY NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 229 Print this line if it is a duplicated transaction. CUSTOMER COPY NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 230 Advertisement 1  Advertisement 2  Advertisement 3 ...... Halving Line NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 231: Ebt Card Receipts Template
APP DUPE  Print this line if it is a duplicated transaction. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 232 Approval Code. If no auth code, the value will be null. Response: APPROVED OFFLINE  Print “APPROVED OFFLINE” in demo mode NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 233 Advertisement 1  Advertisement 2  Advertisement 3 ...... Halving Line NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 234: Gift Card Receipts Template
Print this line if it is a duplicated transaction. MERCHANT COPY NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 235 Approval Code Response: APPROVED OFFLINE  Print “APPROVED OFFLINE” in demo mode NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 236 Advertisement 1  Advertisement 2  Advertisement 3 ...... Halving Line NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 237: Cash Receipts Template
(Cash Void receipt is the same, except transaction type is “Cash Void”.) NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 238 Editable. [Merchant Settings – Edit Trailer – Trailer Text 5] ........ Halving Line NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 239: Appendix B - Troubleshooting
The screen contrast might be too high or too low causing the terminal to appear to be powered off. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 240 WARNING, a file system Rebuild erases all transaction data and restarts the application. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 241 Error message when printing Print Setup Report. Press ENTER to continue printing the report. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 242 The maximum number of stored (offline) transactions has been reached. Upload and batch the current transactions. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 243 The display is a line of black boxes. The terminal needs to be repaired. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 244: Communication Errors
Turn Battery Saver off (see Menu Option).  Try processing a transaction on a landline. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 245: Printer Troubleshooting
2. Cut the paper at a slight angle with the left edge feeding first. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 246: Gprs Troubleshooting
There is an error in the POS Terminal Management System. The SSL and/or HTTPS library files are missing. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 247: Download Troubleshooting
If not, there is a problem with either the cable or the phone jack. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 248: Appendix C Glossary
Host computer for verification and processing. S90: terminal from PAX SMA: Speed Messaging Application NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 249 CID – American Express and Discover Card. CVC – MasterCard; CVV – Visa. NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.
Page 250 MPS_S90_V1.00.00 User Manual NOTE: This document is CONFIDENTIAL and must be used exclusively for the operation of PAX programs. It may not be duplicated, published, or disclosed without PAX prior written permission.

PAX S90 User Manual

Table of Contents

Revision History

1 General Information

2 Pax S90 Pos Terminal Overview

3 How to Load Application

4 How to Do Transaction

5 Function Option

6 Menu Option

Appendix A Receipts

Appendix B - Troubleshooting

Appendix C Glossary

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PAX S90

Summary of Contents for PAX S90
