7.2 Wiring topology

The two common wiring topologies in use are the star connection and the linear bus.

7.2.1 Star connection

In a star-connected topology all detectors are wired to a central point, which is usually the
control panel. No cables are required to have more than 5 cores as all the 4-20mA signal
connections are taken directly to the control panel.
The RS485 A and B signals can then all be connected together at the star point. The bus
should then be terminated at the star point with a single 110 ohm termination resistor.
The length of each arm of the star may not exceed 750 metres.

7.2.2 Linear bus connection

In a bus-connected topology all IRmax are wired to a linear arrangement, usually with the
control panel at one end. A classic situation is a tunnel installation, with IRmax installed at
regular intervals (see Diagram 9 below).
To wire the installation, two 110 ohm-terminating resistors should be fitted: one at each
physical end of the bus.
As the 4-20mA signals cannot be shared, an additional conductor is required on each wiring
hop. If none of the 4-20mA signals are being used, then only four conductors are required.

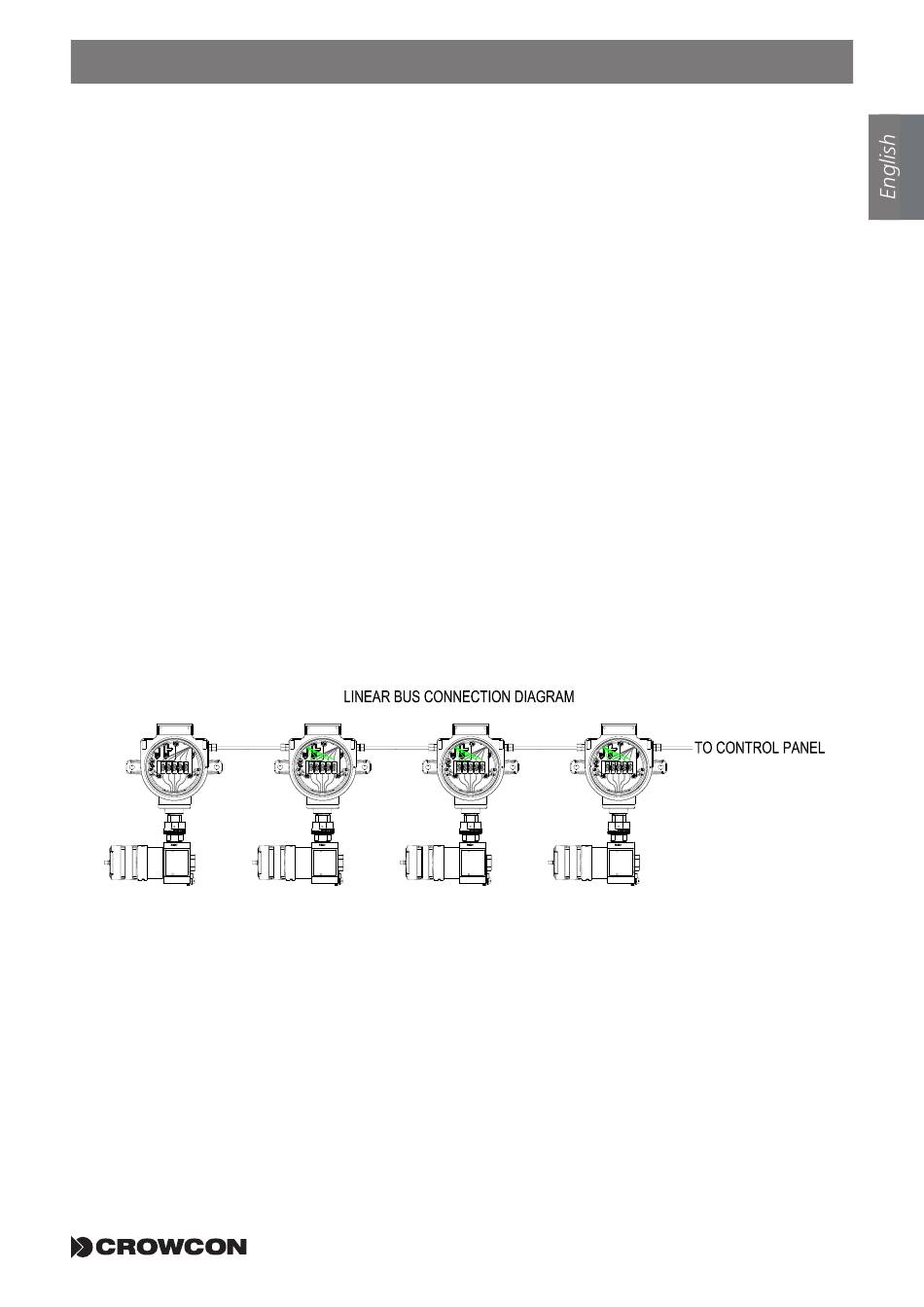

Diagram 9
