Gas-Pro
Multi-Gas Monitor (For NATO)
User & Operator Manual
M007
Issue 1 July 2021
Click here for
navigation
instructions
Click here for
contents
list

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gas-Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Crowcon Gas-Pro

Summary of Contents for Crowcon Gas-Pro

  • Page 1 Gas-Pro Multi-Gas Monitor (For NATO) User & Operator Manual Click here for navigation instructions Click here for contents list M007 Issue 1 July 2021...

  • Page 2: Navigation Instructions

    NAVIGATION INSTRUCTIONS Contents The symbols in the left-hand margin of each page of the manual will enable you to carry out the following functions: Contents Click on this button to display the Contents page. Click on this button to display the previous page. Click on this button to display the next page.
  • Page 3 1.2 Gas-Pro orientation ........
  • Page 4 2.6 Gas-Pro functions ........
  • Page 5 2.9 Alarm Mute Function .........37 3.
  • Page 6 10. Appendices ......... . 52 10.1 Sensors .

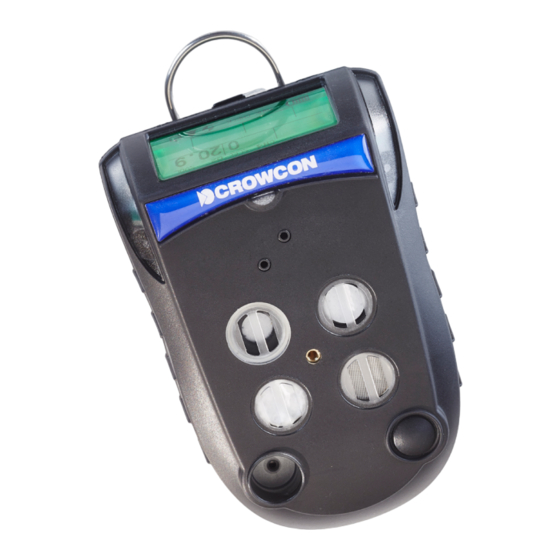

  • Page 7 Gas-Pro is a portable monitor capable of detecting up to 5 gases in a compact and wearable design featuring an optional internal pump. Focused on users and fleet managers alike, Gas-Pro offers application focused solutions giving greater operating time and reduced set up time.

  • Page 8: Safety Information

    Contents • Gas-Pro is a hazardous area certified gas detector and as such must be operated and maintained in strict accordance with the instructions, warnings and label information included in the manual. Gas-Pro must be operated within the limitations stated.
  • Page 9 • Gas-Pro may be used in Zones 1 and 2, for Group llA, llB and llC gases and vapours and for Contents Temperature Classes T1, T2, T3 and T4. (See Certification labels below). • Certification labels The certification marking is as follows: Ex db ia IIC T4 Gb -20°C ≤...
  • Page 10 ATEX Contents EN 60079-0: 2012 + A11: 2013 Explosive atmospheres – Part 0: Equipment – General requirements EN 60079-1:2014 Explosive atmospheres – Part 1: Equipment protection by flameproof enclosures “d” EN 60079-11: 2012 Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i” Prologue II 2 G Ex db ia IIC T4 Gb Tamb -20°C to +55°C Set-up...

  • Page 11: Box Contents

    Should the unit be deep discharged, the charging indication will not be shown until the unit has been charging for 1 hour and the operator button has been pressed. Troubleshooting When on and charging a warning will advise the user to turn the Gas-Pro off after 12 hours or remove from charge. Appendices Store the battery in a full state and recharge at least once every 3 months.

  • Page 12: Prior To Use

    Before use, the Gas-Pro should always be checked for any signs of physical damage. Gas-Pro uses a Lithium Ion (Li-ion) battery pack and should arrive with sufficient charge to be used straight out the box. However, if this is the first time of use, you may need to charge the battery to...
  • Page 13 À Accessories When off, to show the Gas-Pro is charging, both LEDs within the alarm bars will flash red and will change Specification to green once fully charged. This state will continue until the trickle charge is complete. Charging will then terminate showing no indication.
  • Page 14 A flow plate can be used for a number of applications including pumped operation (remote sampling), manual gas test/calibration or for manual sampling. If the pumped flow plate is attached before turning the Gas-Pro on and the Gas-Pro includes a pump, a pump test will commence as part of the start up process (see...

  • Page 15: Quick View

    1.5 Quick view Contents Even when the detector is off, users can display details about the configuration of the Gas-Pro by momentarily pressing the operator button for one audible blip. The LED to the left of the display will flash red once and the Quick view screen shown in Figure 6 below will be displayed for 10 seconds.

  • Page 16: Operation

    2.2 Turn on Prologue In ‘clean air’, turn on the Gas-Pro by holding down the operator button for 3 audible blips. The Gas- Pro will warm up, going through a series of automatic processes as follows: Set-up Firstly a test screen pattern will be generated.
  • Page 17 If the Gas-Pro is configured for regular Gas Testing (Bump Test), the date of the last Gas Test will Contents also be shown (for more information on Gas Testing, see Gas testing and calibration page 38). Figure 8: Gas test due screen...
  • Page 18 Accessories Specification Troubleshooting An Autozero should not be performed unless the Gas-Pro is in clean air. Press the operator button to enter the Autozero mode, otherwise the countdown will progress and will not perform a zero. Appendices If the operator button is not pressed the countdown will complete and this function will be skipped.
  • Page 19 Oxygen levels are typically 0.04% and 20.9% respectively. In zero mode, these gases will actually run an ‘offset’ zero. PC software The Gas-Pro is now ready for use. EN60079-29 part 1 has been harmonised under the ATEX directive (2014/34/EU). Therefore Accessories...
  • Page 20 If the Gas-Pro is configured for Bump functionality, the Bump/Pump prompt will be displayed if a flow plate is attached and a gas bump test is due or the Gas-Pro is placed in a Q-Test module during normal use (see...

  • Page 21: Detecting Gas

    2.4.1 Diffusion monitoring If you wish to monitor gases in ambient air for dangerous levels, the Gas-Pro can be worn by either clipping the strong alligator clip to clothing/overalls in the breathing zone or through the use of a chest harness.

  • Page 22: Pumped Mode

    Bump/Pump functionality page sample from spaces prior to entry. The pump capacity in the Gas-Pro is 0.5l/m and will draw a sample of PC software gas from 30m within 80 seconds. Please note the expected losses for some gases below. Please allow at least 3 seconds per meter of hose used.
  • Page 23 2.5.1 Alarm Mute Settings The NATO version of Gas Pro has the option of being able to Mute Gas Alarms. There are 3 Alarm Modes which can be selected from the User Menu on the Gas-Pro. They are: Prologue •...
  • Page 24 2.5.3 Instantaneous alarm The Gas-Pro will go into alarm immediately if the level of any of the gases it is configured to detect Prologue become outside acceptable limits. A minimum and maximum acceptable level is set for oxygen, for most other gases the Gas-Pro will go into alarm state 1 or 2 according to which level has been exceeded.
  • Page 25 STEL values will be cleared. If Gas-Pro is switched off for more than 8hrs the TWA Resume function will not be available in the start- up sequence and Gas-Pro will clear the TWA, STEL and peak gas values when powered back on.

  • Page 26: Accepting And Clearing Alarms

    Alarm can be turned off only when gas has returned to acceptable levels has returned to acceptable levels Set-up While in alarm, the Gas-Pro will continue to record levels of all the gases being monitored. Operation 2.5.6 Sensor types Gas testing The Gas-Pro can be fitted with the following sensor types: •...
  • Page 27 While in saver mode and the subsequent stabilise time, the gas level displayed on the LCD screen will indicate over range. If the alarm is so severe as to cause a sensor over-range the Gas-Pro should have a gas test to ensure no lasting damage has occurred.
  • Page 28 Isobutylene by changing the correction factor in the PID sensor type options Details of how to change the VOC correction factor can be found in Portables Pro user manual Gas-Pro fitted with a PID sensor may require periodic cleaning and calibration of the sensor to ensure correct performance in normal use.

  • Page 29: Gas-Pro Functions

    2.6 Gas-Pro functions Contents The following can be selected from the Gas-Pro user menu: Home screen Manual zero Time weighted average (TWA) review Pre-entry check Prologue Peak review Set-up Flammable Correction factor. Only available for pellistors Settings menu Operation Full Mute (vibrator, LEDs and sounder muted) Gas testing Vibration Only (LEDs &...
  • Page 30 Contents 2.6.3 Manual zero This function should only be carried out in ‘clean air’ and allows the Gas-Pro to be zeroed at any time. Certain operations will only take place if the Gas-Pro has been recently zeroed . For example, if configured to do so, Gas-Pro will progress to a calibration after failing a gas test if the unit has been manually zeroed in the last 15 minutes.
  • Page 31 2.6.6.1 Starting a Pre-entry check Contents If the Gas-Pro is in alarm, the Pre-entry check will not appear on the menu. Before you start the Pre-entry check, ensure you are ready to start the test (i.e. any flow plate, sampling probe or hand aspirator are fitted to the Gas-Pro as required).
  • Page 32 Operation affect the TWA calculations. Gas testing The Gas-Pro will remain in the peak stage for a maximum of 5 minutes. When accessing the Peak Review screen the peak displayed will be the gas peak (trough for O ) seen in the selected time period; this will Maintenance include gas levels seen during any PECs in the time period.
  • Page 33 Select this option from the Menu Screen to see the highest level of each gas detected during the session. The menu offers the choice to display the peak gas level since the Gas-Pro was powered , that occurred during the last 8 hours , or during the last 12 hours .
  • Page 34 Gas-Pro will create an event when the user is changed allowing traceability of the user. Set-up 2.6.9.2 Pump setting This function, which is only present if the Gas-Pro has an internal pump, allows the user to turn the Operation pump on or off. Gas testing Double click the operator button to select the function.

  • Page 35: Additional Features

    2.7 Shut down Contents To turn the Gas-Pro off, press and hold the operator button. A 4 second countdown will start. Hold the button down until the countdown has finished and the Gas-Pro will shut down. If you release the button before the countdown has finished, the Gas-Pro will resume operation.

  • Page 36: Data And Event Logging

    Threshold levels can be set using Portables Pro, extending log capabilities. The data log interval is set as part of the Gas-Pro configuration and can be adjusted using Portables Pro. Event logging records significant events occurring during Gas-Pro operation.
  • Page 37 2.9 Alarm Mute Function Contents The NATO version of Gas-Pro includes the option of muting the alarms, to prevent unwanted noise in the event that gas is detected. Use Mute modes sparingly and re-enable outputs as and when it may be safe to do so.

  • Page 38: Gas Testing And Calibration

    Organisational specific Health and Safety regulations should be adhered to, and a number of flexible and simple solutions are available. Gas-Pro offers two types of bump test. A speedy bump test which is a gas test to the first alarm level Prologue and smart bump test, a gas test to a specified level of test gas.

  • Page 39: Bump Test Functionality

    Troubleshooting on the Gas-Pro screen during start up. If Gas-Pro is turned off and on again within 24 hours of the gas test, the Gas-Pro will not inform the Appendices user of a need for a bump test. However on applying a magnetised flow plate, or placing Gas-Pro into the Q-Test the user will be given the option to complete a gas test (or proceed to pumped operation).
  • Page 40 It is a fail if the detector does not go into alarm. Prologue 3.2.1.1 Procedure X Either place the Gas-Pro in a Q-Test module or attach a flow plate to the Gas-Pro. Set-up X Select Bump (see Bump/Pump functionality page 36).
  • Page 41 3.2.3 Calibration after bump fail Contents If any channel fails speedy bump or smart bump then Gas-Pro can be configured (via Portables Pro) to perform a ‘calibration after bump fail’ immediately after the test failure. Calibration should only be performed with appropriately accurate gas.
  • Page 42 3.4 Gas test screen flow Contents The following sequence of screen shots should be viewed with reference to the sections on ‘Speedy Bump’, ‘Smart Bump’ & ‘Calibration after bump fail‘. The screen shots show the general flow of the gas test functionality dependant upon the actual test and the decisions made.

  • Page 43: Icon Overview

    4. Icon overview Contents The table below details the icons shown during regular operation as well as warning messages. This table is intended as a quick overview please refer to specific functional sections within this manual for further details. Icon Description Icon Description...

  • Page 44: Service And Maintenance

    Ensure maintenance, service and calibration are carried out in accordance with the procedures in the manual and only by trained personnel. For further service or maintenance, contact your local Crowcon agent or regional office, for details reference the ‘Contacts’ section of the manual.

  • Page 45: Pc Interface And Portables Pro

    Specification collected and viewed. 6.2 PC interface cable Troubleshooting Portables Pro allows the download and viewing of data and event logs from the Gas-Pro using an Appendices interface cable via the USB socket on a laptop or desktop computer. Warranty Please see Portables Pro instructions for details.

  • Page 46: Part Number Description

    CH0102 Charging lead CH0103 USB communications lead (not powered) CH0104 USB communication and power lead CH0105 Gas-Pro charger cradle (no power) Prologue CH0106 Vehicle charging adaptor (use with CH0102) CH0107 5 Way multi-region power supply Set-up (Note: only for use with charging leads with serial numbers greater than Wxxxxx)

  • Page 47: Specification

    Please refer to sensor limitations section for further information on sensors  Sensors may be degraded at the higher temperatures subject to individual sensor specifications  Dependant upon sensor configuration  Gas-Pro’s fitted with a PID sensor are rated to IP65 only Exit...

  • Page 48: Troubleshooting

    9. Troubleshooting Contents 9.1 Pump test failure In the event of a pump test failure, check the following: • Ensure a pumped flow plate was used for the test • Remove the flow plate and check the gasket for damage (scratches, tears, etc.) •...

  • Page 49: Fault Descriptions

    9.2.1 Fault Descriptions Contents Fault Symtom/Error Icon Cause Action codes Message 0 or 9 Instrument won’t Flat Battery. Recharge battery. switch on. No confidence Function disabled. Reconfigure with PC beep/flash. software. 26 - 30, Gas Reading with Zero drifted. Zero the instrument in Prologue 58 - 62 no gas present.
  • Page 50 Display shows Battery depleted. Recharge battery. empty battery symbol during startup. Switched on and Unit full and on charge Remove Gas-Pro from Prologue fully charged. for over 12 hrs. charge. Cannot switch off. Instrument configured Move to clean air then Set-up for “No switch off in...

  • Page 51: Fault Codes

    Contents Fault Symtom/Error Icon Cause Action codes Message Bump Test Fail The monitor has not The monitor needs Lock. been gas tested in the calibration. defined period and the gas test lock function has been activated. Battery low Battery Low (about 20 Exit the hazardous area to 30 minutes before as soon as possible and...
  • Page 52 10. Appendices Contents 10.1 Sensors 10.1.1 Toxic Sensor part no Range CO/H SS0312 0-500/0-100PPM SS0205 0-2000PPM SS0302 0-2000PPM (H Filtered) Prologue SS0206 0-100PPM Set-up SS0404 0-1000PPM Operation 10.1.2 Flammable Pellistor Sensors Flammable sensors MUST only be used with the PCB P/N as detailed below in the ‘PCB P/N Gas testing Suitability”...

  • Page 53: Sensor Limitations

    Persistent exposure to high levels of toxic gas can shorten the life of toxic sensors. Toxic sensors may also be cross-sensitive to gases other than their specific target gas, and hence the presence of other gases may cause the sensor to respond. If unsure, contact Crowcon or your local agent. Prologue Use of high power radio transmitters in close proximity to the instrument may exceed RFI immunity levels and cause erroneous indications.

  • Page 54: Charging And Run Times

    Run time is equal to the expected operating time following a full charge/discharge cycle. Prologue Should the Gas-Pro completely discharge, charge within 3 days. This will maintain the internal clock. Storage life with a fully charged battery is 8 weeks, reducing to 6.5 weeks after 500 charge cycles.
  • Page 55 10.4 Contacts Contents Crowcon Detection Instruments Ltd, 172 Brook Drive, Milton Park, Abingdon, Oxfordshire OX14 4SD Tel: +44 (0) 1235 557700 Fax: +44 (0) 1235 557749 Email: sales@crowcon.com www.crowcon.com Prologue Set-up Operation Gas testing Maintenance PC software Accessories Specification Troubleshooting...

  • Page 56: Warranty

    Warranty Limitation of Liability: Except where prohibited by law, Crowcon will not be liable for any loss or damage arising from the Crowcon product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.
