DATA DOWNLOAD
To transfer the readings stored in the RHT10 to the PC:

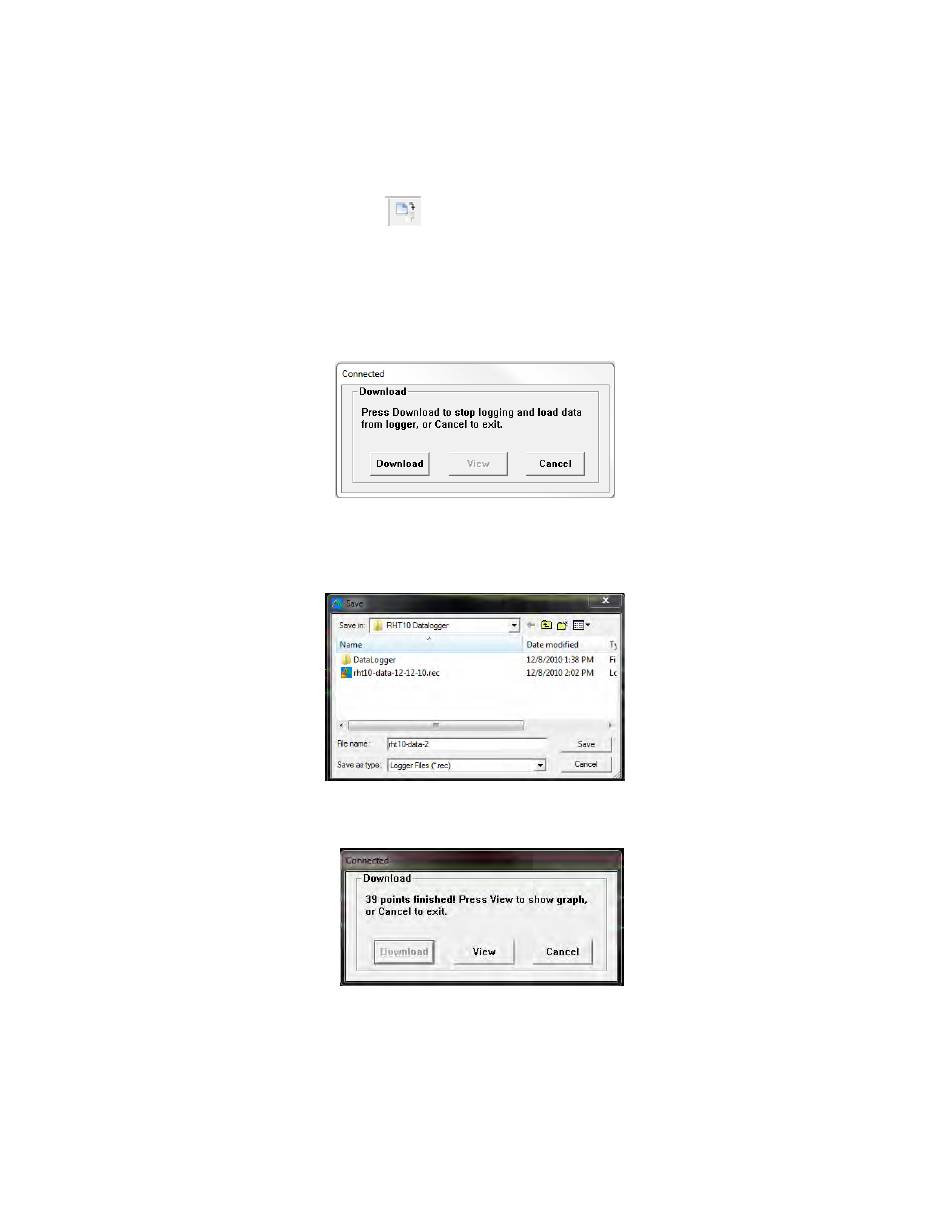

If the readings are successfully transferred, the VIEW screen and the SAVE screen (both shown
below) will appear. In the SAVE screen, name the file and save it to a convenient location. The
data is saved as an .rec file for use in this program only. At a later time, the user can select
SAVE‐AS and save the data as an Excel, Text, or Bitmap file (explained in next section).
In the screen below press VIEW to see the data graphically. If there are no readings currently
stored in the RHT10, the program will let the user know via a warning screen.
Find Quality Products Online at:
1.
Connect the RHT10 to the same USB port used when the RHT10 was initialized.
2.
Open the graphing software program if it is not still running.
3.
Click the Download icon (1
pull‐down menu
4.
The Window shown below will appear. Press DOWNLOAD to begin transferring
readings
GlobalTestSupply
www.
st
on the left) or select Data Download from the LINK
8
RHT10 HW_SW-en-US_V5.6.2 6/16
