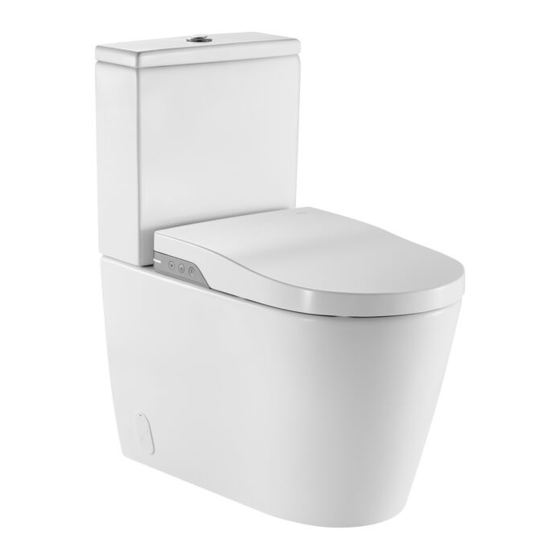

IN-WASH® INSPIRA SMART TOILET
CLOSE COUPLED BACK TO WALL (4*)
Installation Instructions
- Before installation, read this installation manual thoroughly and the included safety precautions.
Parts must be installed according to the instructions.
- Rain water or grey water is not suitable to operate this equipment. The In-Wash® shower toilet
may only be operated with normal drinking water.
- Do not damage electrical connection components.
- The recommended water supply pressure is 150 kPa to 500 kPa max. Operate equipment within
the recommended water pressure.
- Water supply temperature must be between 10 - 30ºC. Ensure the correct water temperature is
maintained.
- Do not use a water supply hose other than the one provided with this product.
- Make sure that this product is correctly earthed to ground. (If the product is not earth-connected,
there is a risk of electric shock).
- Dual check valve must be fitted before the cistern stop.
Please note that this product has an Integral High Hazard Backflow Prevention device
which complies with the requirements of AS 2845.2 and AS/NZS 3500.1, clause 12.2.3 '

Technical information

Power Supply
Power Wattage
IP Rating
Note: Any electrical work connected on this project must be installed
by qualified personnel, in accordance with AS/NZS 3000 Wiring Rules.
Certification
Watermark
WELS
RCM
Plumbers, please ensure a copy of the installation
instructions is left with the end user for future reference
Plumbers, please ensure a copy of the installation
Version 1, October 2018 instructions is left with the end user for future reference
240V / 50Hz.
1700 W
IP X4
AS1172.1/AS1172.2 Certificate No. WMKA0232
4 Star, 4.5/3 litre, Average Flush 3.3 litre
2
