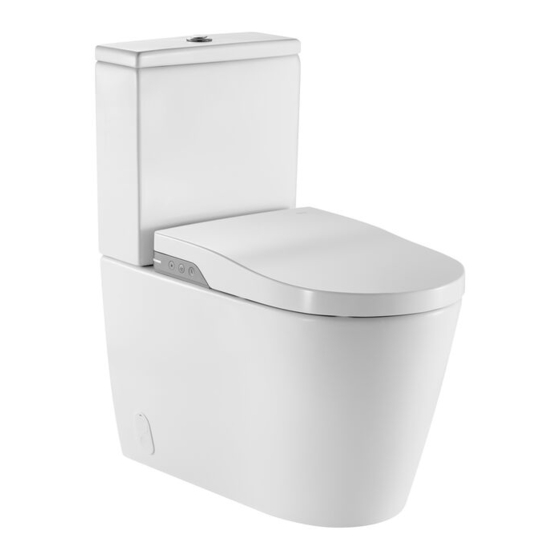

IN-WASH® INSPIRA HS
SMART TOILET FS
80307300R

Advertisement

loading
Need help?

Need help?

Do you have a question about the IN-WASH INSPIRA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roca IN-WASH INSPIRA

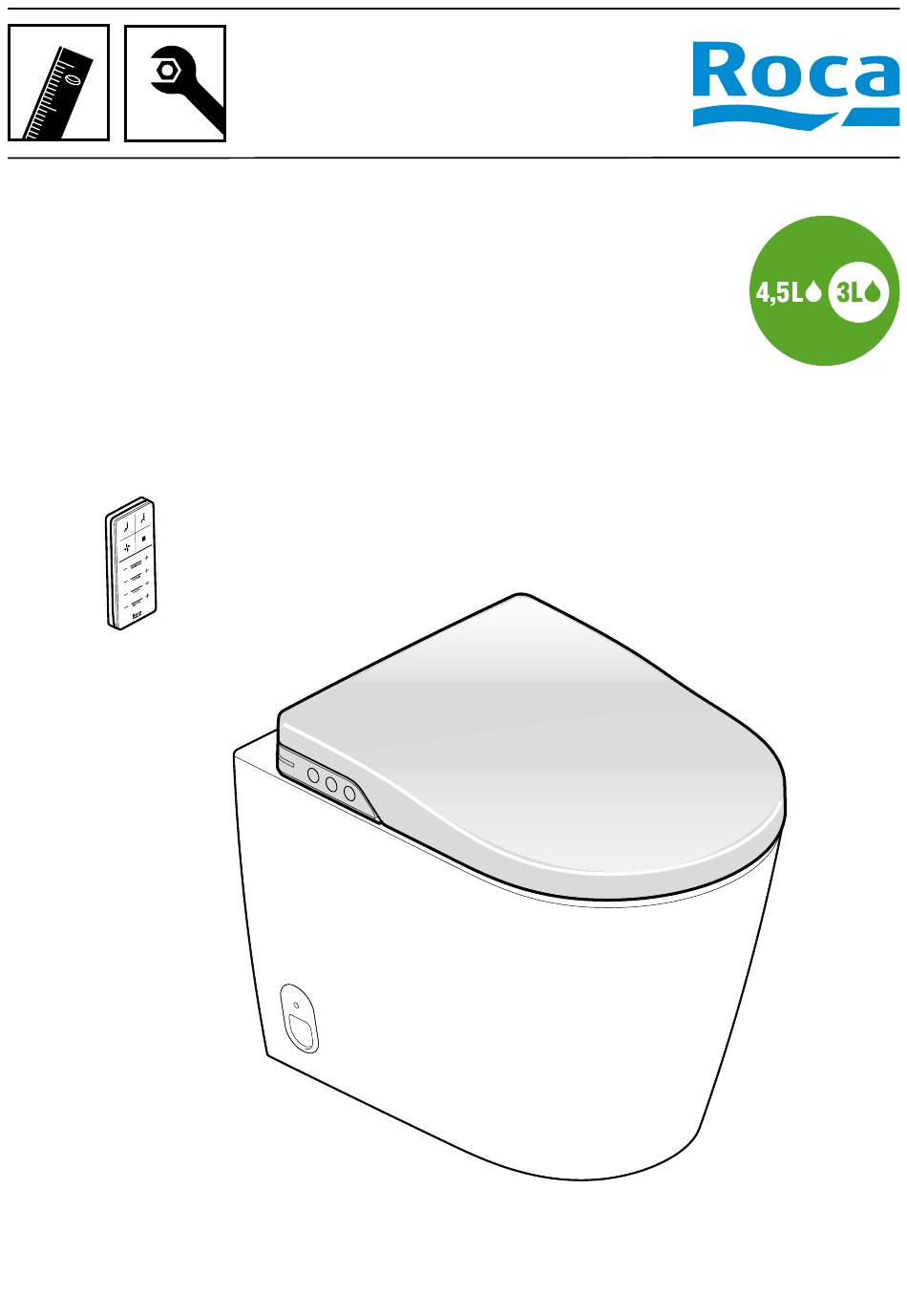

  • Page 1 IN-WASH® INSPIRA HS SMART TOILET FS 80307300R...
  • Page 2 - Before installation, read this installation manual thoroughly and the included safety precautions. Parts must be installed according to the instructions. - Rain water or grey water is not suitable to operate this equipment. The In-Wash shower toilet may only be operated with normal drinking water. - Do not damage electrical connection components.
  • Page 3 [mm] Alternative drainage connections Included Min. 125 Max. 225...
  • Page 4 1/2” H - 3/4” H...
  • Page 5 Do not use rain water. Pipes Use only potable water. Option Option 500 kPa Ø1/2” Ø1/2” Electrical Option Option 3 x 1mm L = 300 mm ØMin: 6 mm ØMax: 8,5 mm...
  • Page 6 25A lDn 0.03A 10 ó 15A According to current legislation 3 x 1mm Mandatory L Min. = 300 mm ØMin: 6 mm ØMax: 8,5 mm 240 VAC 50 Hz. 1700 W Max. The electrical installation must be protected by means of a IDn 0,03A and 25A differential switch and a magnetothermal switch of 10 or 15A.
  • Page 7 Ø12 ~200 ~360 Min. 45...
  • Page 8 L Min. = 300 mm Neutral Ground Phase Option Included Note: Dual check valve must be fitted before cistern stop.
  • Page 9 Included Note: Dual check valve must be fitted before cistern stop. Internal connection...
  • Page 14 X = 2mm X = 3mm X = 4mm Max. 1mm CR 2032 (x2) Included Optional...
  • Page 15 OPEN POWER CONNECT AUTO-TEST Max. 60 s. 120 s. 5 s. See user manual After connecting the power , you have 60 seconds to link the remote control. To link the remote control , press the Stop button on the remote control for 5 seconds. A beep will be heard and all the LEDs on the remote light up, as a signal that it is connected.
  • Page 16 See user manual Roca Sanitario, S.A. Avda. Diagonal, 513 08029 Barcelona SPAIN www.roca.com.au/...
