OPERATION AND MAINTENANCE INSTRUCTIONS

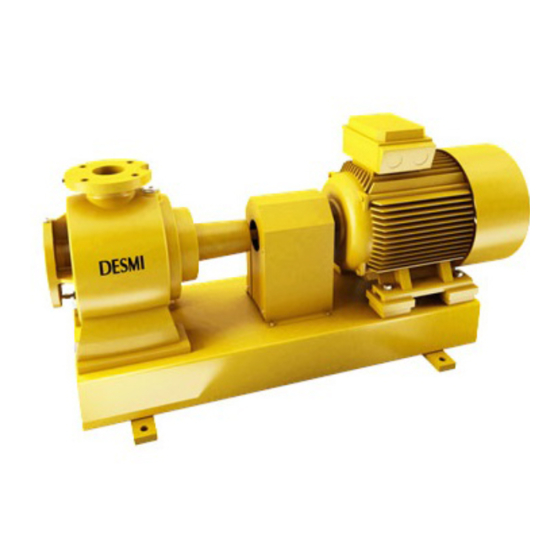

DESMI self-priming centrifugal pump
Tagholm 1 – DK-9400 Nørresundby – Denmark
Special pump nr. .................
__________________________________________________________________________________
DESMI Pumping Technology A/S
Tagholm 1
9400 Nø rresundby – Denmark
Tel: +45 96 32 81 11 Fax: +45 98 17 54 99
E-mail:
desmi@desmi.com
www.desmi.com
Monobloc design
DESMI Pumping Technology A/S
Tel.: +45 96 32 81 11
Fax: +45 98 17 54 99
E-mail:
desmi@desmi.com
Internet:
www.desmi.com
Manual:
Language:
T1517
English
TYPE SA
Revision:
E (11/20)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Desmi SA Series

Summary of Contents for Desmi SA Series

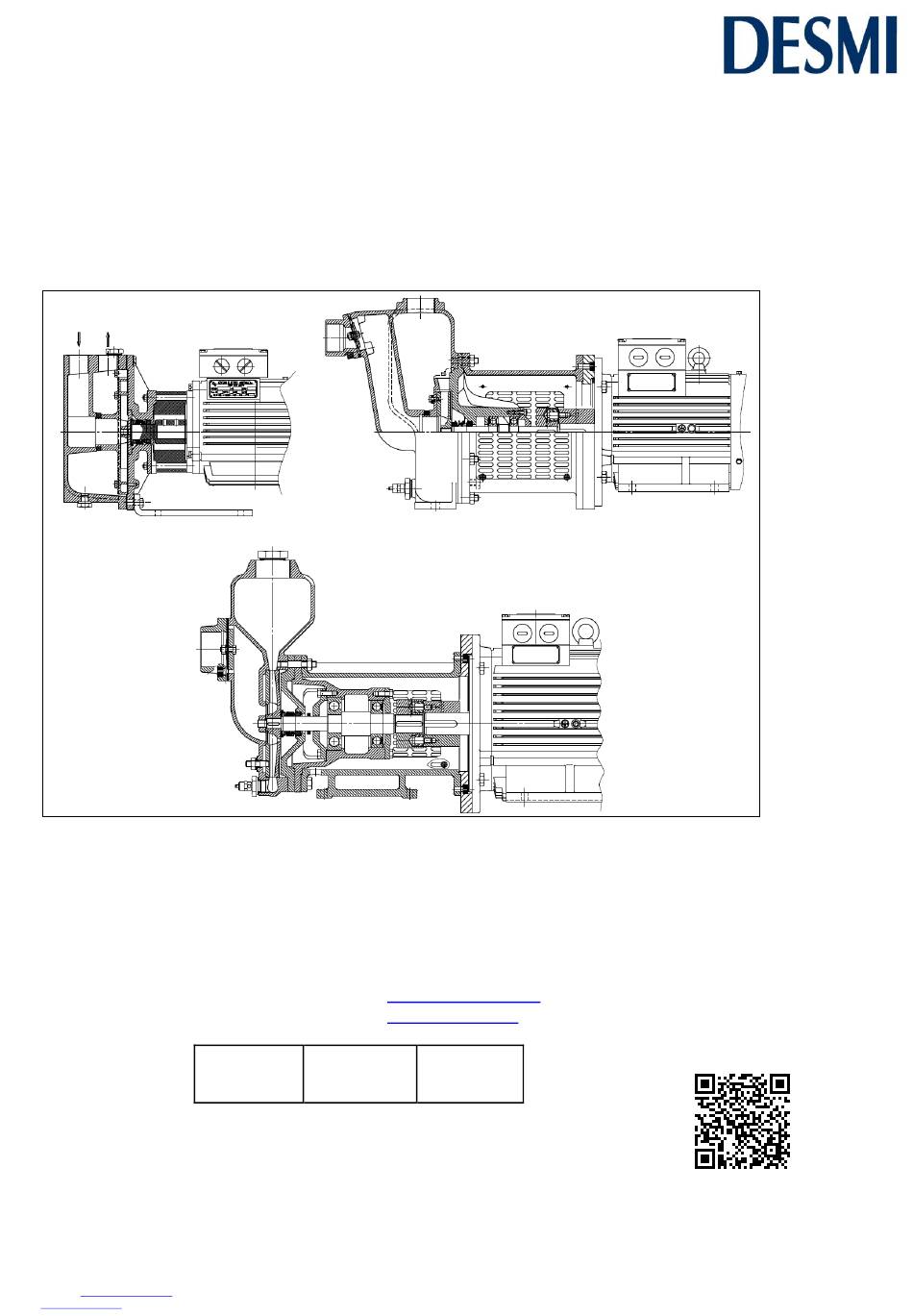

  • Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS DESMI self-priming centrifugal pump TYPE SA Monobloc design DESMI Pumping Technology A/S Tagholm 1 – DK-9400 Nørresundby – Denmark Tel.: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com Internet: www.desmi.com Manual:...
