OPERATION AND MAINTENANCE INSTRUCTIONS

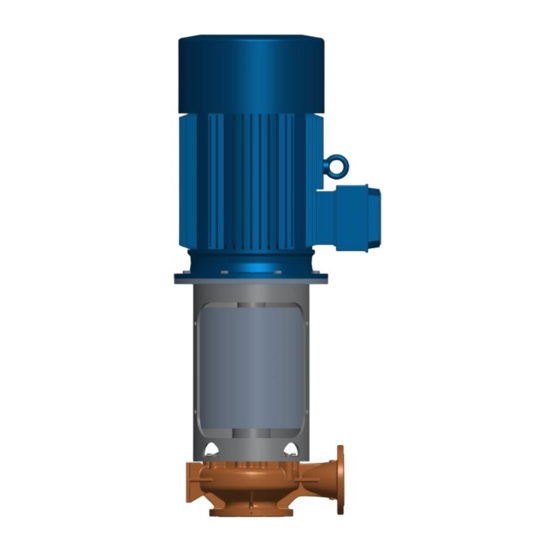

DESMI end suction centrifugal pump
Tagholm 1 – DK-9400 Nørresundby – Denmark
Special pump No. .................
__________________________________________________________________________________
DESMI Pumping Technology A/S
Tagholm 1
9400 Nø rresundby – Denmark
Tel: +45 96 32 81 11 Fax: +45 98 17 54 99
E-mail:
desmi@desmi.com
www.desmi.com
NSLH and NSLV Spacer
DESMI Pumping Technology A/S
Tel.: +45 96 32 81 11
Fax: +45 98 17 54 99
E-mail:
desmi@desmi.com
Internet:
www.desmi.com
Manual:
T1529
Language:
Revision:
English
J(07/22)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSLH and is the answer not in the manual?

Questions and answers

Related Manuals for Desmi NSLH

Summary of Contents for Desmi NSLH

  • Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS DESMI end suction centrifugal pump NSLH and NSLV Spacer DESMI Pumping Technology A/S Tagholm 1 – DK-9400 Nørresundby – Denmark Tel.: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com Internet: www.desmi.com...

  • Page 2: Table Of Contents

    15. INFORMATION RELEVANT FOR DISASSEMBLY OR DISPOSAL AT END-OF-LIFE ..........19 16. ASSEMBLY DRAWING AND SPARE PARTS LIST Ø 215/265 ................20 __________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...
  • Page 3 25. ASSEMBLY DRAWING AND SPARE PARTS LIST Ø 330/415/465 WITH INDUCER ..........29 26. DIMENSIONAL SKETCH..........................30 APPENDIX A ..............................31 __________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 4: Product Description

    The pumps are manufactured in various material combinations which appear from the type number on the name plate. See below. 2.1 EXPLANATION OF THE TYPE NUMBER All the NSLH and NSLV pumps are provided with a name plate. The type number indicated on the name plate is built up as follows: NSLHXXX-YYY-MR-Z or NSLVXXX-YYY-MR-Z XXX: Pressure branch diameter, YYY: Standard impeller diameter M: The material combination of the pump.

  • Page 5: Technical Description

    The capacity of the pump appears from the name plate on the pump. If the pump has been delivered without motor, the pump capacity is to be indicated on the plate when mounting the motor. ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark...
  • Page 6 1900 2200 4000 300-525 350-525 3500 4370 3920 6840 3630 2500 2930 5300 ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com www.desmi.com...

  • Page 7: Installation

    Where index "calc" are the values calculated by the user. At the same time none of the forces or moments may exceed the indicated figure multiplied by 1.4. 3. INSTALLATION See also: DESMI Guidelines for pump installations at: www.desmi.com/media/sd5ltlox/guidelines_uk.pdf 3.1 MOUNTING/FASTENING The pump should be mounted and fastened on a solid base plate with a flat and horizontal surface to avoid distortion.

  • Page 8: Transport/Storage

    4. TRANSPORT/STORAGE See also: DESMI Pump Storage and Preservation at: www.desmi.com/media/vqkjqh54/t1534uk.pdf The weights of the pumps in A and D combination (without motor) are stated in the following table, and the pumps are to be lifted as shown below. Weight in kg...

  • Page 9: Dismantling

    ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 10: Dismantling Shaft Seal

    ø330/415/465/525 Fit cover under bearing (26). For pumps with Lip seal in cover under bearing please read appendix A. ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 11: Fitting Water Deflector

    Insert the copper pipe (58). 6.7 SHAFT When the pump has been assembled, check that the shaft rotates freely. ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 12: Fitting Coupling

    (69). ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark...

  • Page 13: Frost Protection

    ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...
  • Page 14 1. Cavitation in pump Suction lift too high/ noise Suction line wrongly dimensioned/Liquid temperature too high ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com www.desmi.com...

  • Page 15: Inspection And Maintenance

    DRAIN HOLE FOR SHAFT SEAL ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 16: Draining The Pump

    Heavy bearing housing (combination 14): ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...
  • Page 17 ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...
  • Page 18 Texaco Multifak EP 2 Rembrandt EP 2 eller Rubens Statoil UniWay Li 62 ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com www.desmi.com...

  • Page 19: Repairs

    If the pump liquid temperature is above 80 ℃, high-temperature grease is recommended, e.g. SKF LGHP2. DESMI use SKF LGHP2 as standard. Vibration levels higher than 7 mm/s at pump bearing are considered damaging and will normally result in significantly shorter grease and/or bearing life – especially for pumps not running. Hence shorter re- greasing intervals might be required for pumps installed where external excited vibration levels can be higher than 7 mm/s.
  • Page 20 1.5 x the permissible working pressure. The test pressure is stated in the test certificate and stamped into the discharge flange of the pump. ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark...

  • Page 21: Eu & Uk Declaration Of Conformity

    14. EU & UK DECLARATION OF CONFORMITY DESMI PUMPING TECHNOLOGY A/S, hereby declare that our pumps of the NSLH and NSLV Spacer type are manufactured in conformity with the following essential safety and health requirements in the COUNCIL DIRECTIVE 2006/42/EC on machines, Annex 1.

  • Page 22: Information Relevant For Disassembly Or Disposal At End-Of-Life

    15. INFORMATION RELEVANT FOR DISASSEMBLY OR DISPOSAL AT END-OF-LIFE No damage materials are used in DESMI pumps – please refer to DESMI Green Passport (can be sent on request – contact a DESMI sales office) – i.e. common recycling companies can handle the disposal at end-of-life.

  • Page 23: Assembly Drawing And Spare Parts List Ø215/265

    107 Pipe plug 109 Set screw 110 Manometer fitting *) 84 only combination 14 ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 24: Assembly Drawing And Spare Parts List 65-265 With Inducer

    Manometer fitting Extend pipe O-ring Set screw Base frame *) 84 only combination 14 ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com www.desmi.com...

  • Page 25: Assembly Drawing And Spare Parts List 100-265 With Inducer

    *) 84 only combination 14 **) 24, 25 only be used when the motor size≥ 225 ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 26: Assembly Drawing And Spare Parts List Ø330/415/465

    109 Set screw 110 Manometer fitting *) Support disc in comb. 13. **) Option -See Appendix A ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 27: Assembly Drawing And Spare Parts List 100-330, 100-415 And 100-465 With Inducer

    111 Inducer pipe 112 O ring 113 Set screw 114 Nut 201 Base frame ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 28: Assembly Drawing And Spare Parts List 125-330 With Inducer

    112 O ring 113 Set screw 114 Nut *) Support disc in comb. 13. ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 29: Assembly Drawing And Spare Parts List Ø525

    107 Pipe plug 109 Set screw 110 Manometer fitting *) 14 Support disc in comb. 13. **) 45, 46 and 47 only in NSLH and NSLV300-525 ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 30: Assembly Drawing And Spare Parts List 300-418

    Lubricator nipple Pointed screw *) 14 Support disc in comb. 13. **) Option -See Appendix A ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 31: Assembly Drawing And Spare Parts List 350-525

    110 Manometer fitting *) 14 Support disc in comb. 13. **) Option -See Appendix A ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 32: Assembly Drawing And Spare Parts List Ø330/415/465 With Inducer

    Manometer fitting Base frame *) Support disc in comb. 13. **) Option -See Appendix A ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 33: Dimensional Sketch

    26. DIMENSIONAL SKETCH. Please require a dimensional sketch of the actual pump from DESMI ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...
  • Page 34 The lip seal kit is optional. ◼ SPARE PARTS LIST Cover under bearing 210 Lip Seal 211 O-ring ____________________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nø rresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com www.desmi.com...
