OPERATION AND MAINTENANCE INSTRUCTION
DESMI self-priming centrifugal pump
DESMI Pumping Technology A/S
Tagholm l, DK-9400 Nørresundby, Denmark
Manual:
MODULAR S-N
Tel.: +45 96 32 81 11
Fax: +45 98 17 54 99
E-mail:
desmi@desmi.com
Internet:
www.desmi.com
Language:
T1440
English
Revision:
H (11/20)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODULAR S-N Series and is the answer not in the manual?

Questions and answers

DEREK POTTER
February 25, 2025

I **** requesting the capacity of an electric 3-phase 7.5kW Desmi SA80 -70-175 bilge pump

0

Related Manuals for Desmi MODULAR S-N Series

Summary of Contents for Desmi MODULAR S-N Series

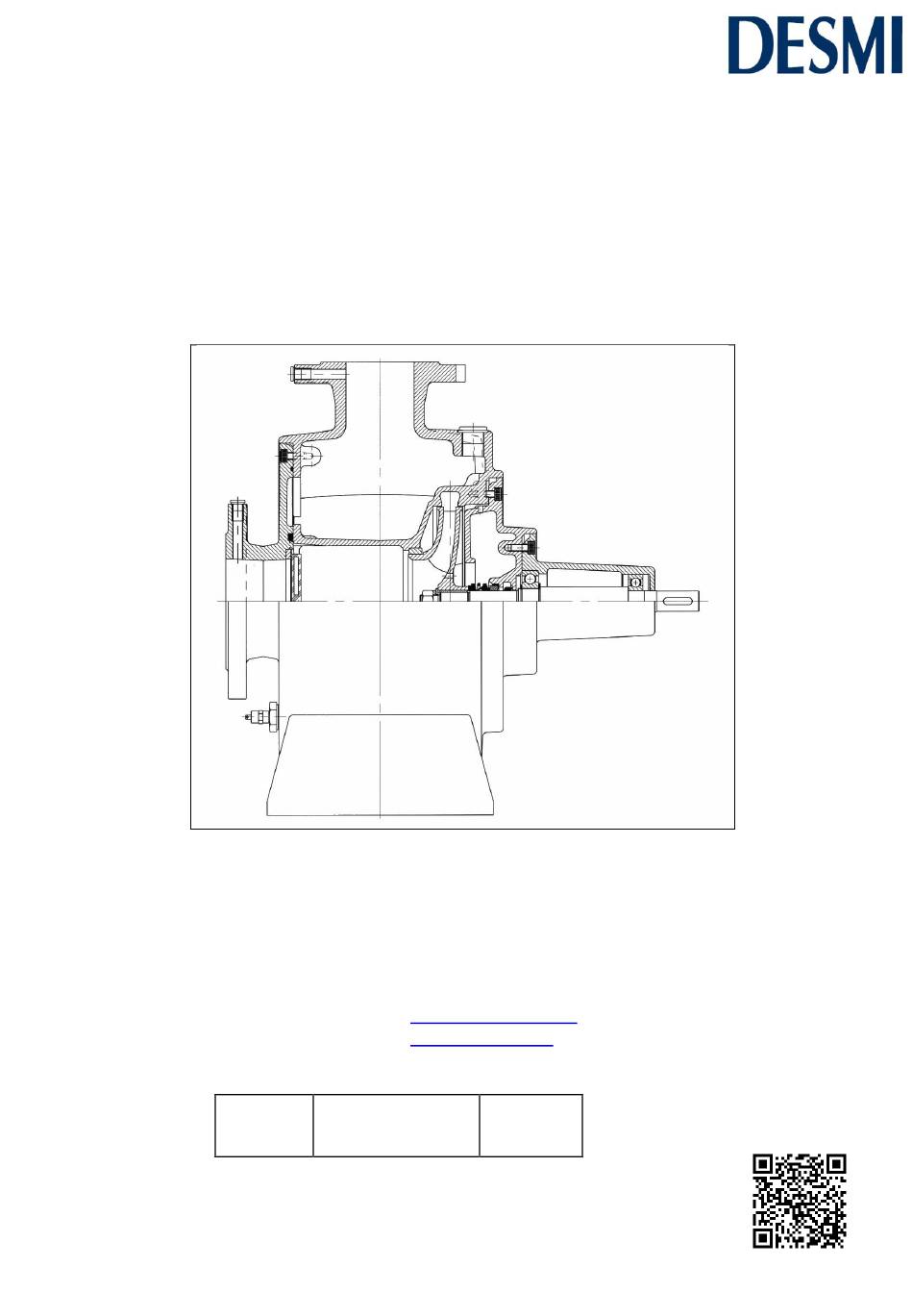

  • Page 1 OPERATION AND MAINTENANCE INSTRUCTION DESMI self-priming centrifugal pump MODULAR S-N DESMI Pumping Technology A/S Tagholm l, DK-9400 Nørresundby, Denmark Tel.: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com Internet: www.desmi.com Manual: Language: Revision: T1440 English...
